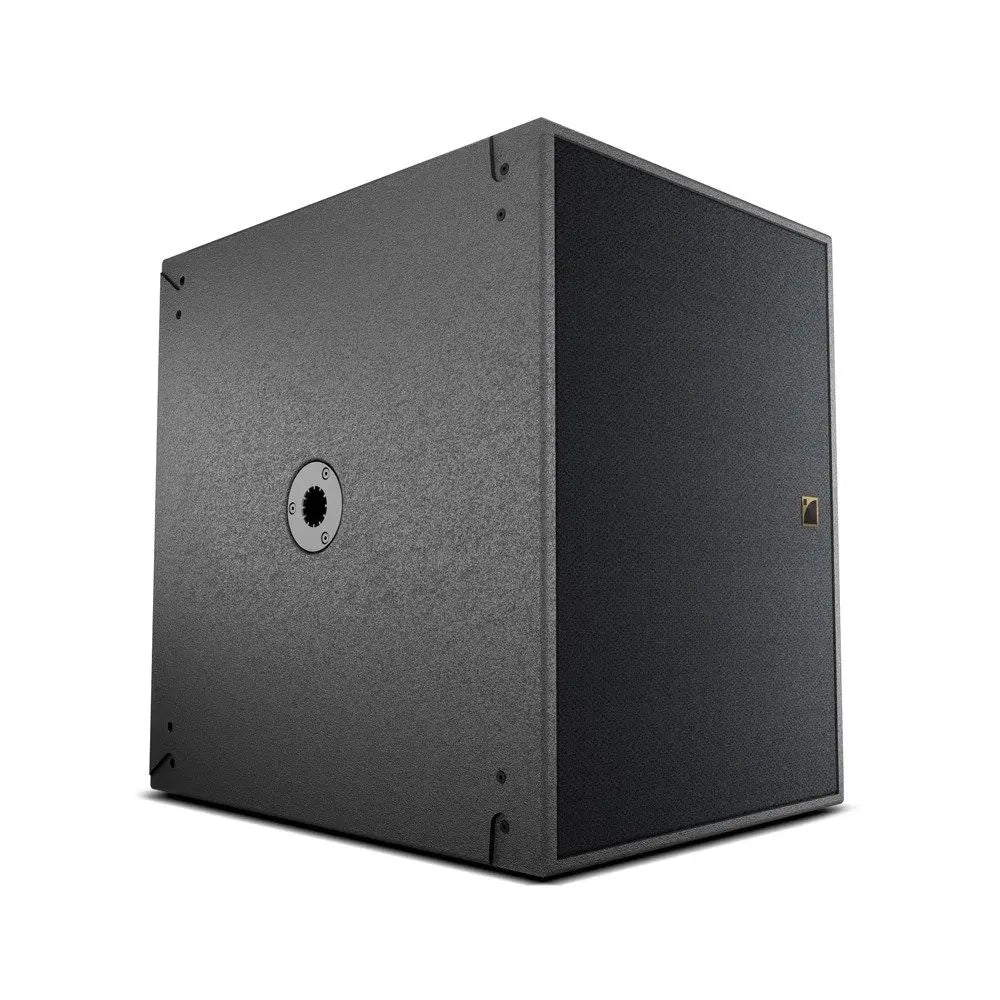

L-ACOUSTICS SB18 HIGH-POWER 18" SUBWOOFER

L-ACOUSTICS SB18 HIGH-POWER 18" SUBWOOFER

LAC-SB18

$8,295.00
$8,295.00
Sale Sold out
The SB18 is the universal subwoofer designed for modular WST® line sources and coaxial systems, lowering the combined system operating range down to 32 Hz. Its compact size and integrated rigging make it extremely well suited for flown coupled configurations with KARA®.
The association of a specifically designed 18’’ transducer with a dual bass-reflex tuned enclosure provides exceptional impact and high sensitivity, low thermal compression and reduced distortion. The vents feature a progressive profile allowing laminar airflow and reduced turbulence noise even at the very highest operating levels. These combined properties contribute to the sonic qualities of the SB18 in terms of precision and musicality.
The control and amplification of the SB18 is managed by either the LA4 or LA8 (LA-RAK) platform. The onboard DSP filtering encompasses advanced crossover functions, system EQ, and dual thermal and over-excursion protection of the transducer. The L-ACOUSTICS® amplified controllers offer the following drive modes:
  • The ‘‘standard’’ mode using SB18 as a companion to KUDO, KARA®, KIVA-KILO, ARCS® and featuring a low-pass filter at 60 Hz ([SB18_60] preset) or closely coupled to KARA®, ARCS® and XT with a low-pass filter at 100 Hz ([SB18_100] preset).
  • The ‘‘cardioid’’ mode using SB18 as a companion to KUDO, KARA®, KIVA-KILO, ARCS® and featuring a low-pass filter at 60 Hz ([SB18_60_C] preset) or closely coupled to KARA®, ARCS® and XT with a low-pass filter at 100 Hz ([SB18_100_C] preset).
Solid foundations
The performance of the SB18 enclosure depends upon the choice of preset and physical system configuration. Made of high grade Baltic birch plywood, the cabinet also features a pole mount socket for use with one XT or two KIVA enclosures.

L-Acoustics subwoofers complement systems in applications where extended bandwidth is required. All subs incorporate high excursion drivers, ultra-low vibration walls and laminar airflow L-Vents with a flared profile, resulting in dramatic reduction of port noise, maximized dynamics and power handling and an exceptional level of performance.

L-Acoustics subwoofers can be deployed in diverse modes, making them versatile enough to address any rental or fixed installation application. Engineers and sound designers can choose from standard or cardioid configurations, creating a variety of symmetric and asymmetric directivity patterns adapted to each specific design.

The Subwoofer range includes:

SB15P Dedicated to the P Series
SB15m Dedicated to the X Series and flyable with Kiva
SB18 (i/m) Companion to the X Series, flyable with ARCS WiFo and Kara(i)
K1-SB Flyable with K2 and K1 for low frequency contour or throw reinforcement
SB28 Universal subwoofer
KS28 Reference subwoofer



FEATURES

  • 32 Hz LF limit, high power handling, low distortion and thermal compression
  • Progressive vent for increased peak SPL



View full details
