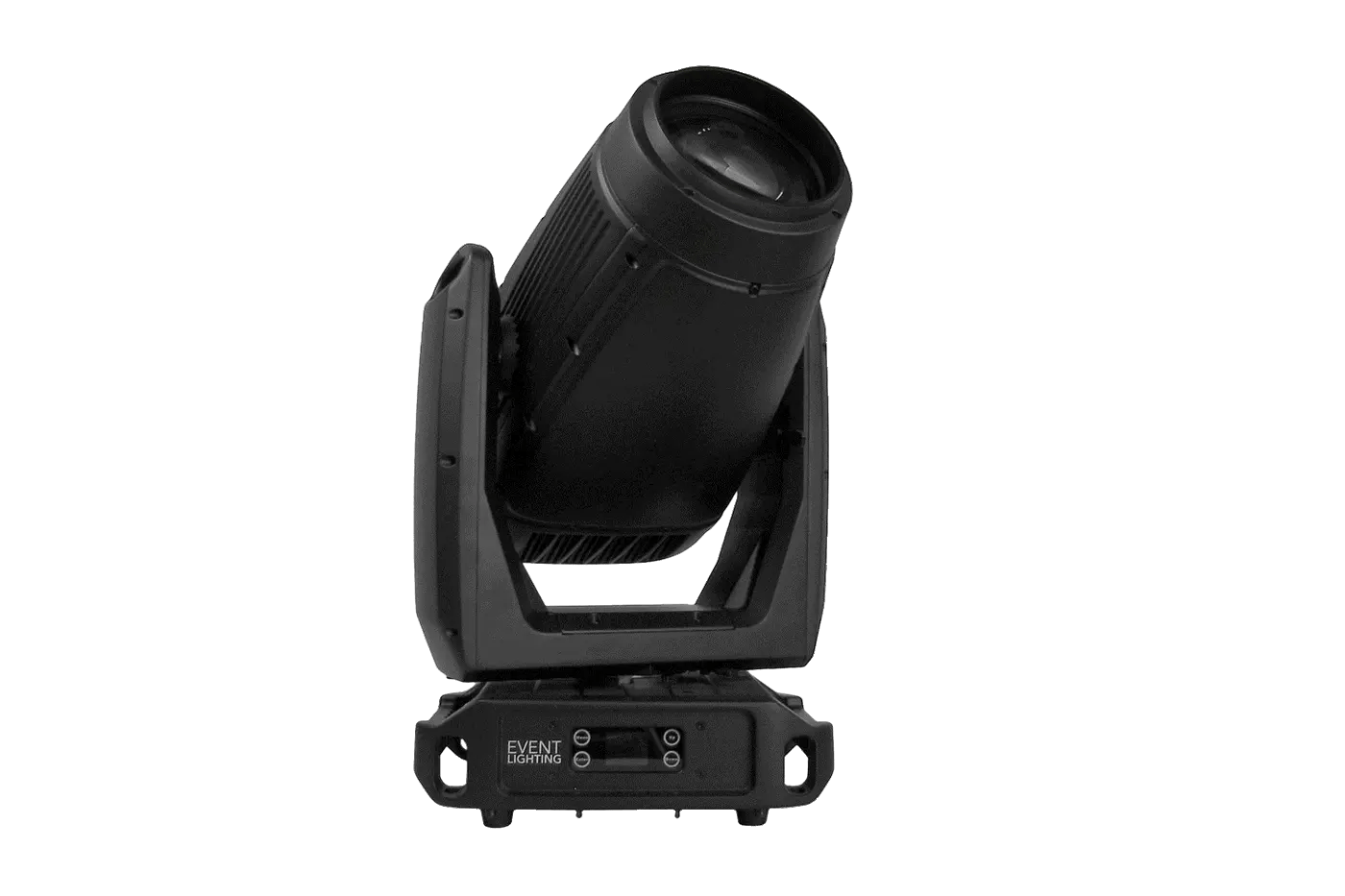

Engineered for outdoor performances, the DELUGEM800HF features a powerful 800W white LED source with an impressive 121,000 lux output at 5m (4.5° beam angle) delivering exceptional brightness with a crisp 7,000K colour temperature plus framing to sculpt the beam to create stunning visuals. Versatile colour capabilities include 5-colours colour wheel with CMY colour mixing and CTO colour correction for precise colour control. The rotating gobo wheel plus animation wheel offer extensive pattern options with indexing and shaking functions for dynamic effects. Control options include 3 and 5 pin dmx as well as RJ45 connection capabilities.
Specifications:
Photometrics
- Light Source: 800W LED Engine
- Beam Angle: 5.5°-50°
- Framing: Yes - 4 Shutters
- Output: 121,000 lux @ 5m at 4.5°
- CCT: 7,000K
- CRI: >70 / 90
- Led lifespan: > 20,000 hours
Colour
- 5 Colour + CRI
- Colour Mixing: CMY + CTO
Gobos
- Static: 8 + Open
- Rotating: 7 + Open
- Animation wheel
- Gobo Shaking: Yes
- Gobo Indexing: Yes
Effects
- Dimming: 0~100%
- Strobe: 1 - 25 Hz
- Zoom: Motorised 4.5° to 50°
- Prism(1): 4-Facet prism, indexing
- Prism(2): 4-Facet prism, indexing
- Frost: Yes
- Iris: Yes
Movement
- 16 bit resolution
- Auto repositioning
- Pan: 540°
- Tilt: 260°
Power
- Max power consumption: 910W
- Input Voltage: 100~240V AC, 50/60Hz
- Connection: True1 in/out
Control
- Control Protocol: DMX512, RDM, Art -Net, sACN
- DMX Channels: 23 / 32S / 32F / 42

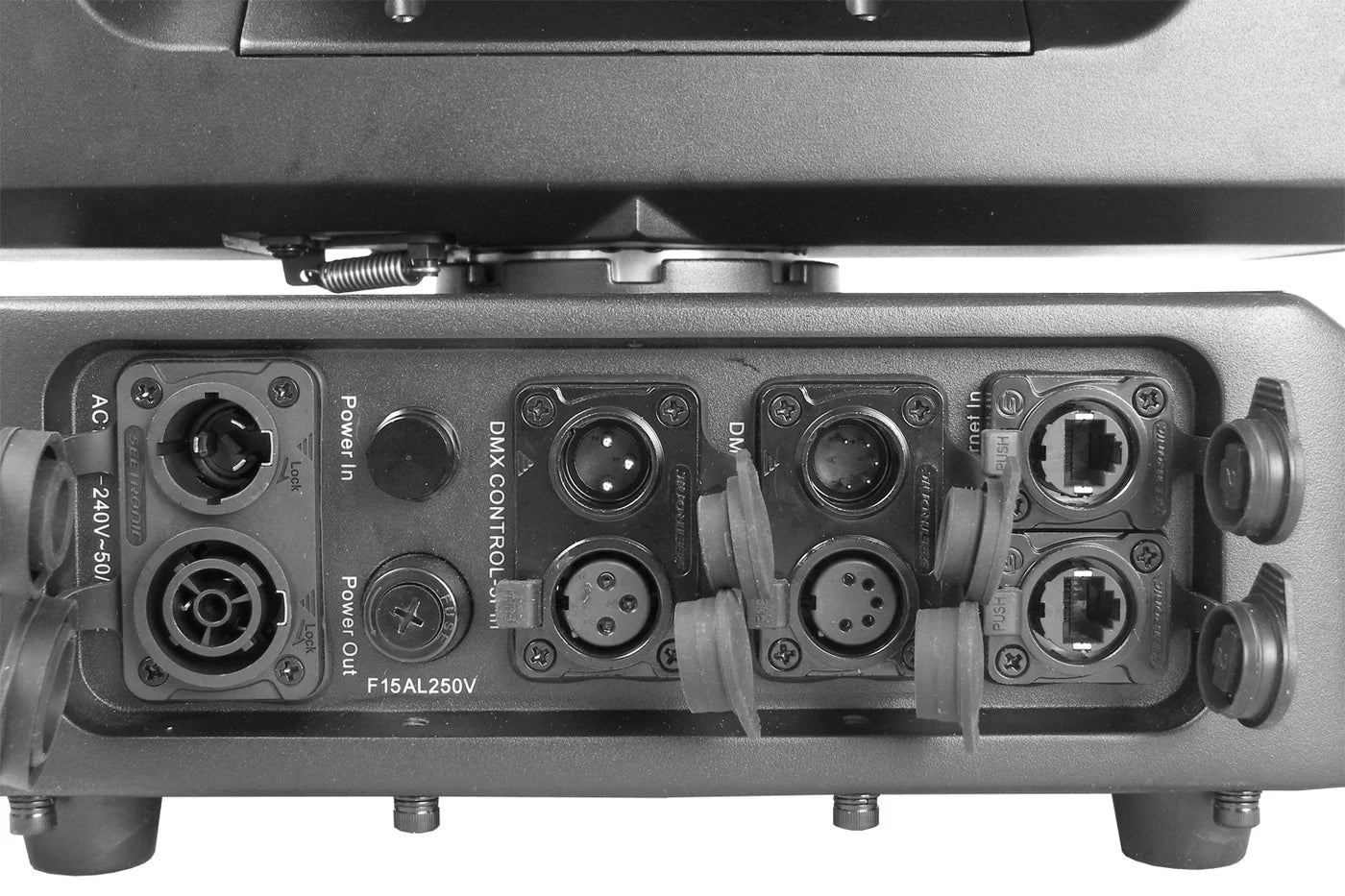

- Interface: 3-pin/5-pin XLR in / out, RJ45 in / out
- Display: LCD control panel with 4 touch buttons
Housing
- Materials: ABS & Steel, matte black finish
- IP rating: IP65
- Dimensions: 358.2 x 239.8 x 658mm / 14.1" x 9.4" x 25.9"
- Net Weight: 29 kg / 63 lbs 14.9 oz
Warranty: 3 Years
