dBTechnologies
DVX DM28
DVX DM28
SKU:DVX DM 28
Regular price
$3,968.00
Regular price
Sale price
$3,968.00
Unit price
/
per
Couldn't load pickup availability

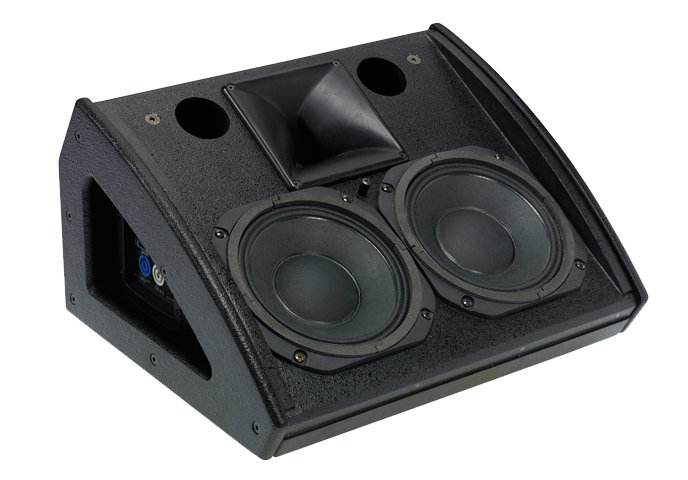

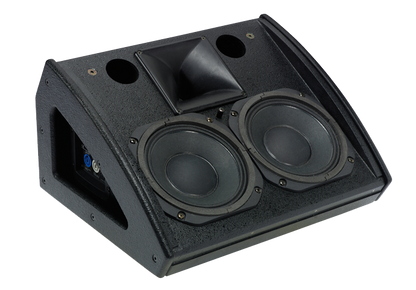

The DVX DM28 excels at rendering speech and vocals. Users’ search for natural response, dynamic balance, and high SPL in a compact, inconspicuous package ends with this stage monitor. The ultra low-profile enclosure sports two 8“ neodymium woofers with large 2.5“ voice coils that go about their business of rendering signals with impressive precision.
Technical Data
Speaker Type
2-Way Active Stage Monitor
Acoustical data
Frequency Response [-10dB]
60 - 20.000 Hz
Frequency Response [+/- 3dB]
70 - 19.000 Hz
Max SPL
130 dB
HF
1 "
Type HF
Neodymium Compression Driver
Voice Coil HF
Titanium 1.75 "
Directivity
90x60/40 °
Horn
Aysmmterical
LF
2x8 "
Type LF
Neodymium
Voice Coil LF
2.5 "
Amplifier
Amp Technology
Digipro®
Amp Class
Class D
Power RMS
750 W
Peak Power
1500 W
Cooling
Convection
Processor
Controller
DSP 24 Bit/48 kHz
System Presets
Flat, Monitor
Limiter
RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF
1600 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex plywood
Housing Design
Low Profile Multifunctional
Angles Up
30, 60 °
Width
480 mm (19.2 in)
Height
265 mm (10.6 in)
Depth
418 mm (16.72 in)
Weight
14 kg (30.86 lbs)
