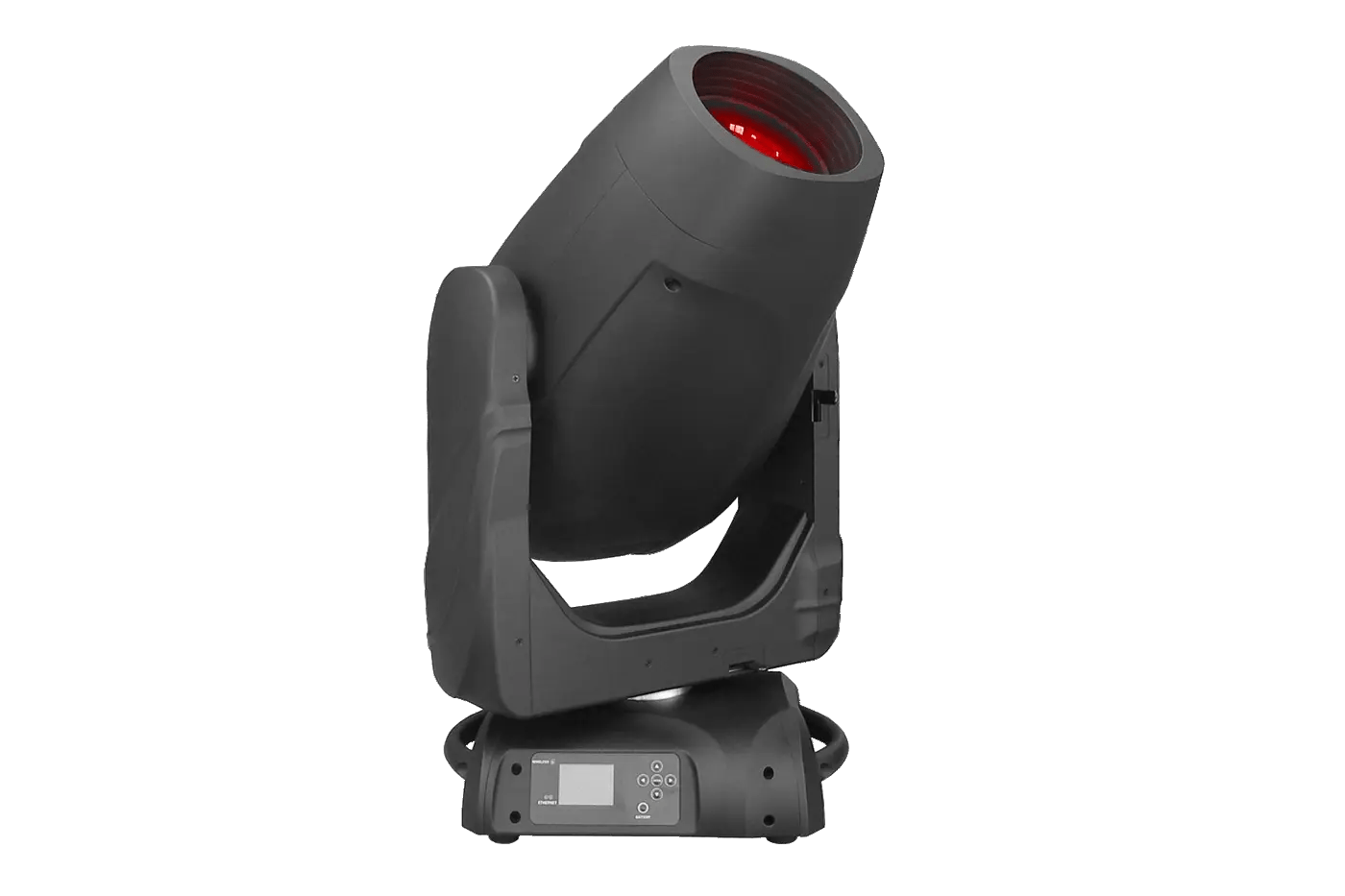

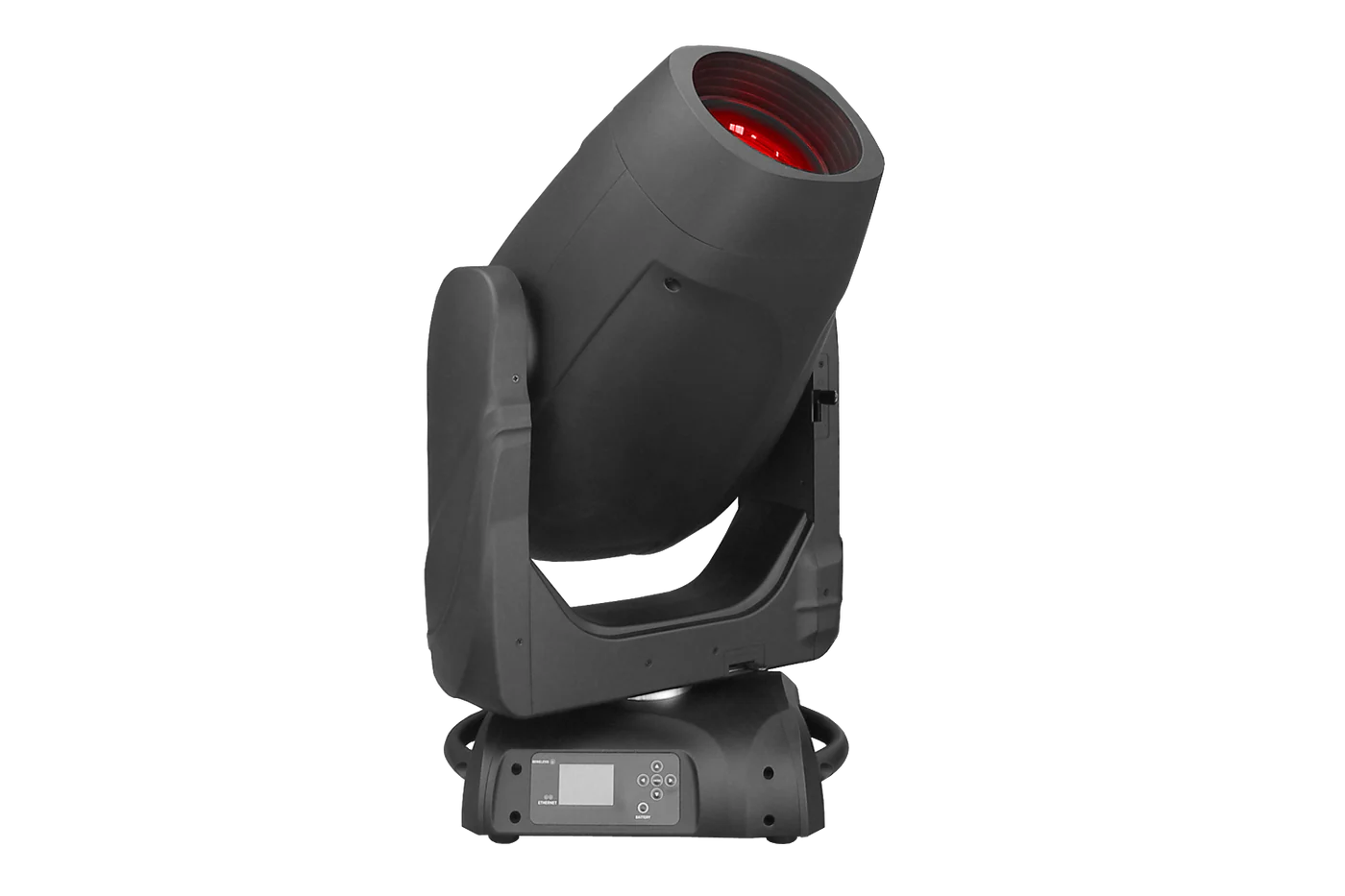

HAVOCH925F - 925W LED Hybrid Moving Head with Framing

The Event Lighting HAVOCH925F is a our most powerful LED Moving Head Hybrid designed for a versatile lighting experience. This single 925W white LED engine powerfully illuminates any space, delivering an engaging light show with 8 + open colours, 8 + open static gobos and 7 + open rotating gobos.

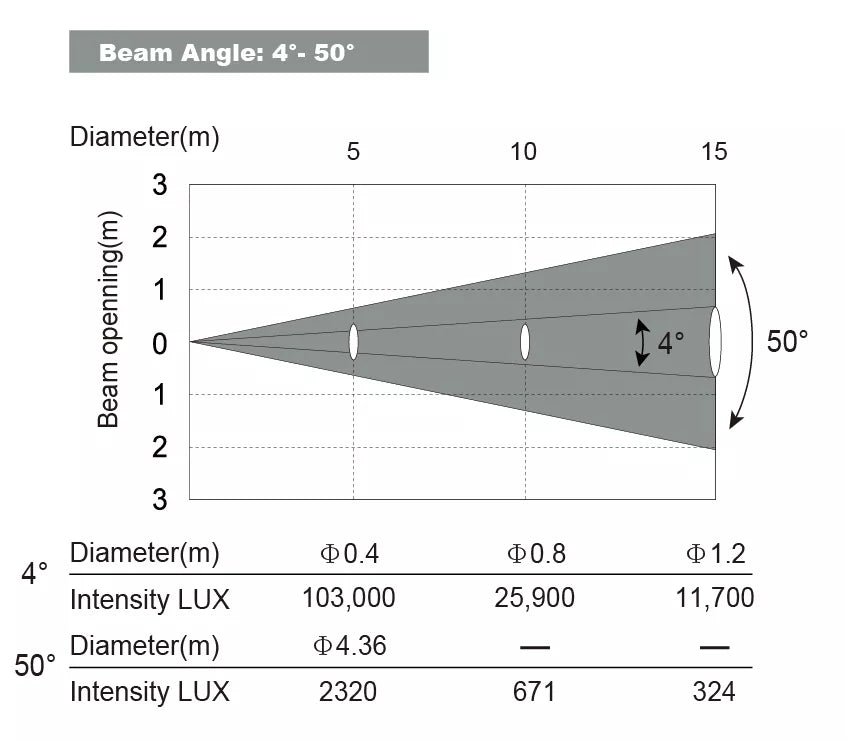

The motorised zoom can adjust the beam angle between 4° to 50°, shining a powerful 103,000 lux at 5 metres (4°), you can effortlessly tailor the coverage to suit any venue or stage.

With flexible operational modes including DMX, auto, and sound active, navigation is intuitive via the 2.4" colour LCD control panel with battery backup. Upgradeable via DMX, the HAVOCH925F ensures your lighting capabilities stay cutting-edge. Crafted with durability in mind, the matte black ABS and steel housing contains a multi-sensor thermostat, ensuring efficient cooling in a robust and reliable form-factor.

The HAVOCH925F comes with True1 in/out, 3/5 pin XLR in/out, wireless option available.

Specifications:

Photometrics

• Light Source: 925w LED White
• Beam Angle: 4°-50°
• Output: 103,000 lux @ 5m at 4°
• Colour Temperature: 7,700K
• LED lifespan: 20,000 hours

Colour

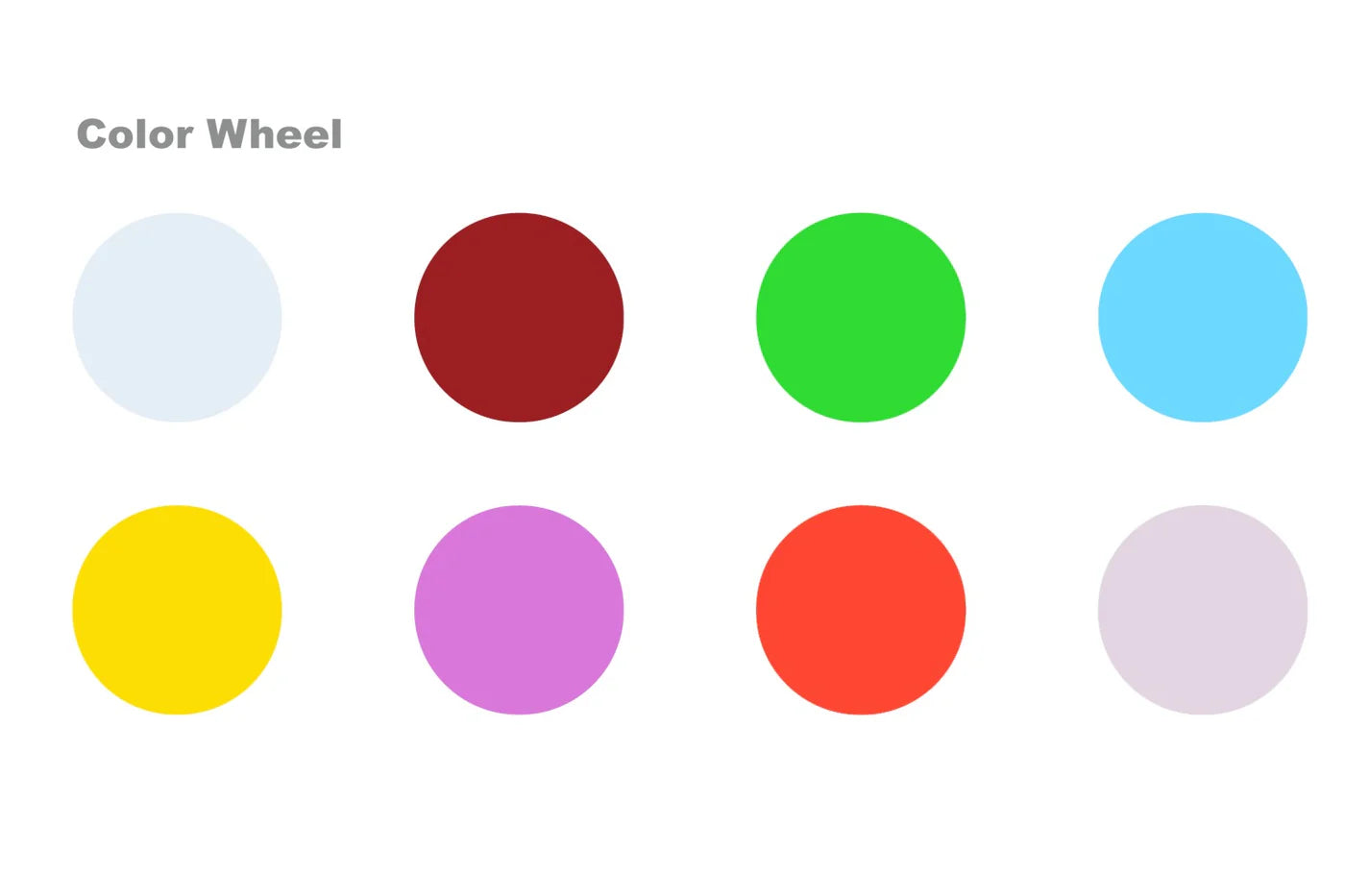

• 8 Colours + Open
• Linear CMY+CTO

Gobos

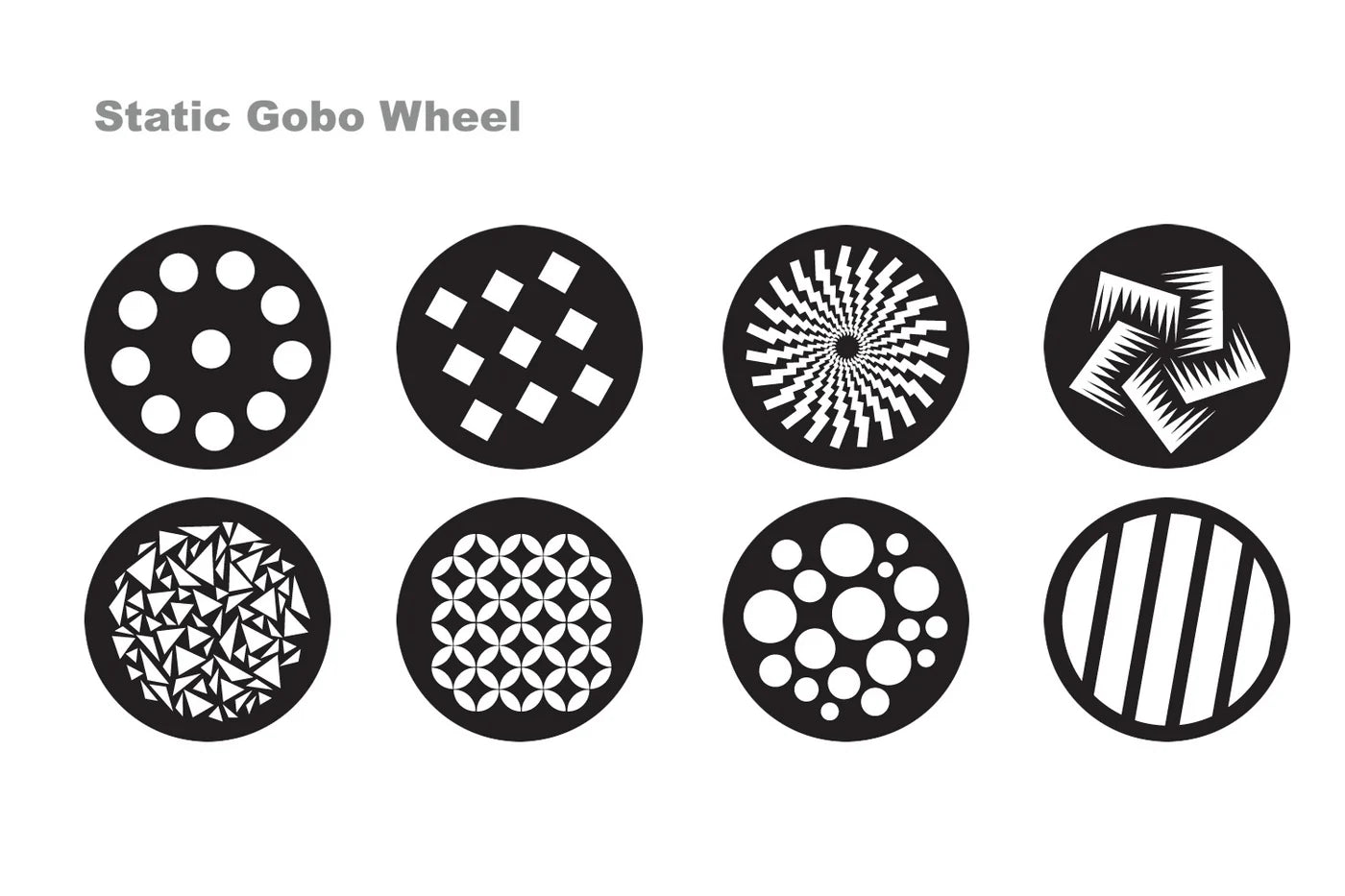

• Fixed: 8 + Open

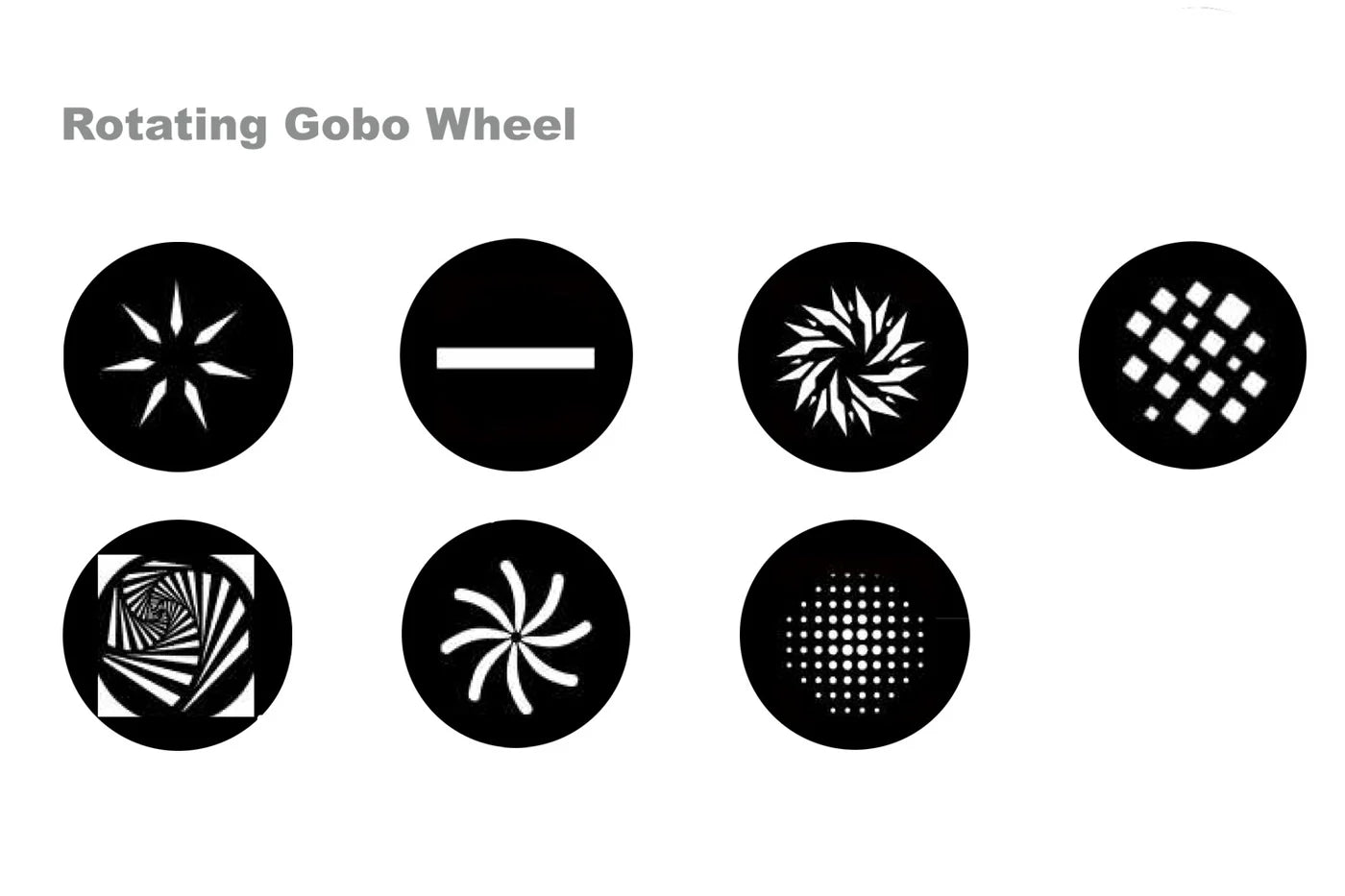

• Rotating: 7+ Open
• Outside￠30mm，inside ￠20mm

Effects

• Dimming: 0~100%
• Strobe: Yes
• Focus: Motorised
• Prism: Rotating 4 facets
• Animation wheel
• Iris: Yes
• Frost: Yes
• Zoom: Yes (4° to 50°)
• 4 Individual Shutter Blades Rotating +/- 45°

Movement

• 16 bit resolution
• Auto repositioning
• Pan: 540° (4.7 sec)
• Tilt: 267° (4 sec)

Power

• Max power consumption: 967W
• Input Voltage: 100~240V AC, 50/60 Hz
• Connection: TrueOne in/out

Control

• Control Protocol: DMX512, RDM
• Optional Wireless
• DMX Channels: 39

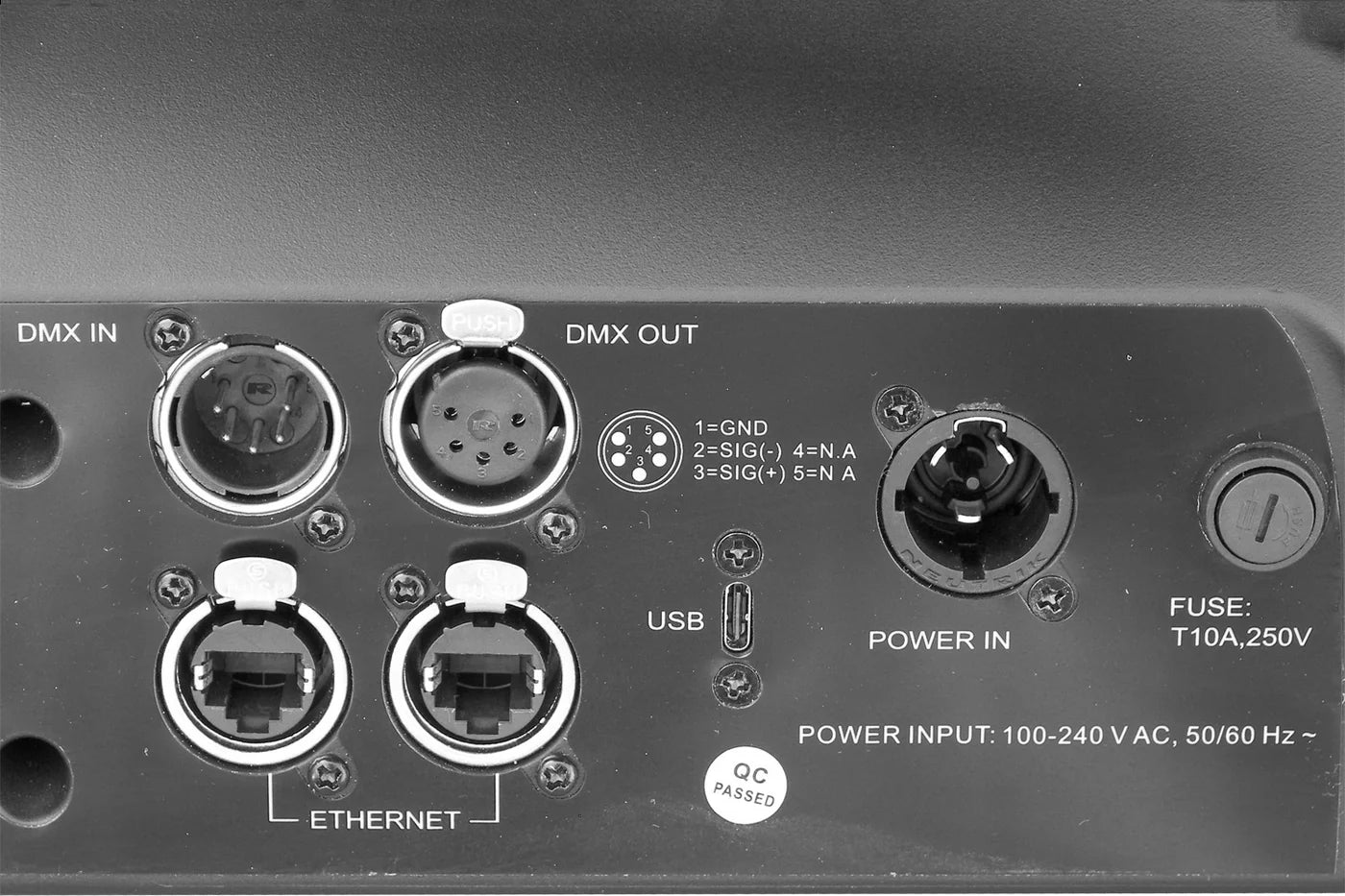

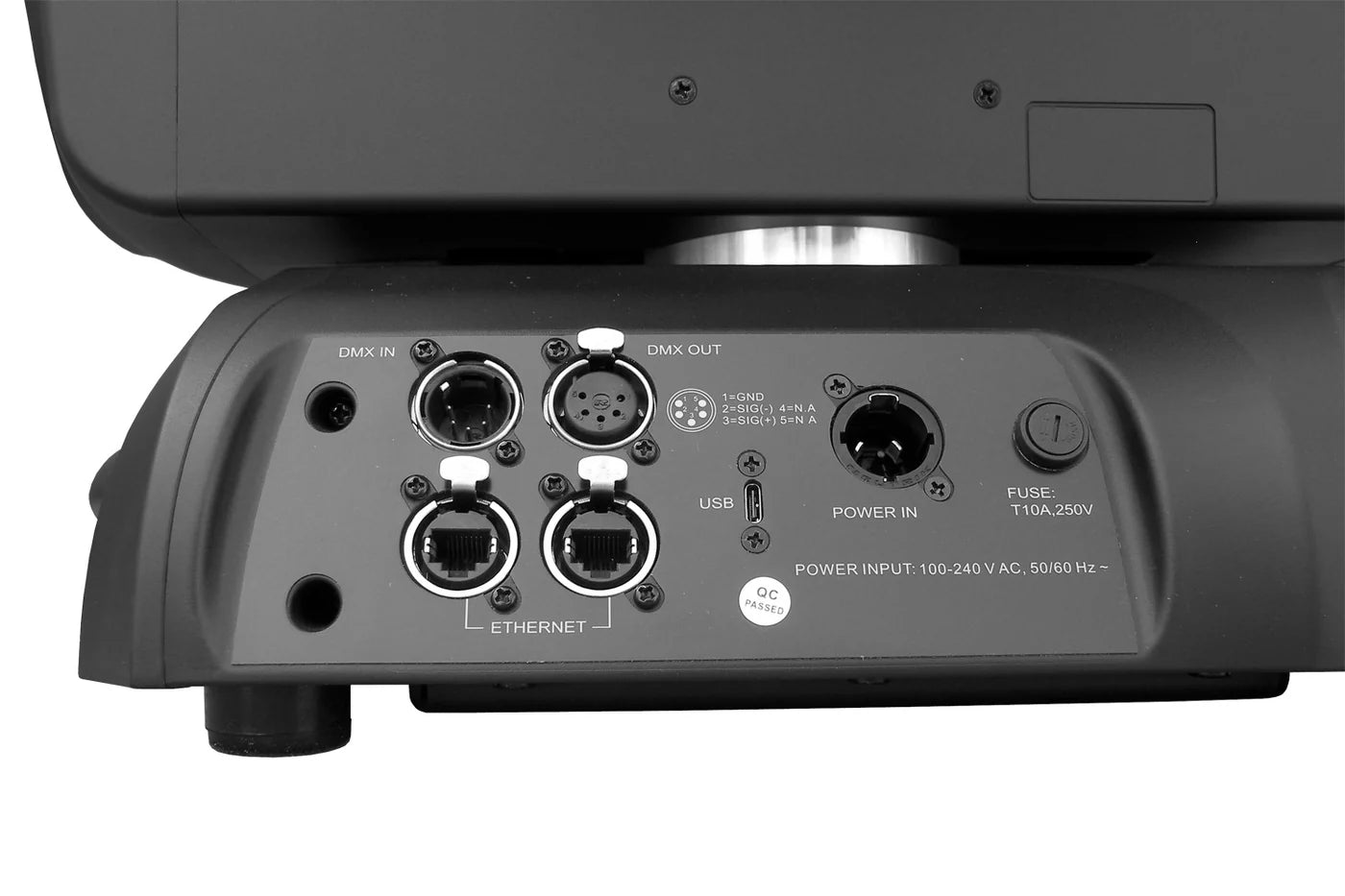

• Interface: 5-pin XLR in/out, RJ45 in / out
• RDM function to change DMX address
• Display: 2.4″ colour LCD control panel
• Software Upgrade via DMX: Yes

Housing

• Materials: ABS & Steel, matte black finish
• Dimensions: 442 x 753 x 285mm
• Cooling: Multi sensor thermostat controlled variable speed fan
• IP rating: IP20
• Net Weight: 35.1kg
• Rigging: 2 x omega brackets with 1/4-turn quick locks
