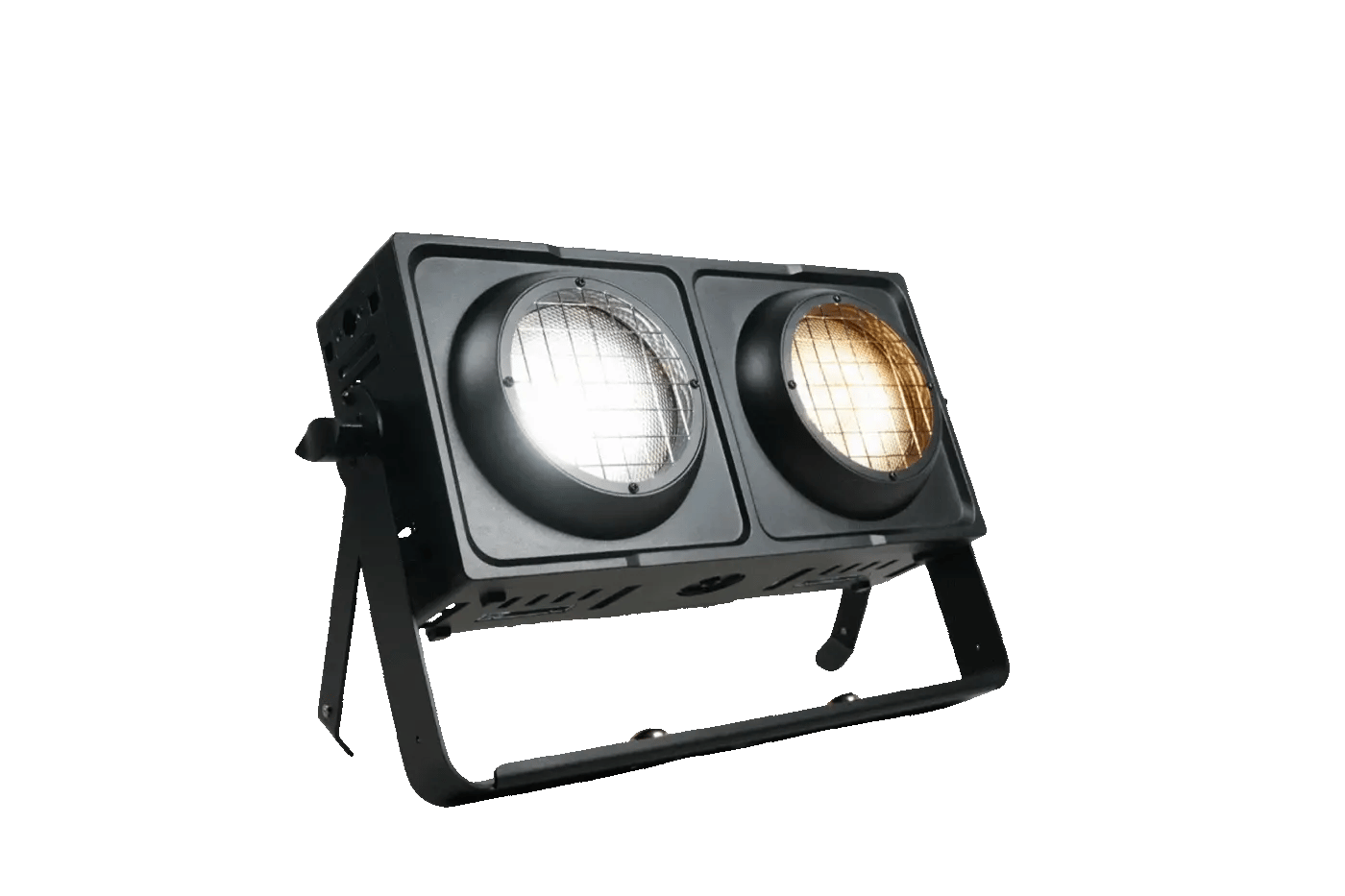

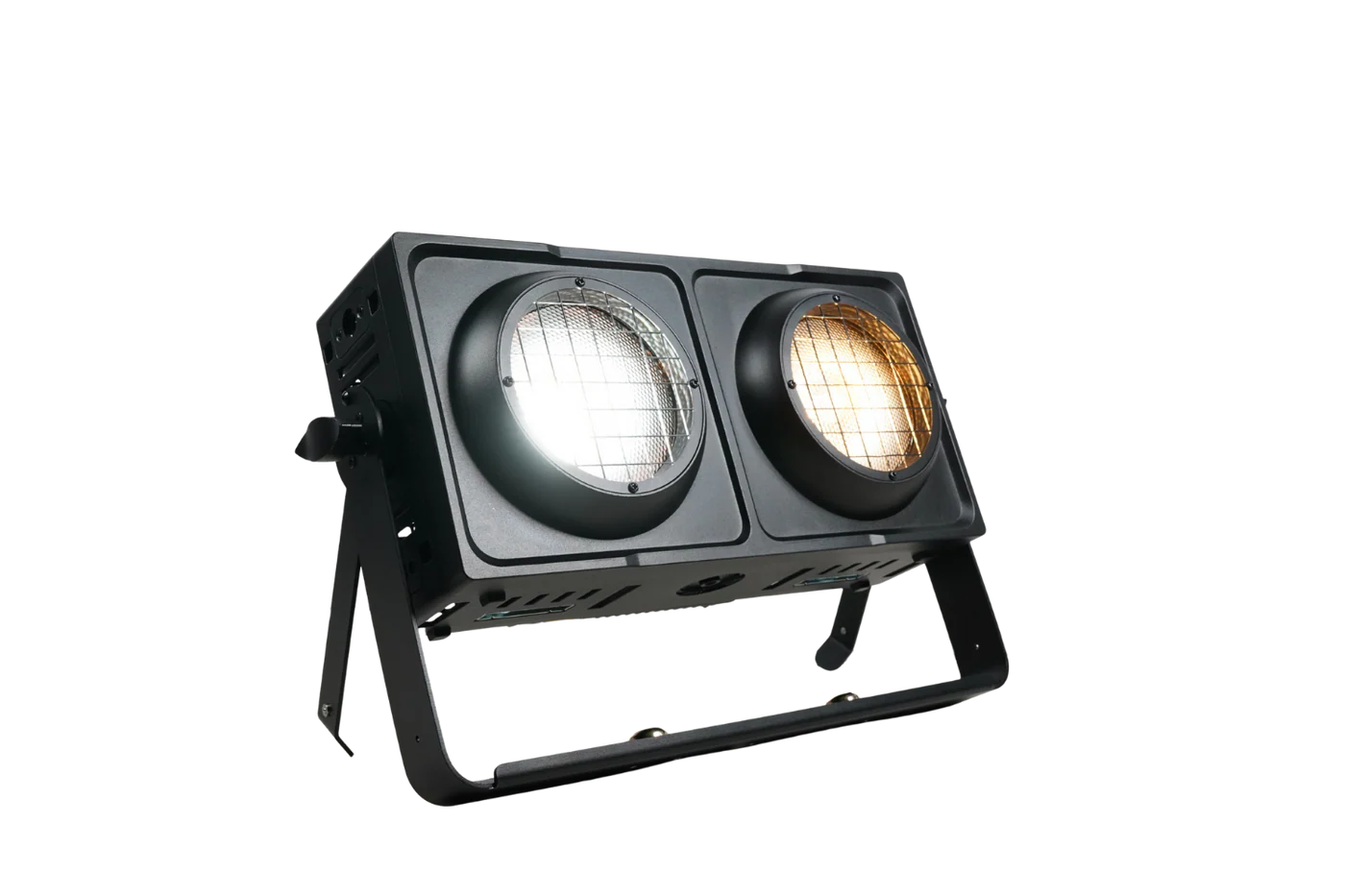

HYBRICK-BL - IP65 Variable White Blinder with Interlocking Housing

Photometrics

• Light Source: 2 pcs of 200W COB Warm white and cool white LED (2700K+6500K) + 64 pcs of 0.1w AMBER (32 LEDs x 2 segments)
• CRI: 95+

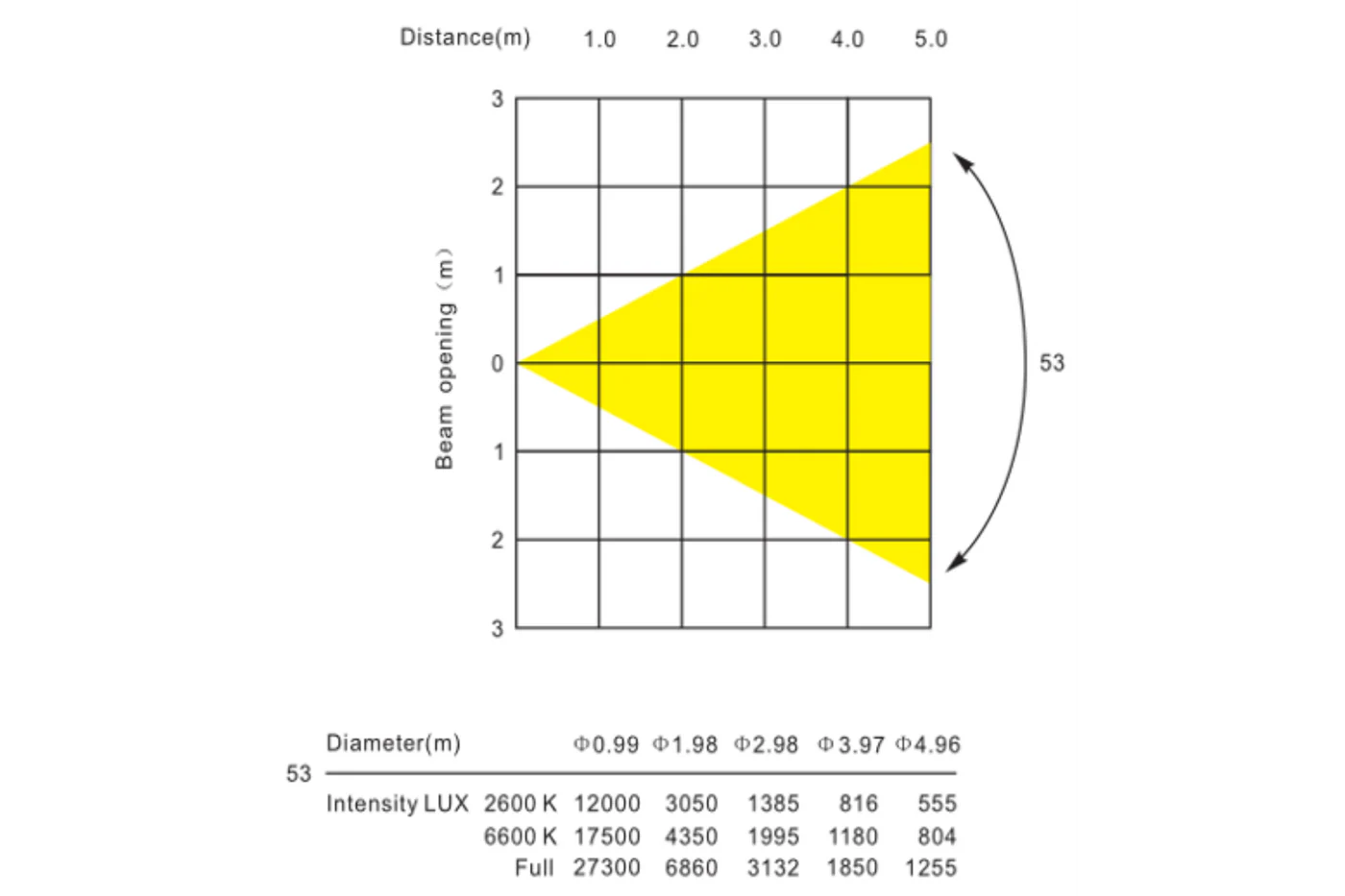

• Beam Angle: 53°
• Field Angle: 85°
• Output: 27300 @ 1m, 6860 @ 2m
• PWM: 1200 Hz
• LED Life: 50,000 hours

Effects

• Tungsten Effect: Yes
• Dimming: 5 x 16bit digital Dimming Curves
• Strobe: 1 - 25 Hz

Control

• Operational Modes: Static, Colour Fade, Auto Program, Sound Active, Master / Slave & DMX Modes, RDM, WDMX
• Display: 4-button LCD Display Control Panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 1U /2 / 5 / 7/ 8 / 10
• DMX Interface: 5-Pin XLR
• Software Upgrade via DMX: Yes

Power

• Input Voltages: 100V~240V AC,50/60Hz
• Power Consumption: 400W
• Power Connection: True 1 Power Input and Output

Housing

• Housing Materials: Aluminium Housing
• Housing finish: Matte Black
• Cooling: 2 Fans
• Dimension: 372 x 186 x 146.2mm / 14.65" x 7.32" x 5.76"
• Net Weight: 8.1 kg / 17 lbs 13.72 oz

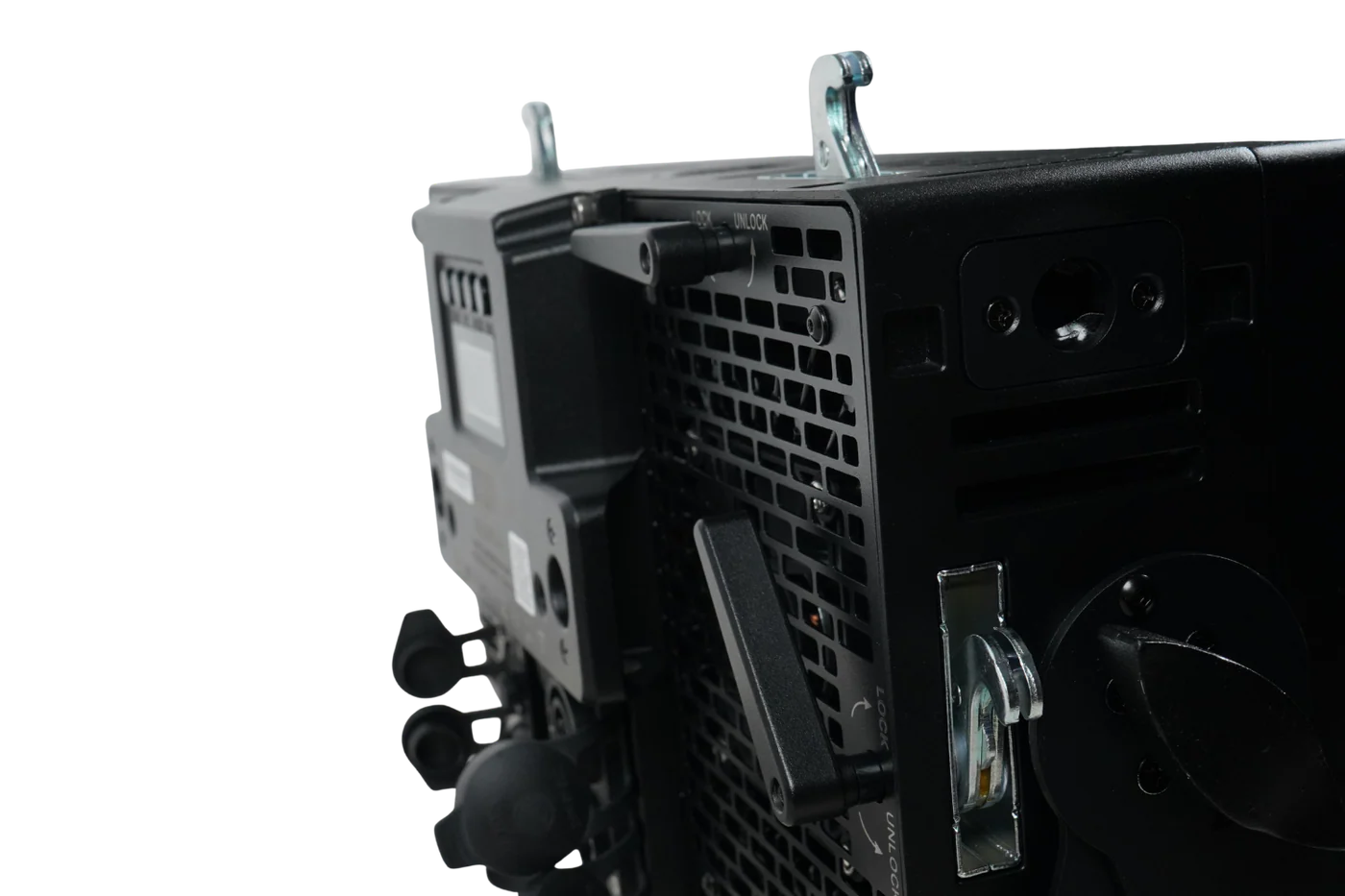

Rigging

• Double yokes (can stand on the floor alone or hang up horizontally)
• Mounting point on the top and bottom for bracket to be hung vertically
• Cam locks for 1/4 turn Omega Bracket on the side and back
• 6 coffin locks +3 tool free lock handles for multi-fixtures linking and hanging horizontally and vertically
• 1 x Omega bracket included

Warranty: 3 Years

Download User Manual
