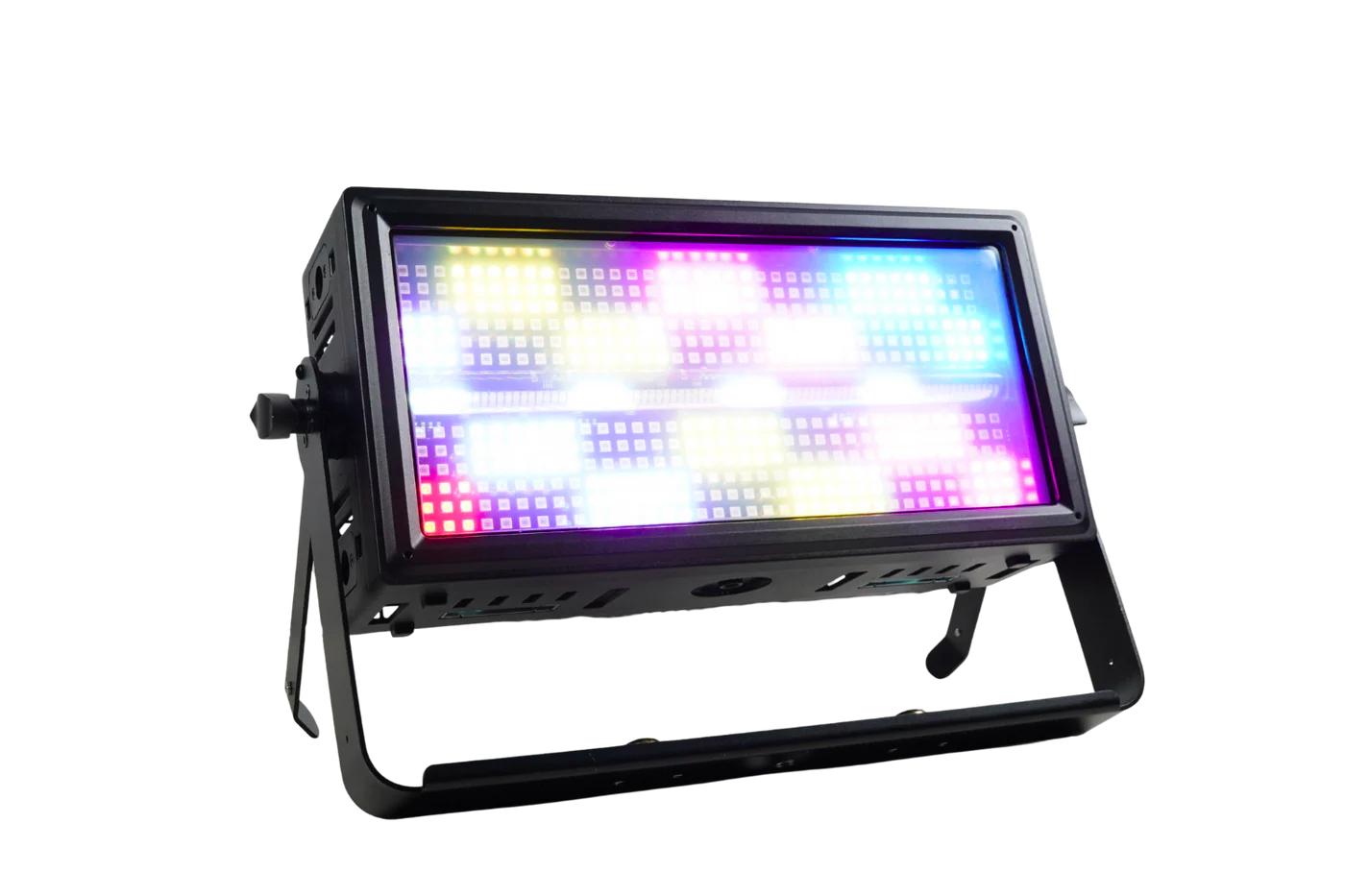

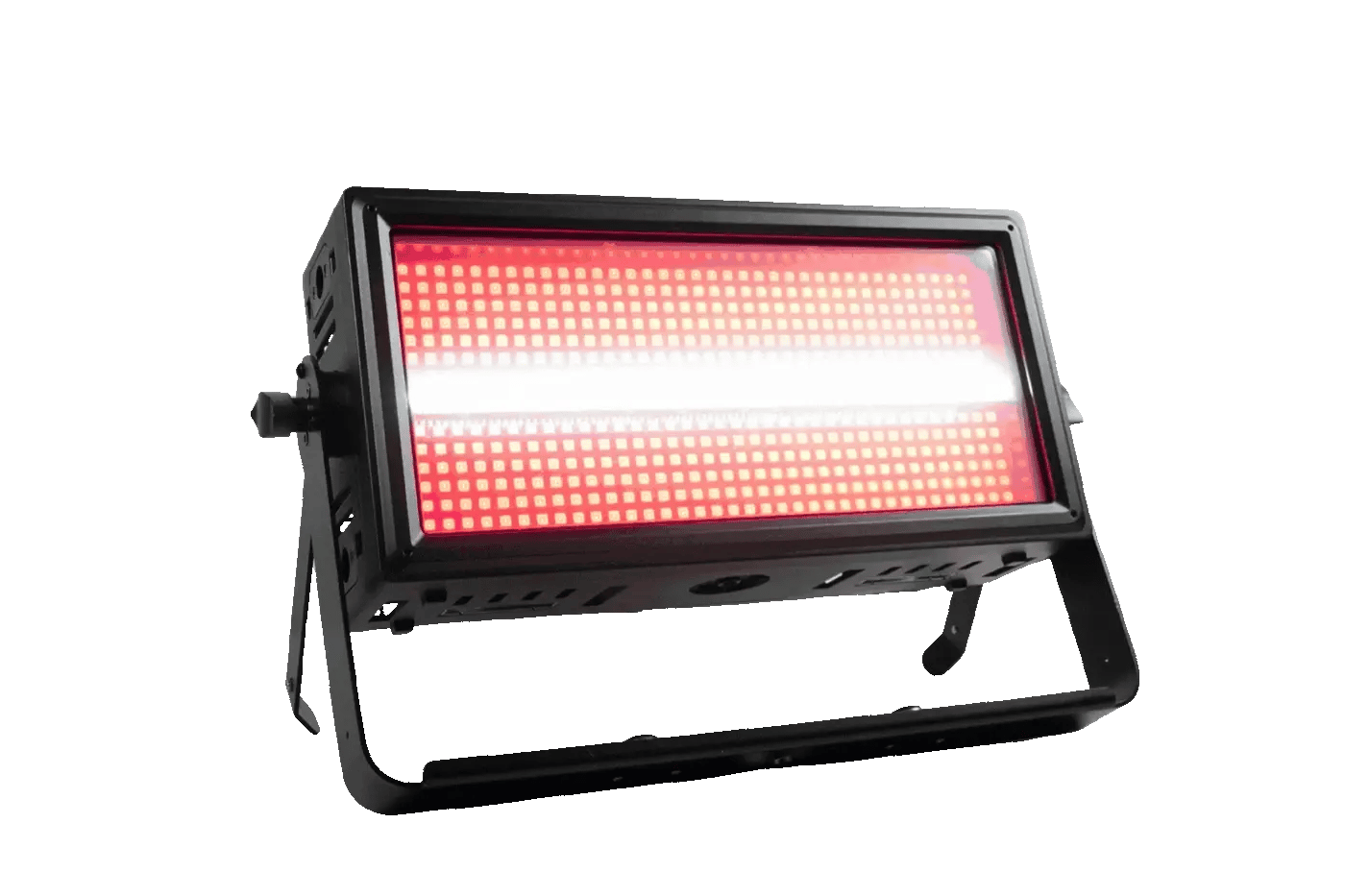

HYBRICK-FX - IP65 Effect Light with Electronic Frost and Interlocking Housing

Photometrics

• Light Source: 432 pcs of 1.5W RGB LEDs (Upper Zone: 9 LEDs x 24 segments; Bottom Zone: 9 LEDs x 24 segments) + 84 pcs of 5w warm white LEDs (7 LEDs x 12 segments)
• Colour Temp (Warm White):  3250K

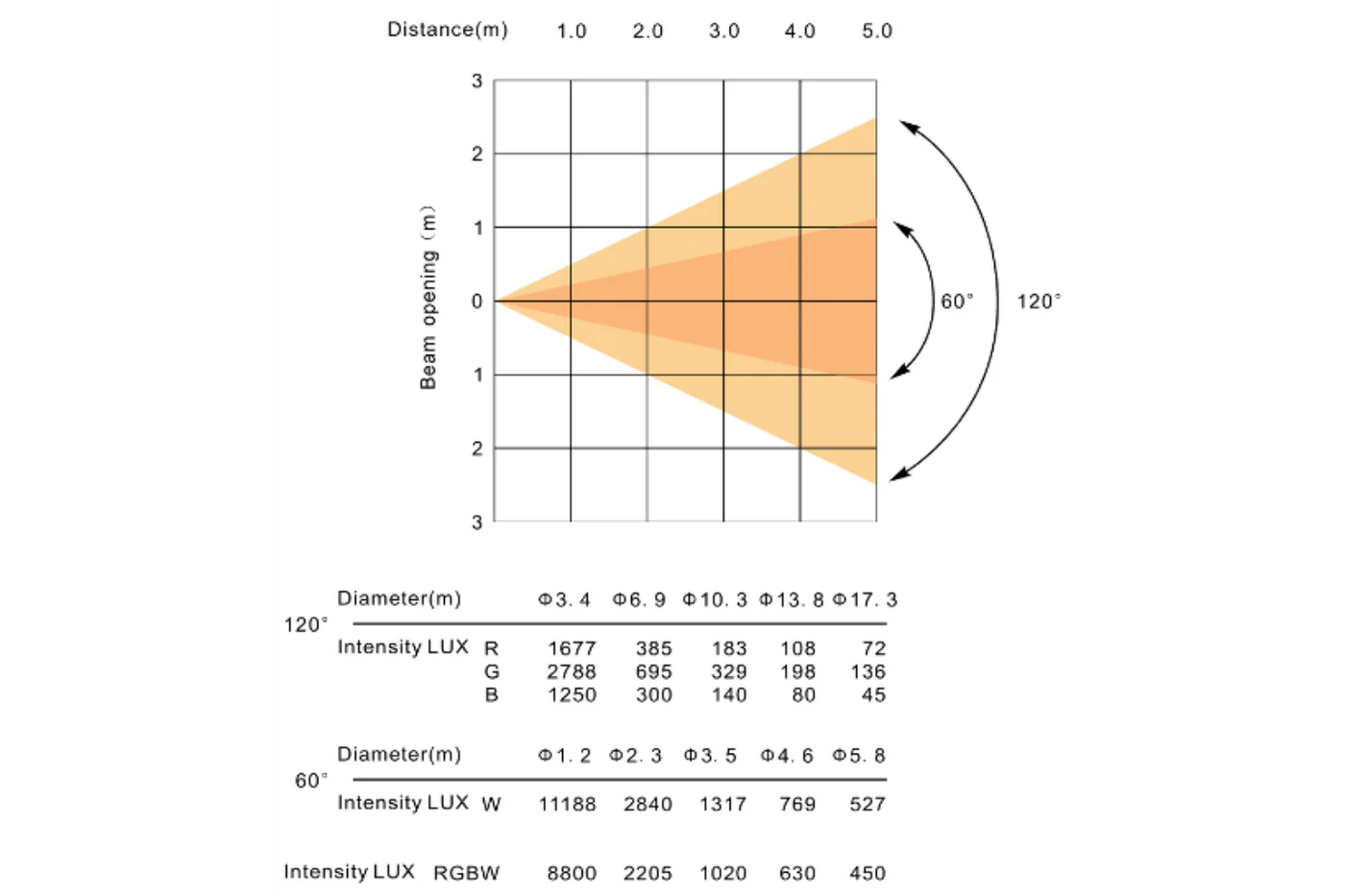

• Beam Angle: RGB 120°, Warm White:60°
• Output: 8800 @ 1m, 2205 @ 2m
• PWM: 4000 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 5 x 16bit digital Dimming Curves
• Strobe: 1 - 25 Hz
• Electronic Frost transparency level 0%~100%
• Pixel Control: Segmented  – RGB Plate (48 cells) + White beam (12 cells)

Control

• Operational Modes: Static, Colour Fade, Auto Program, Sound Active, Master / Slave & DMX Channel Modes, RDM, WDMX
• Display: 4-button LCD Display Control Panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 3 / 4 / 14 / 15 / 50 / 146 / 158
• DMX Interface: 5-Pin XLR
• Software Upgrade via DMX: Yes

Power

• Input Voltages: 100V~240V AC,50/60Hz
• Power Consumption: 400W
• Power Connection: True 1 Power Input and Output

Housing

• Housing Materials: Aluminium Housing
• Housing finish: Matte Black
• Cooling: 2 Fans

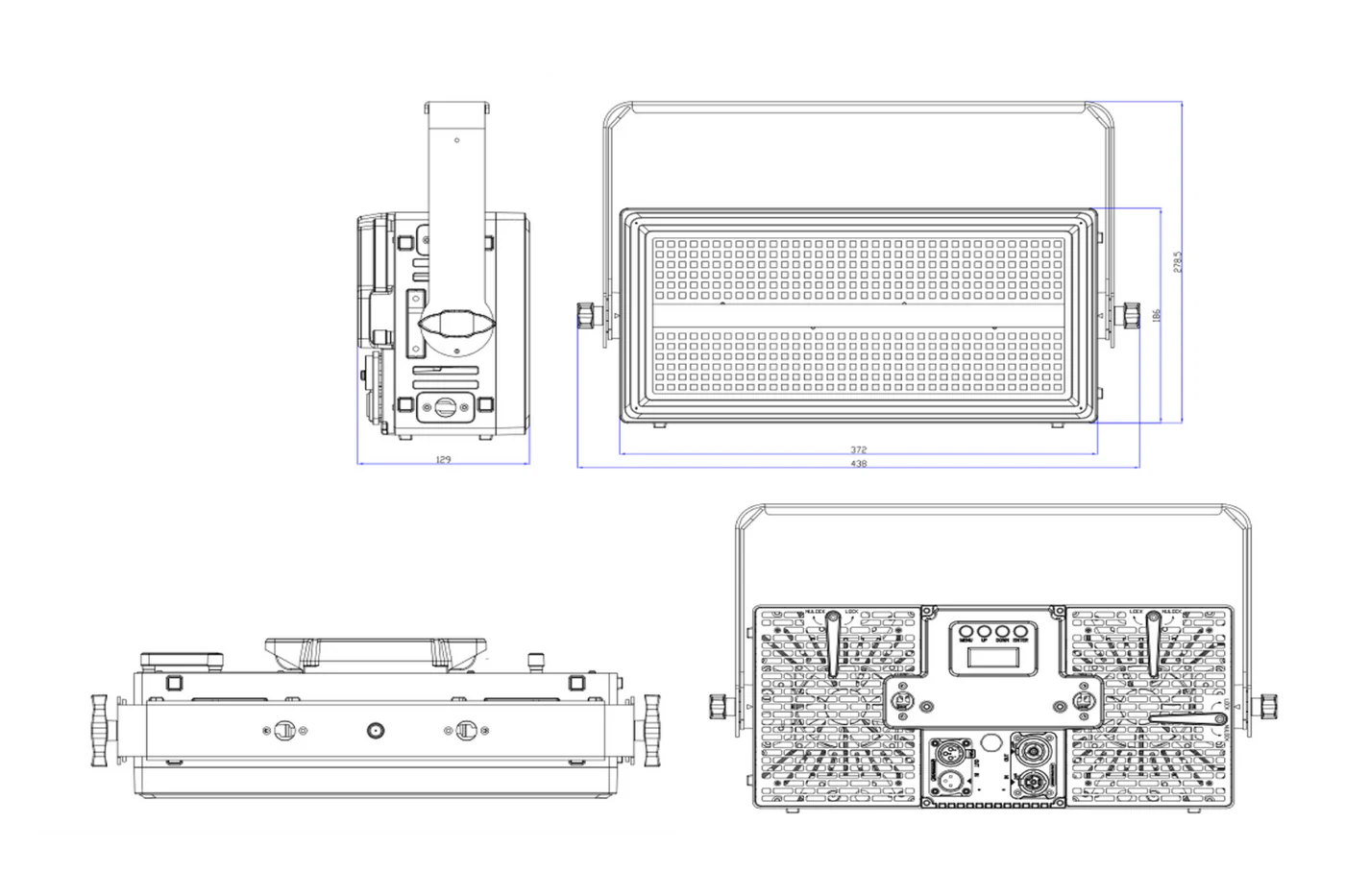

• Dimension: 372 x 186 x 146.2mm / 14.65" x 7.32" x 5.76"
• Net Weight: 8.1 kg / 17 lbs 13.72 oz

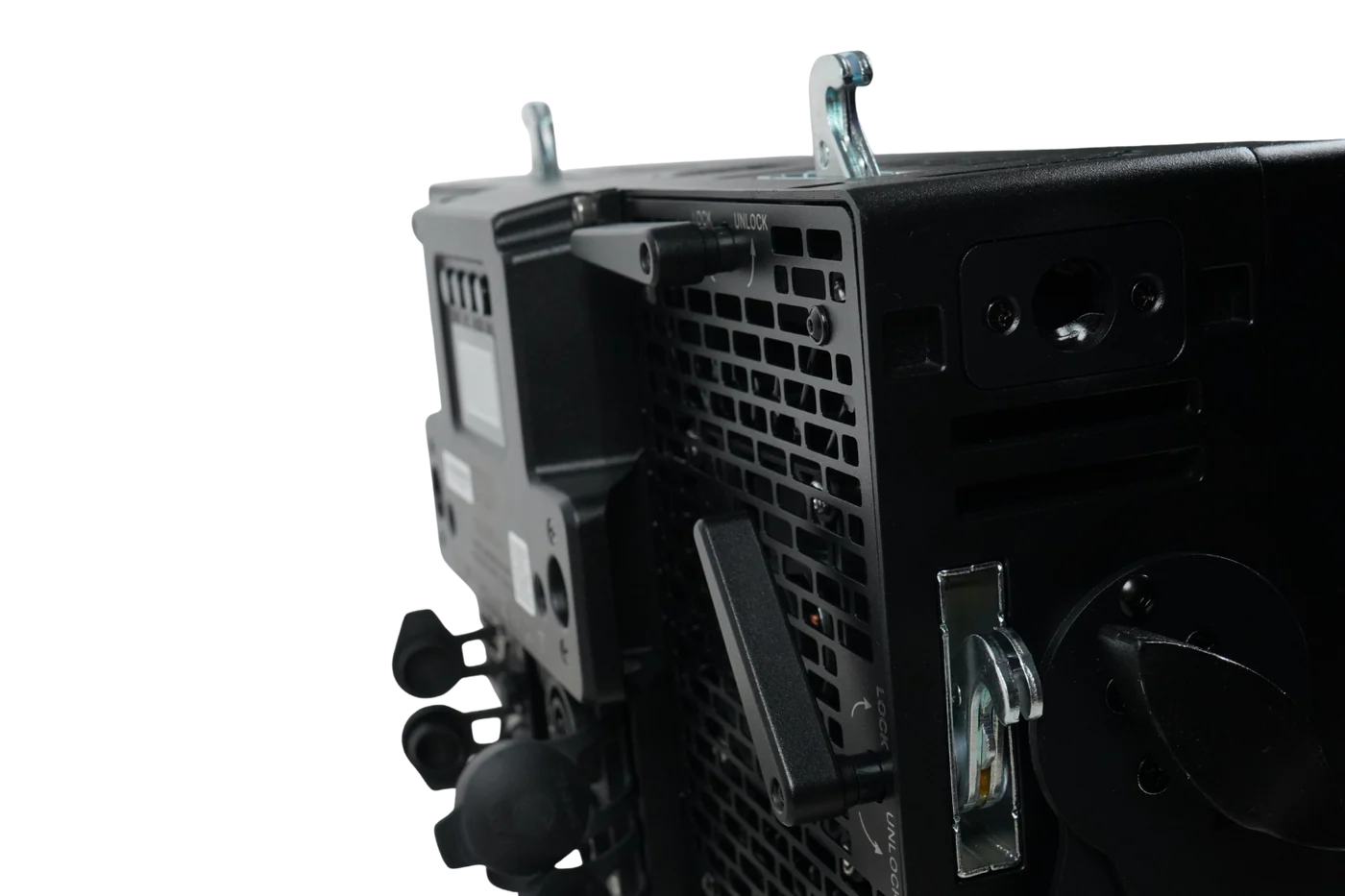

Rigging

• Double yokes (can stand on the floor alone or hang up horizontally)
• Mounting point on the top and bottom for bracket to be hung vertically
• Cam locks for 1/4 turn Omega Bracket on the side and back
• 6 coffin locks +3 tool-free lock handles for multi-fixtures linking and hanging horizontally and vertically
• 1 x Omega bracket included

Warranty: 3 Years

Download User Manual
