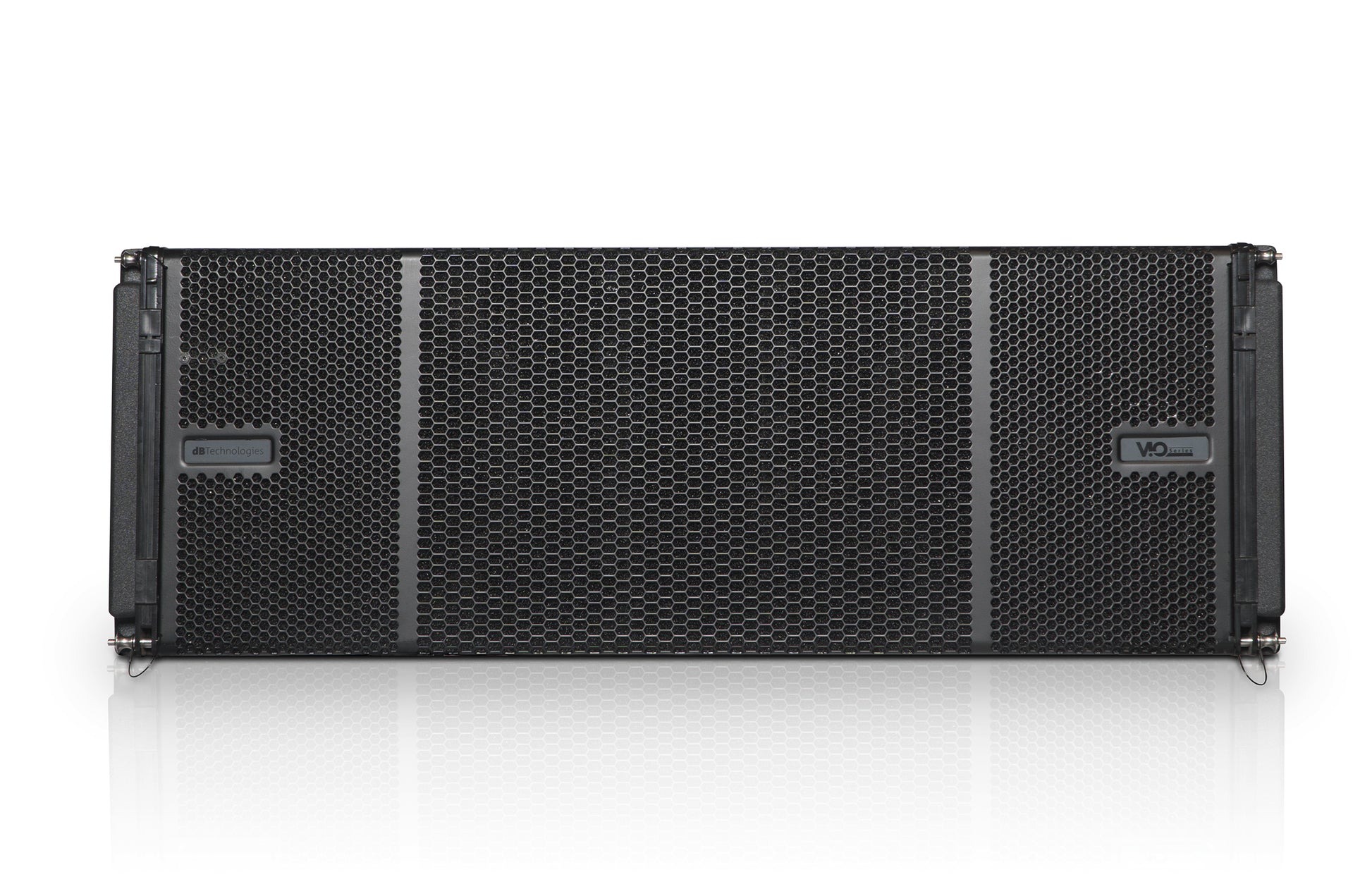

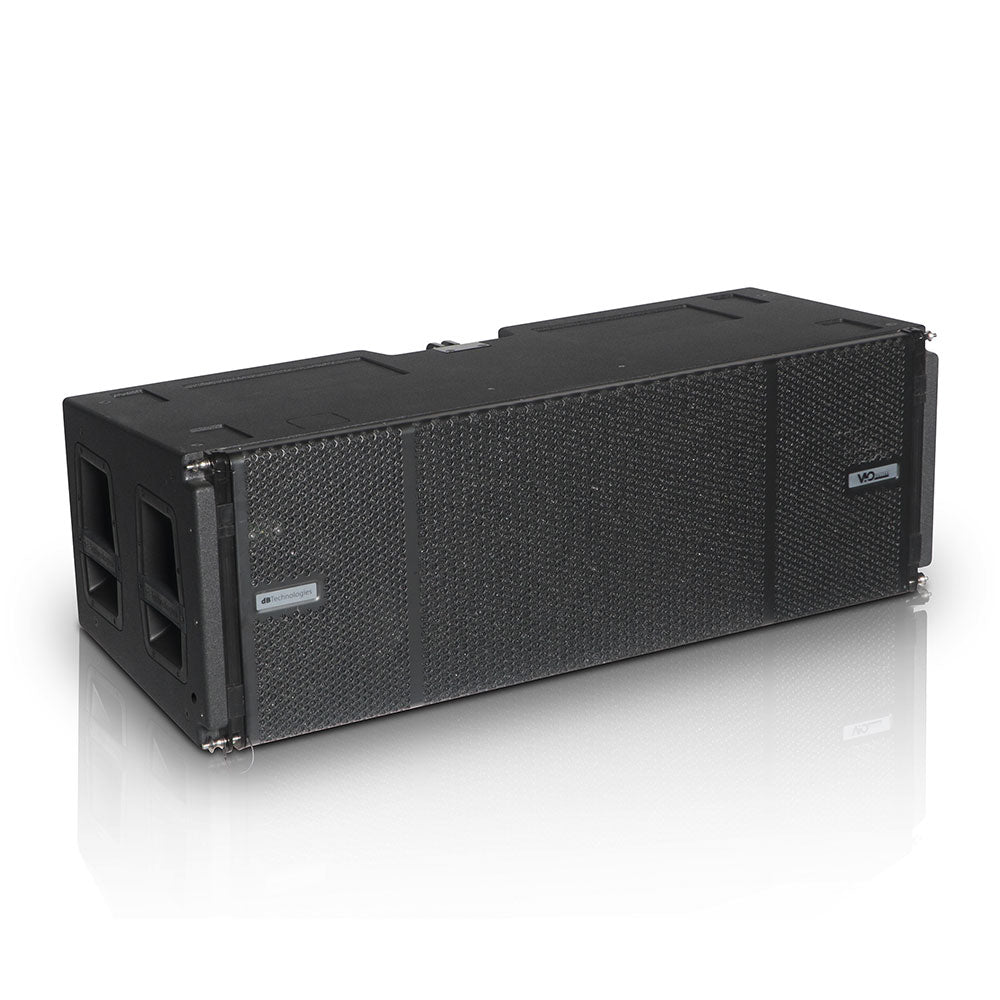

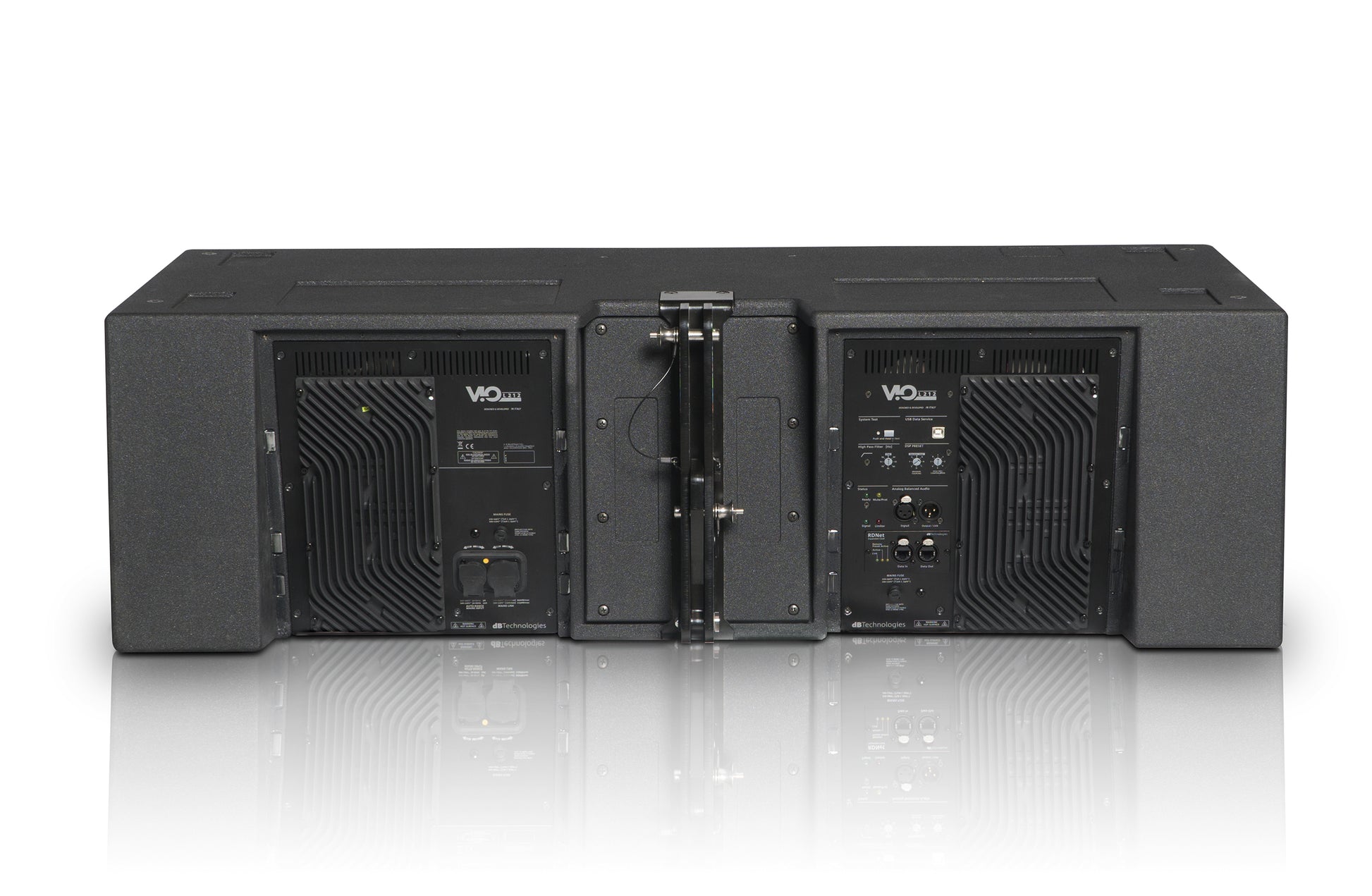

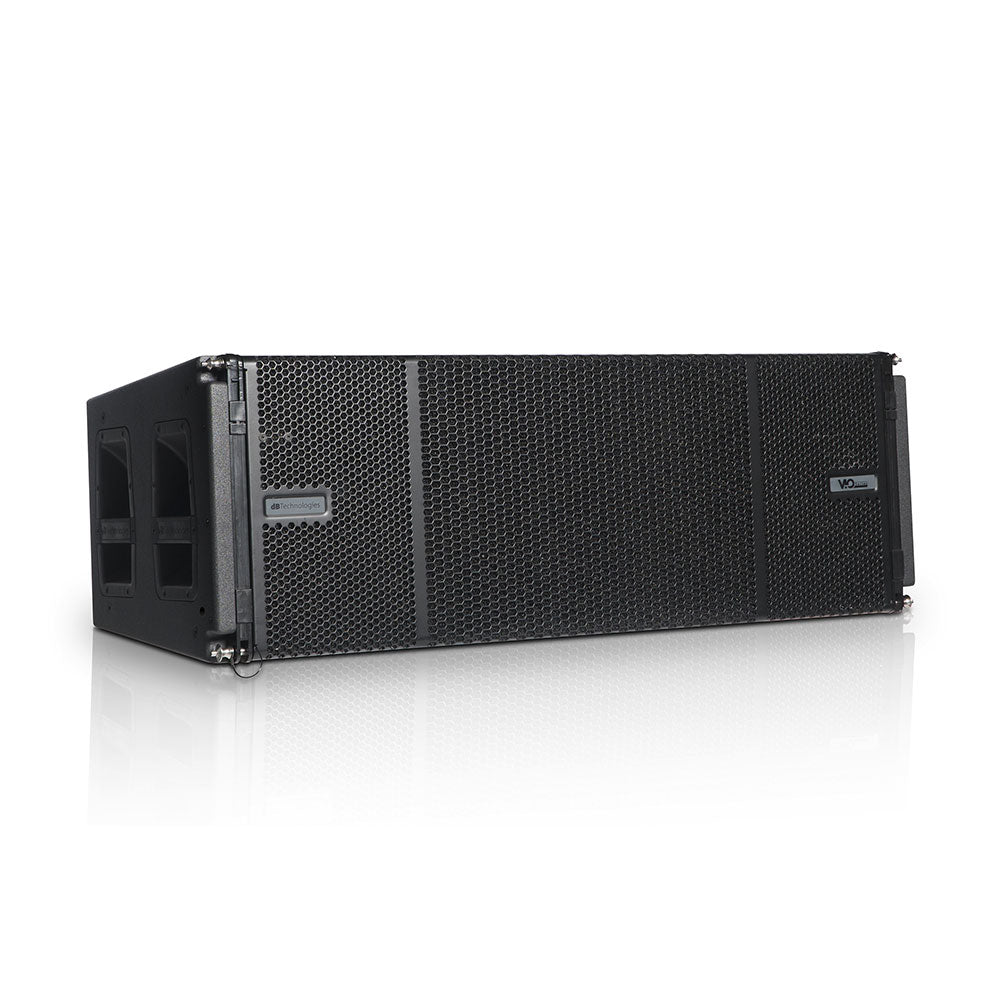

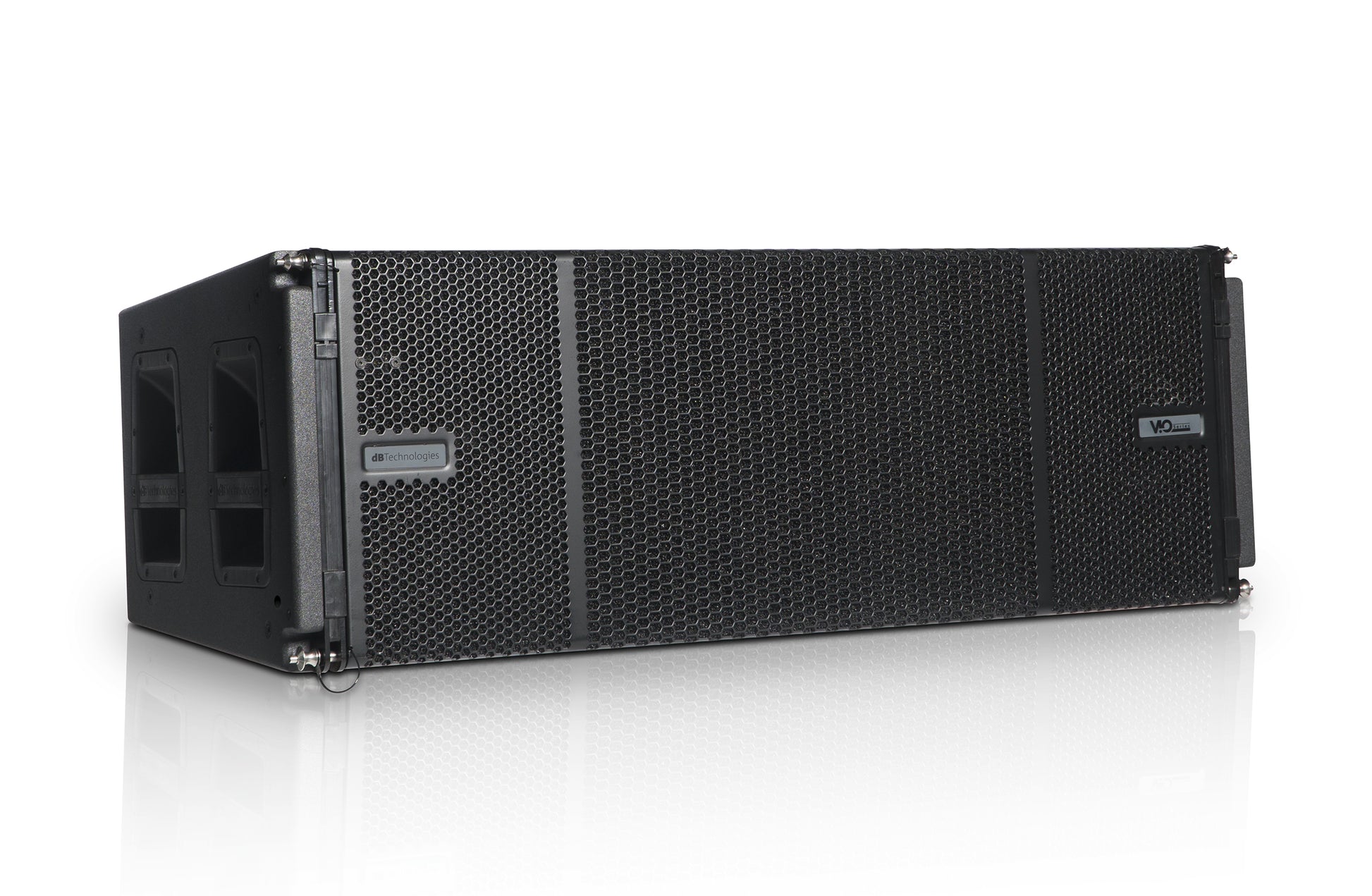

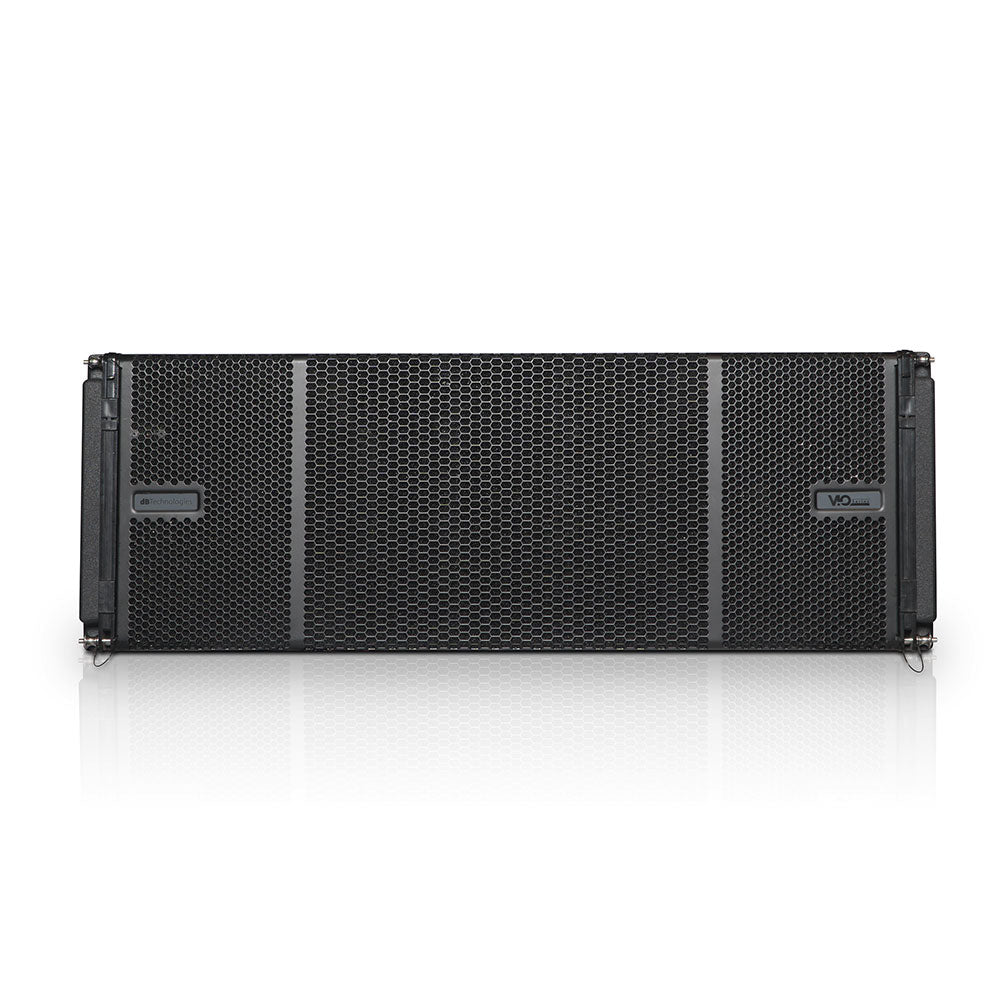

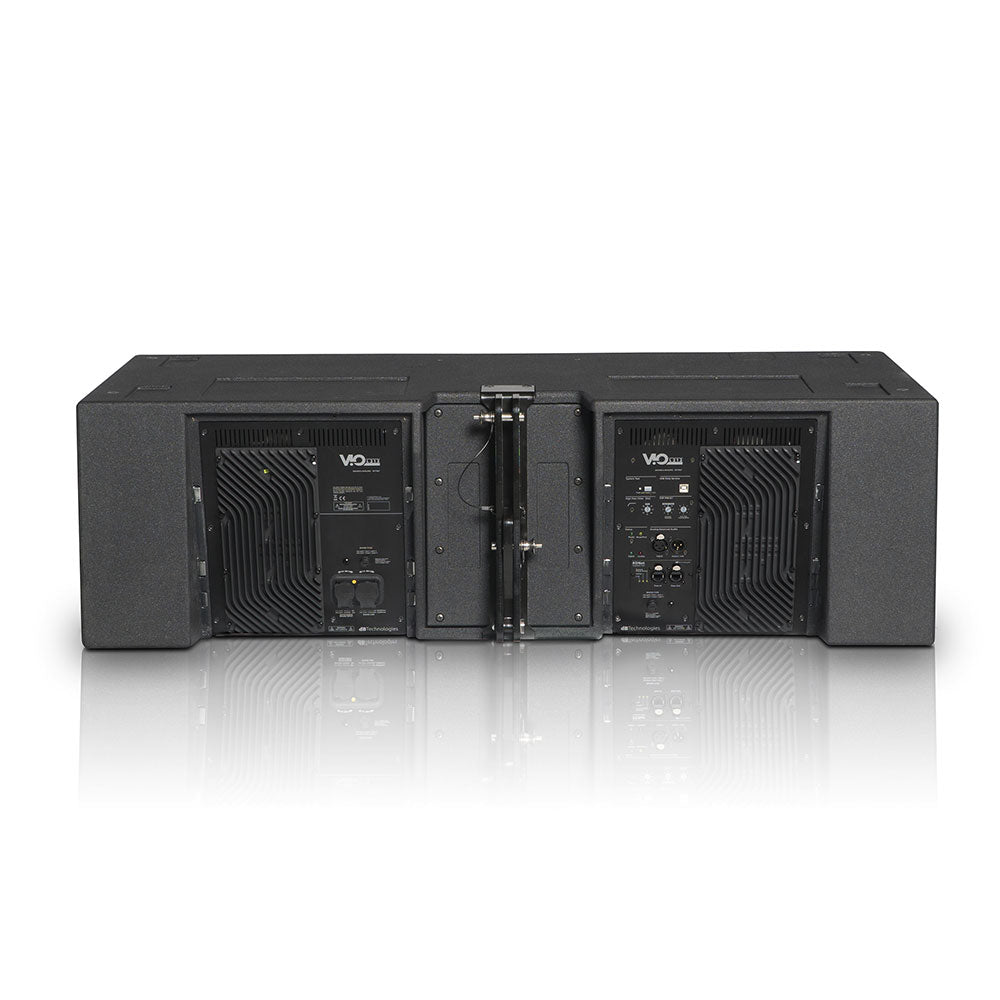

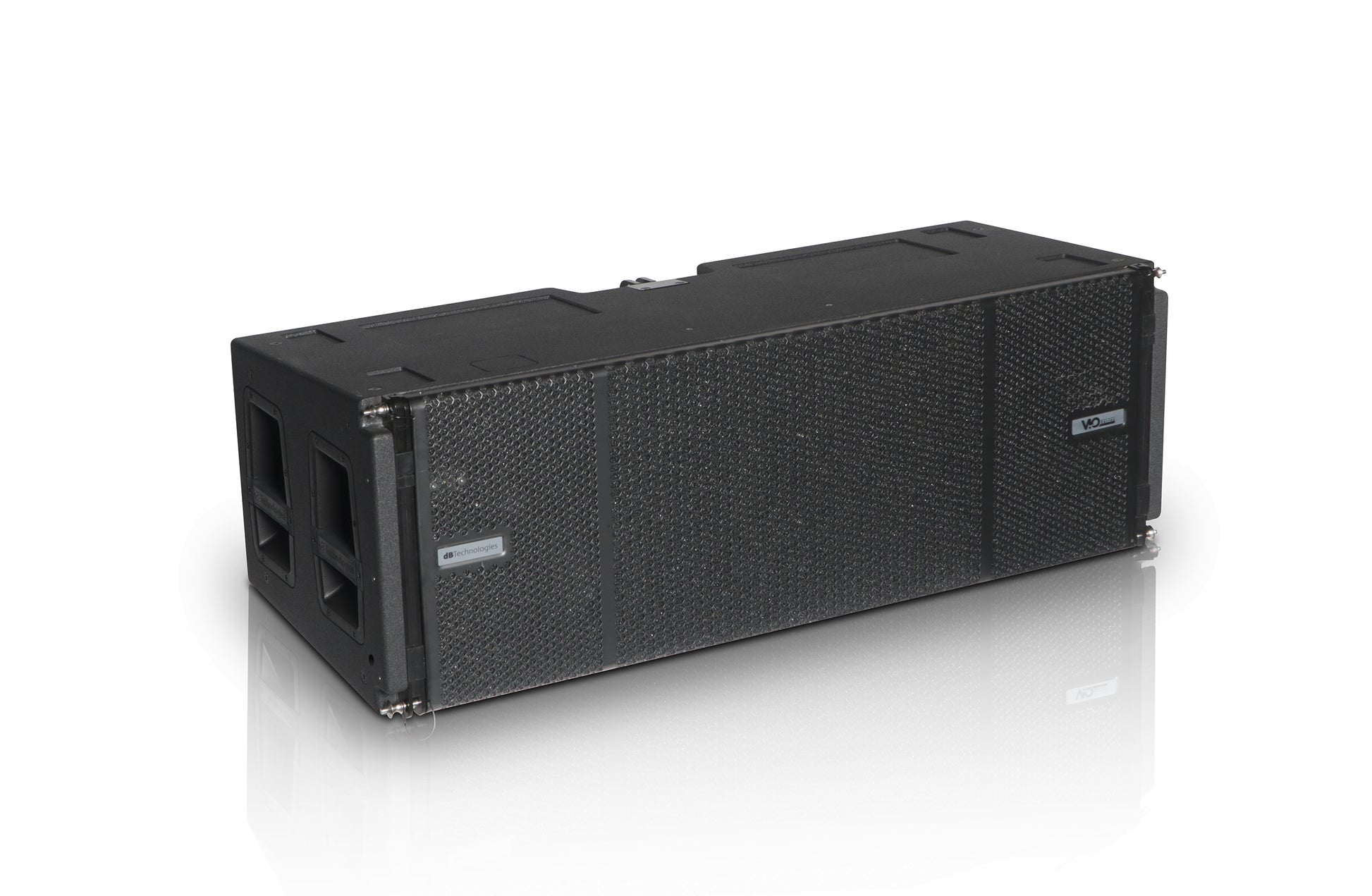

VIO L212 is the first dBTechnologies’ full scale line array module designed for large touring sound reinforcement applications, concurrently providing mighty output capability and optimized coverage behaviour. dBTechnologies was able to pack great sound pressure levels into one of the most compact and lightest active 2x12” line array systems.
Technical Specifications
Technical Data
Speaker Type
3-Way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB]
55 - 18.600 Hz
Max SPL
One Unit: 142 dB
HF

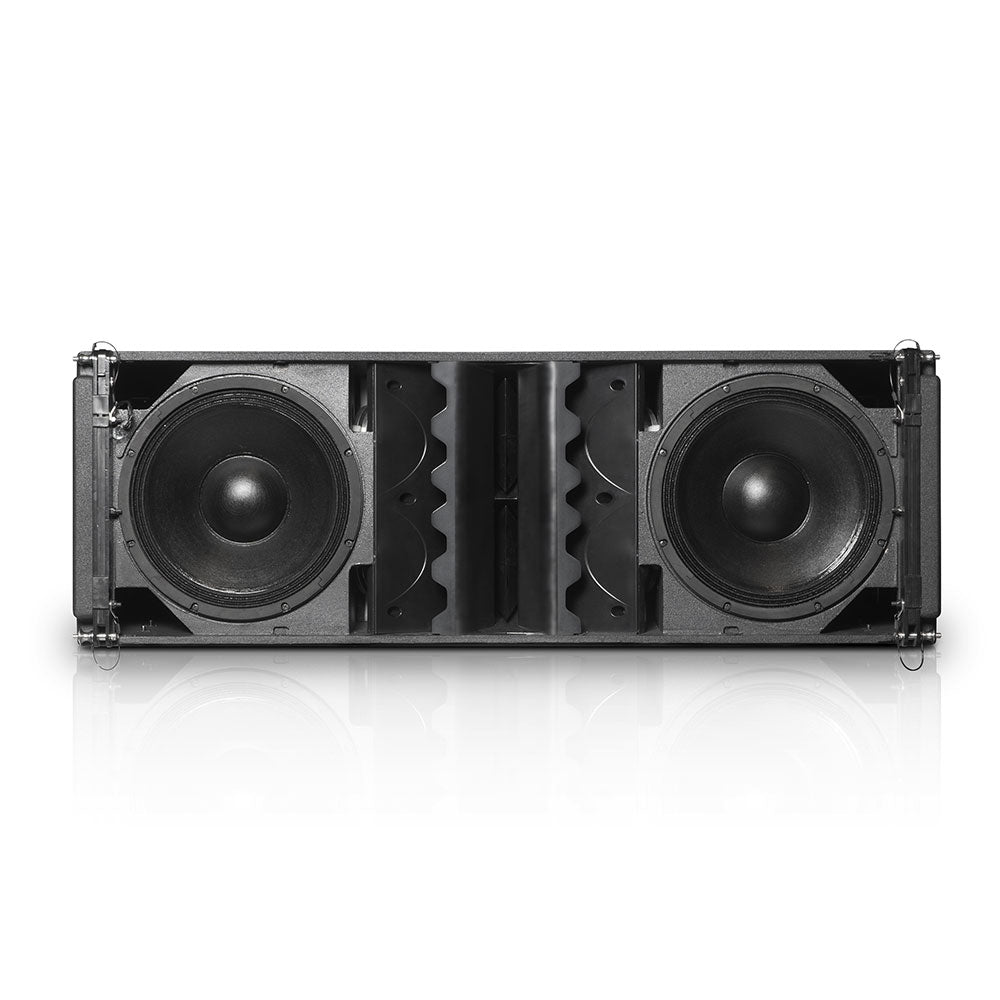

2 x 1.4”, 3” v.c. - Neodymium
MF
4 x 6.5” , 2” v.c. - Neodymium

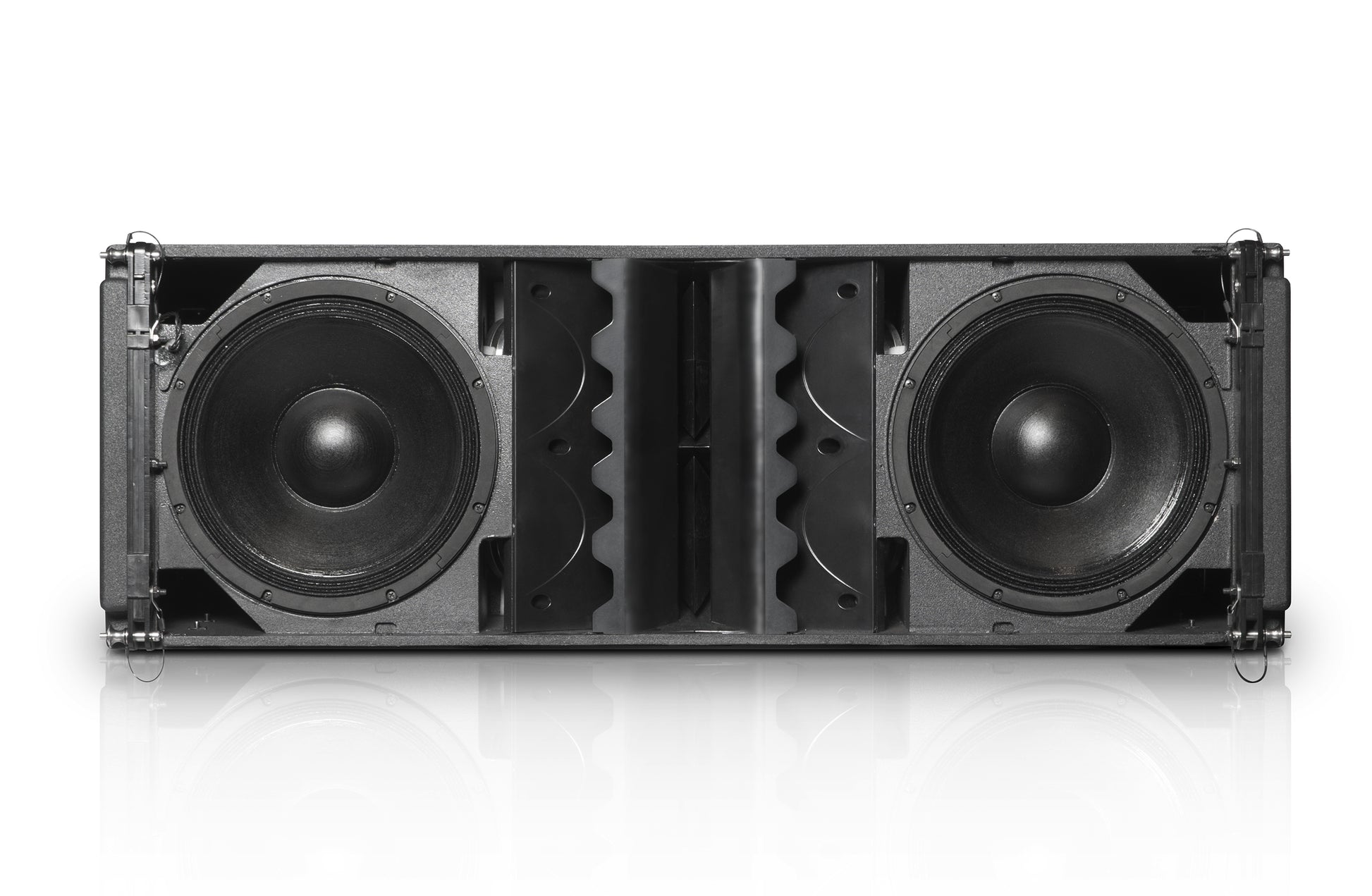

LF
2 x 12”, 3” v.c. - Neodymium
Horizontal Directivity
90°
Vertical Directivity
depends on array size and configuration
Amplifier
Amplifier
3200 W RMS [2x 1600 W RMS bi-amped Class-D Digipro® G4]
1 x Speaker Coupling (7 presets) 1 x High pass filter Rotary Encoder (8 presets) 1 x HF Compensation (8 presets) 1 x System Test Button
Special Features
NFCTM and Frontal LED Identification System 380V Resistant SMPS IPOS Intelligent Power-On Sequence Opto-isolated floating pre-amp System Test (transducers diagnostics) Inclinometer
