dBTechnologies

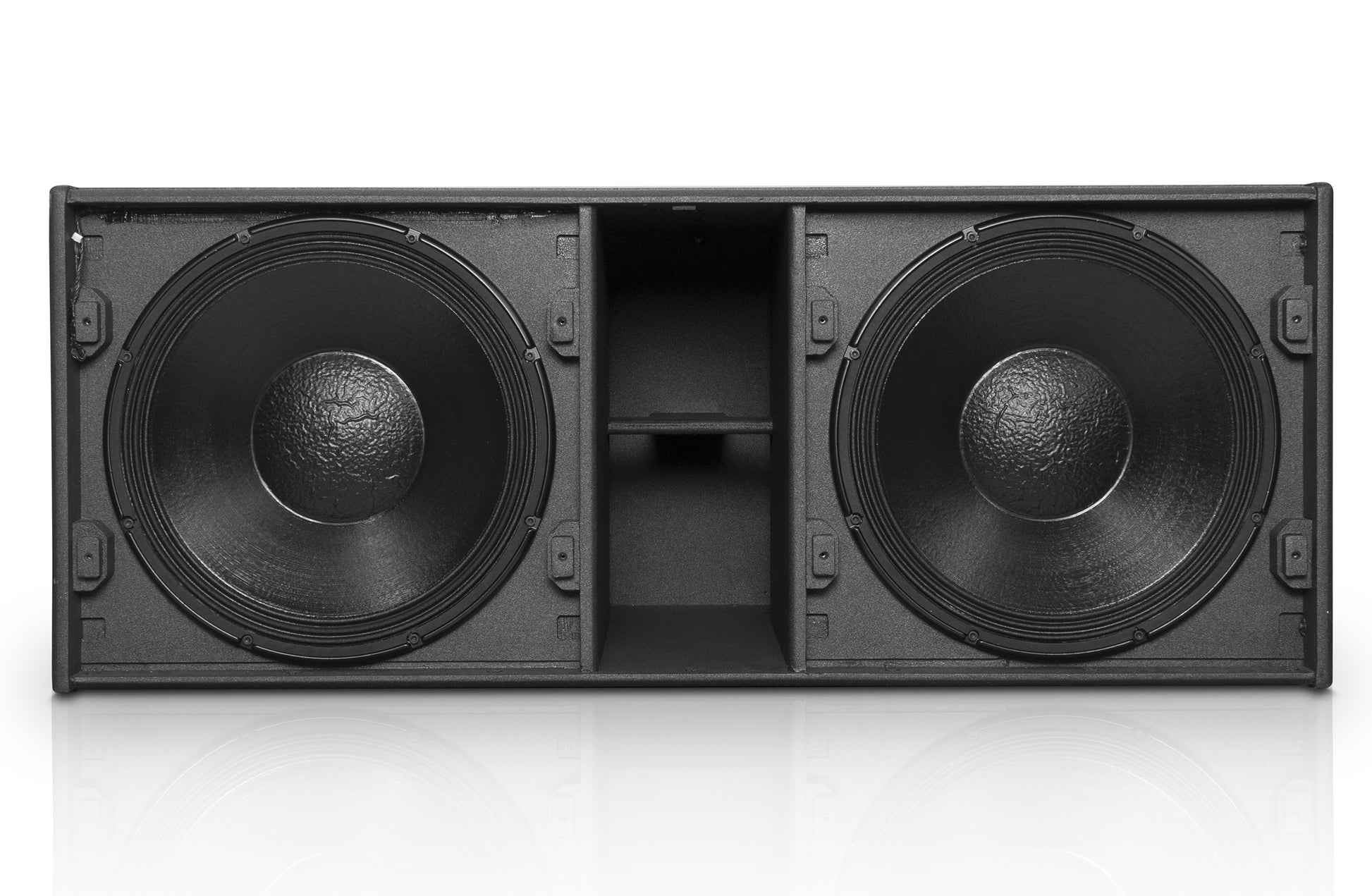

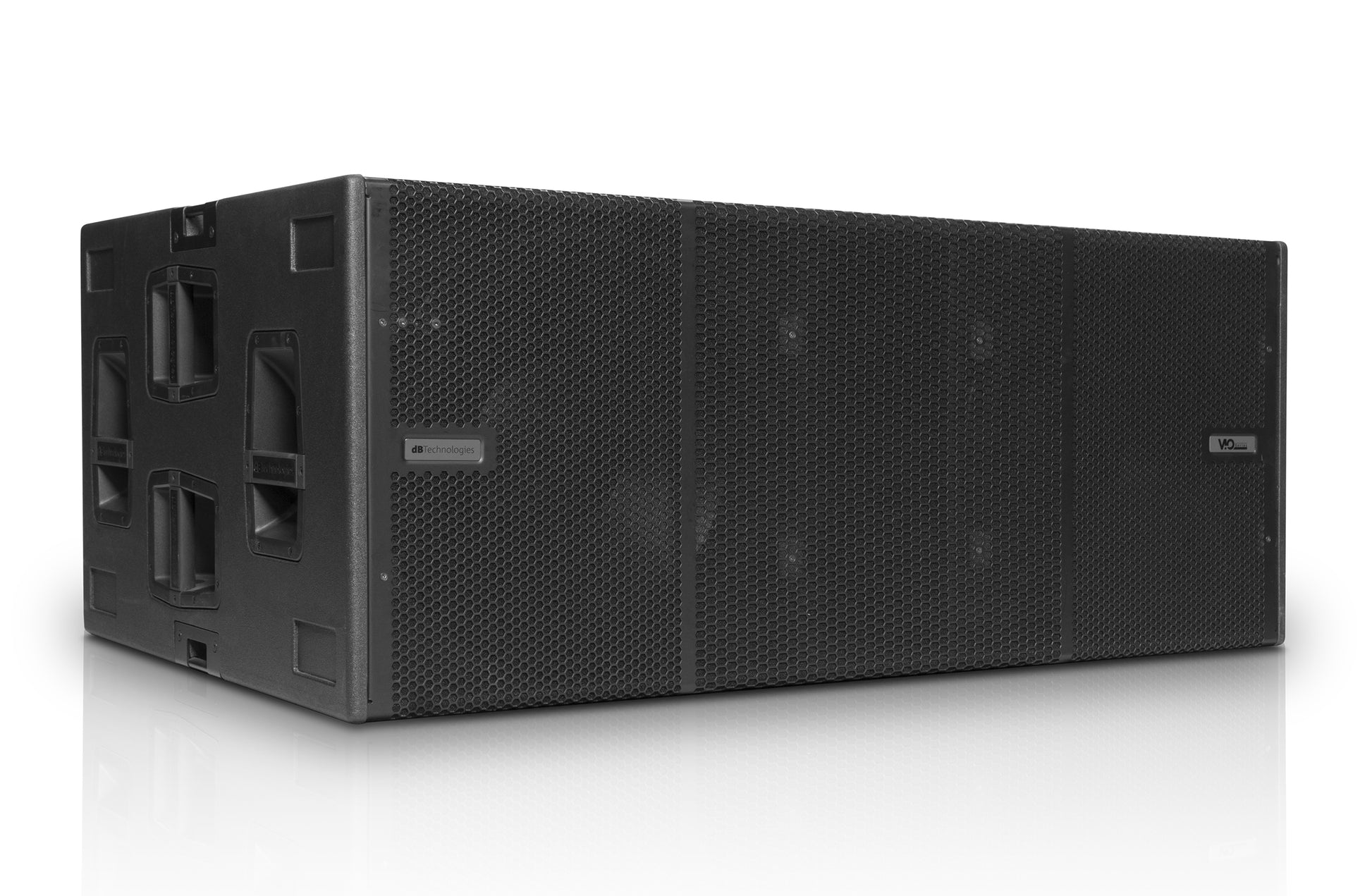

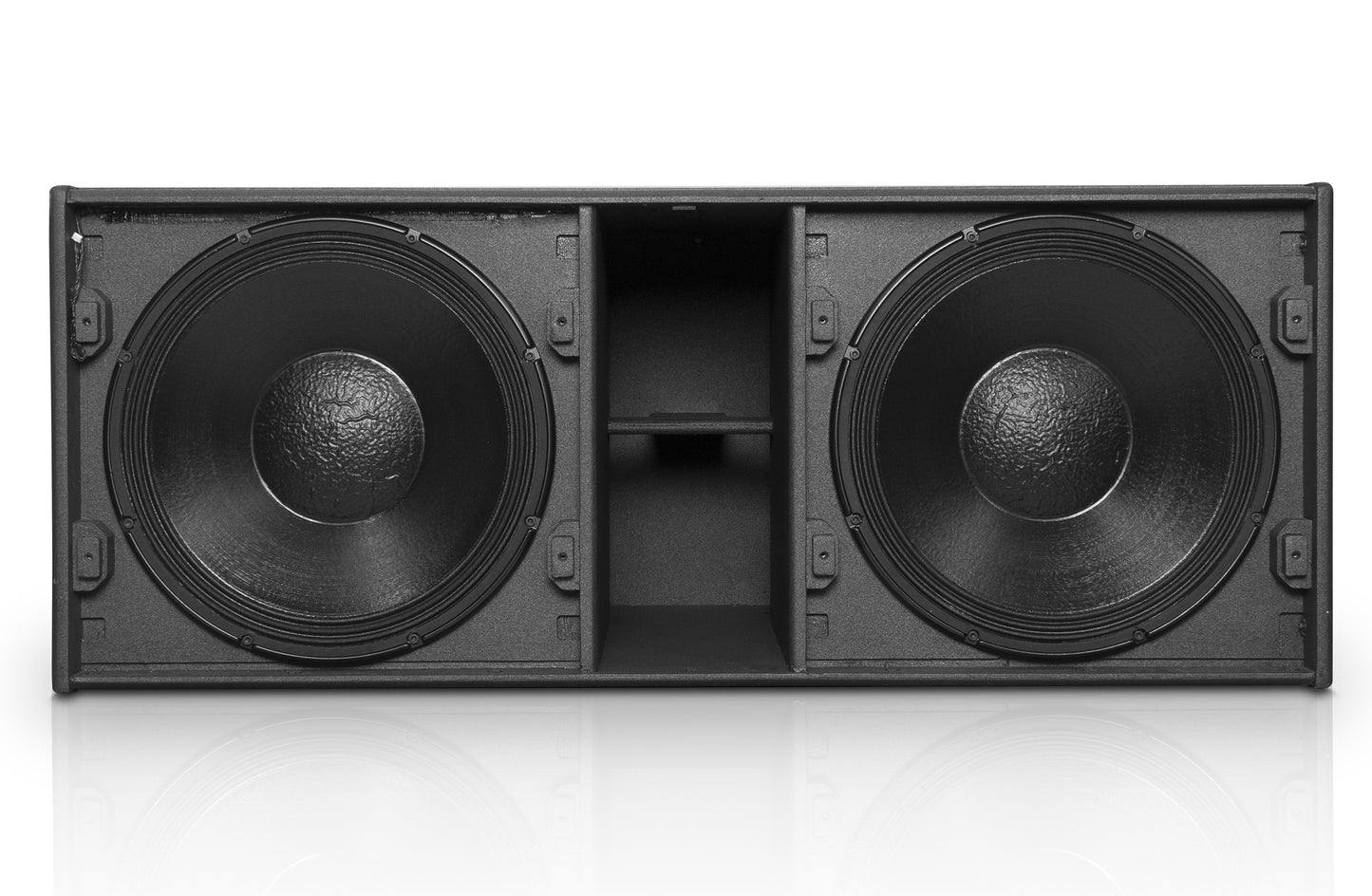

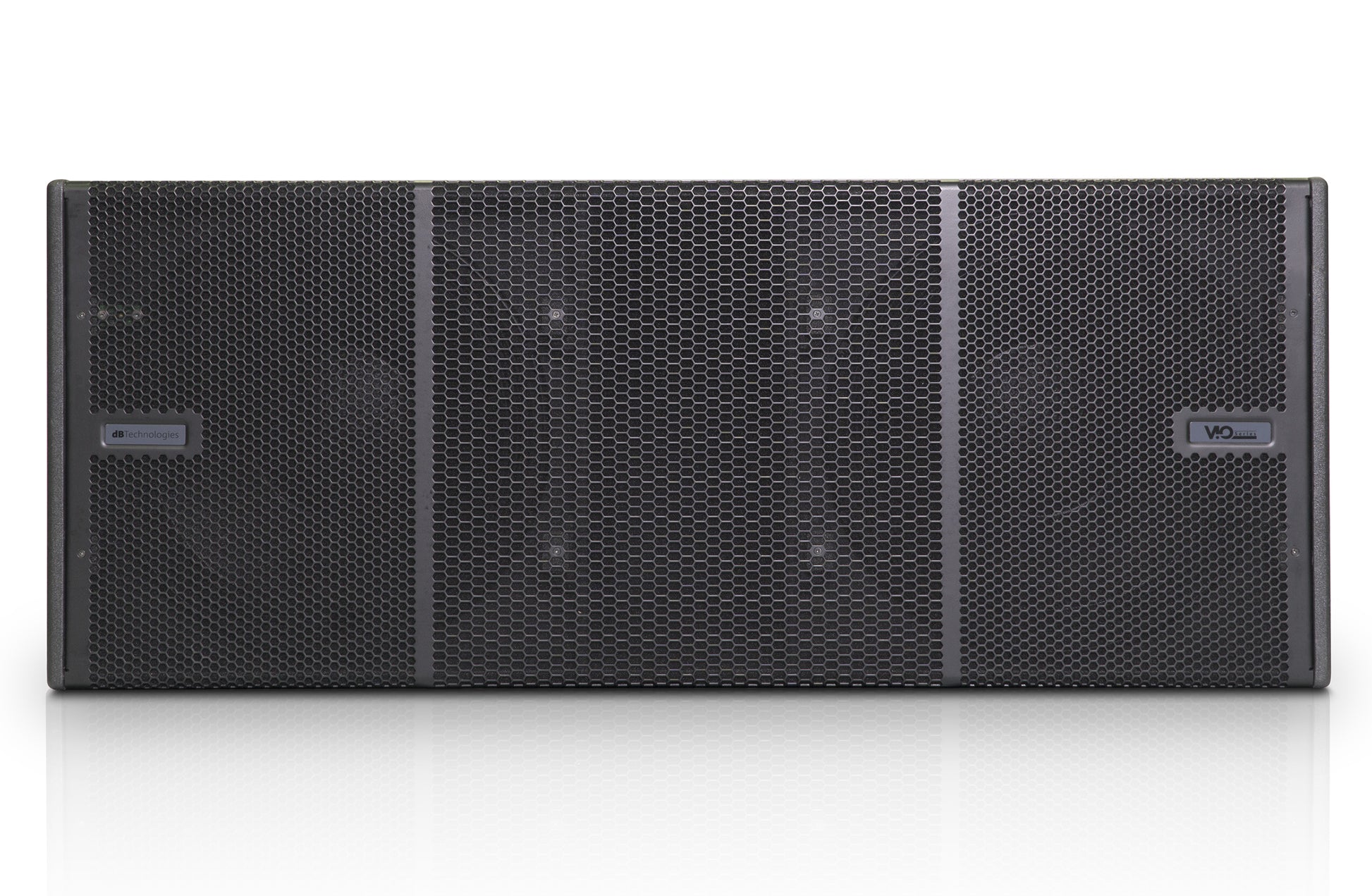

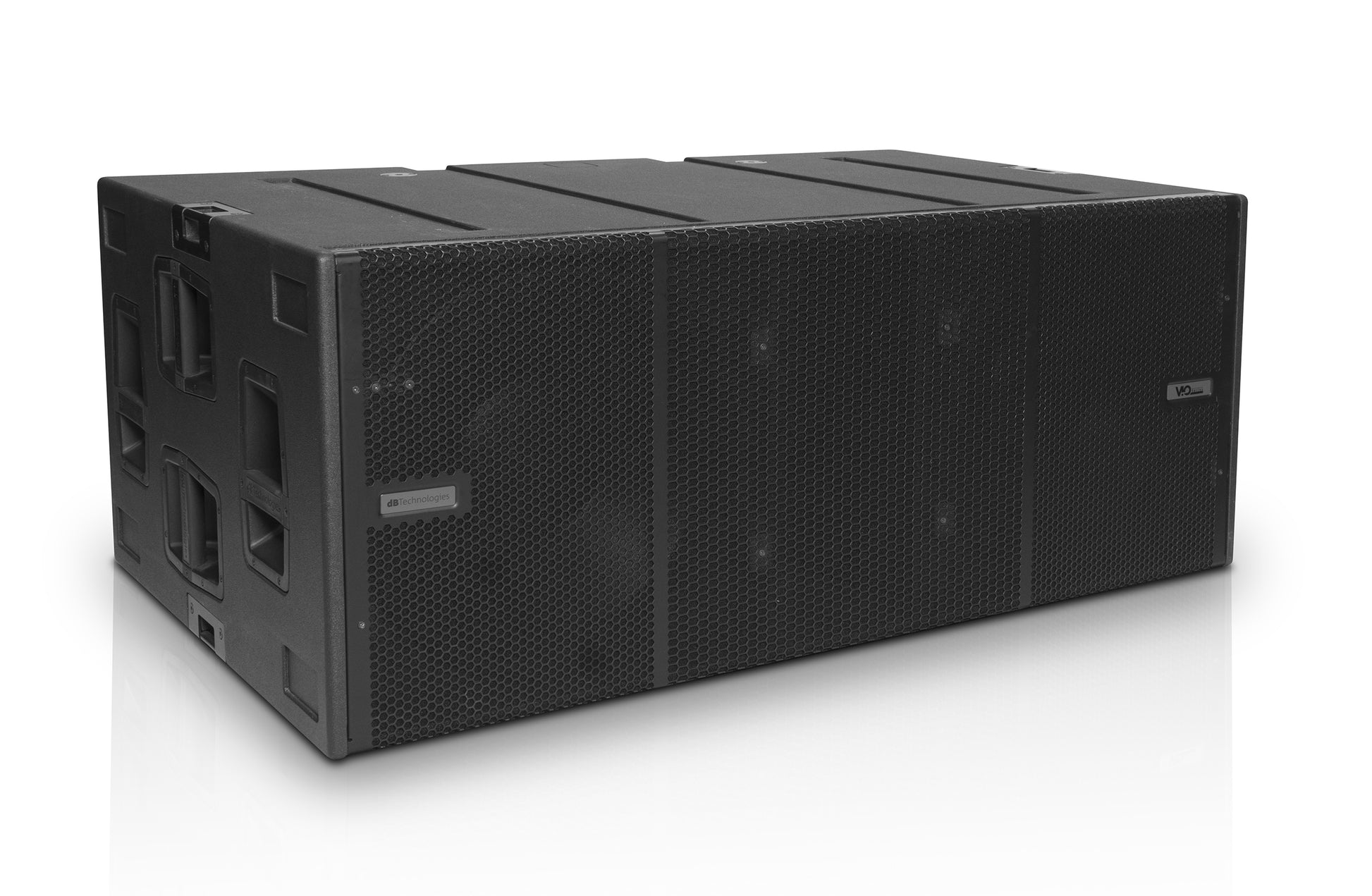

VIO S218

VIO S218

$18,000.00 AUD
$18,000.00 AUD
Sale Sold out
Shipping calculated at checkout.
BASS-REFLEX
POWER
The perfect partner for VIO L212 in larger sound reinforcement applications. A simple, effective dual sub configuration designed to enhance the reproduction of the lowest frequencies, boosted by an advanced DSP control and complete network capability.

Technical
Specifications

Technical Data
Speaker Type
Active Bassreflex subwoofer
Acoustical data
Frequency Response [- 10 dB]
27 Hz (HPF)
Frequency Response [- 6 dB]
28 Hz to cut frequency (Xover dependent)
Max SPL
143 dB
LF
2x18” Neodymium
Voice Coil LF
4”
Directivity
Omnidirectional
Amplifier
Amplifier
3200 W RMS [2x 1600 W RMS Class-D Digipro® G4]
Cooling
Passive convection, internal fan
Power Supply
Full-range SMPS with PFC (100V~-240V~, 50-60Hz)
Processor
Controller
DSP 32 bit
AD/DA Converter
24 bit/96 kHz
Limiter
Peak, RMS, Thermal
Delay Option
0 - 9.9 ms internal | steps of 0.1 ms [on-board]
Crossover Frequency LF-HF
Selectable 60-110 Hz + Full Range (8 steps)
LF-Xover out slope
24 dB/Octave

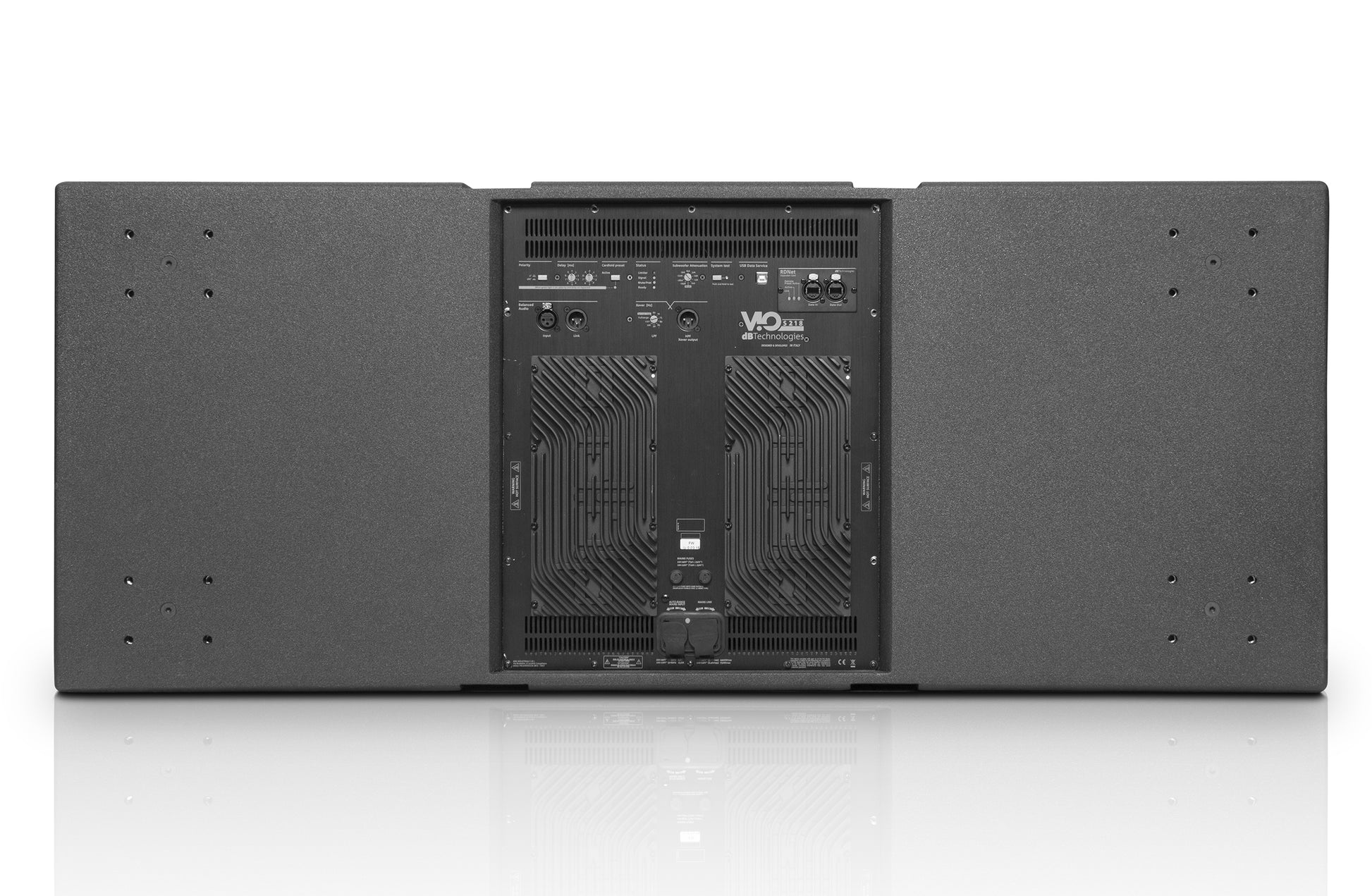

Input
Signal Input
1x XLR balanced
1x USB Data Service
Signal Output
1x XLR balanced
Network
RDNet Card (1x RJ45 IN 1x RJ45 Link)
Dante Card [Optional]
Power Socket
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls
1x Input Attenuation Rotary Encoder
2x Delay Rotary Encoder (0-9.9 ms)
1x Polarity Inversion Switch (0° or 180°)
1x Cardioid mode Switch
1x X-Over Frequency Rotary Encoder (8 steps)
Special Features
NFCTM and Frontal LED Identification System
380V Resistant SMPS
IPOS Intelligent Power-On Sequence
Opto-isolated floating pre-amp
System Test (transducers diagnostics)
Mechanics
Housing
Multiplex plywood - Polyurea painting

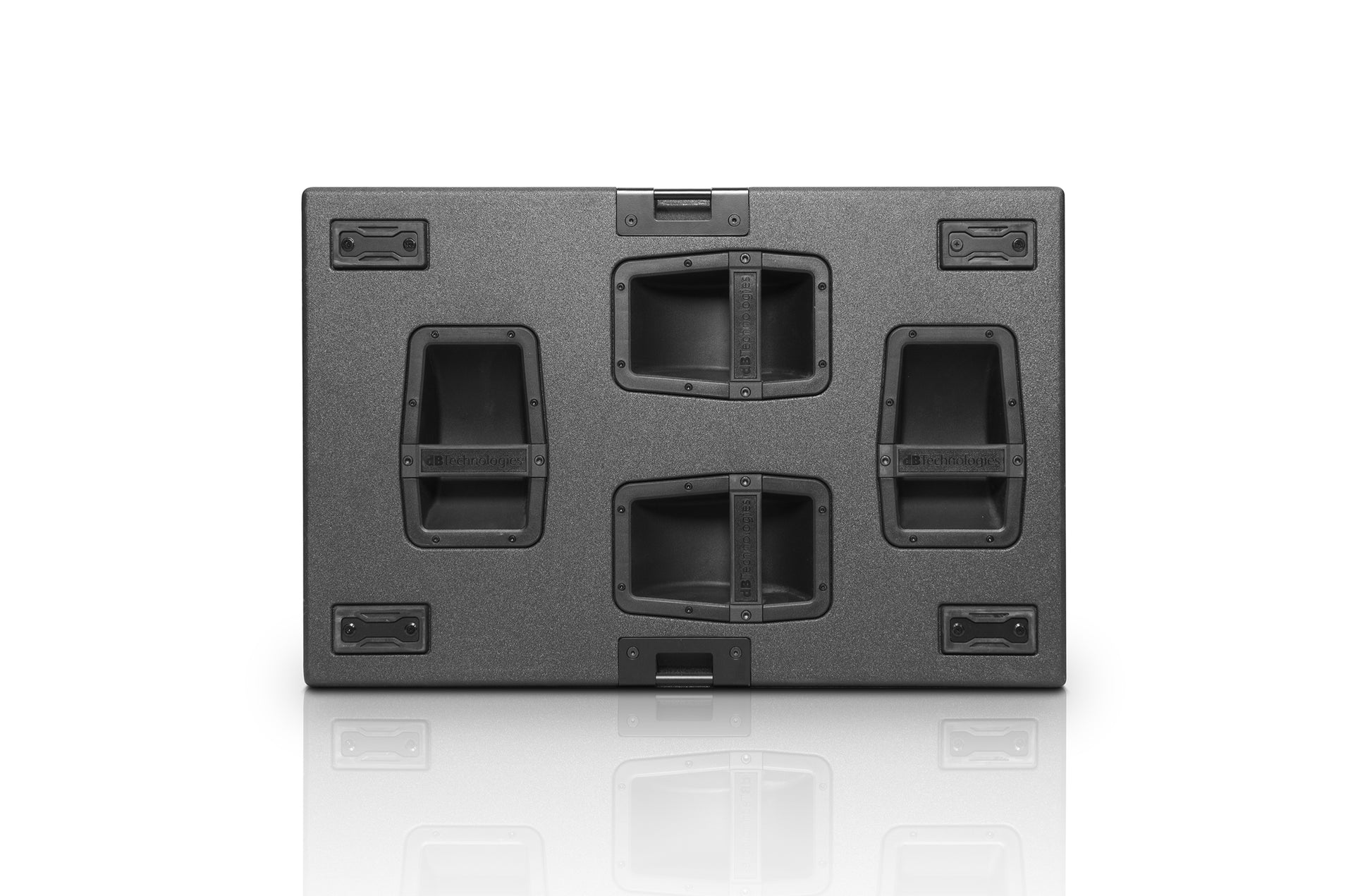

Handles
4x Side. Aluminium
Raincover
Included
Rigging Points
2x Pick Points on top for DRK-210 rigging frame
Width
1300 mm (51.18 in)
Height
520 mm (20.47 in)
Depth
800 mm (31.5 in)
Weight
85.6 kg (188.72 lbs)
