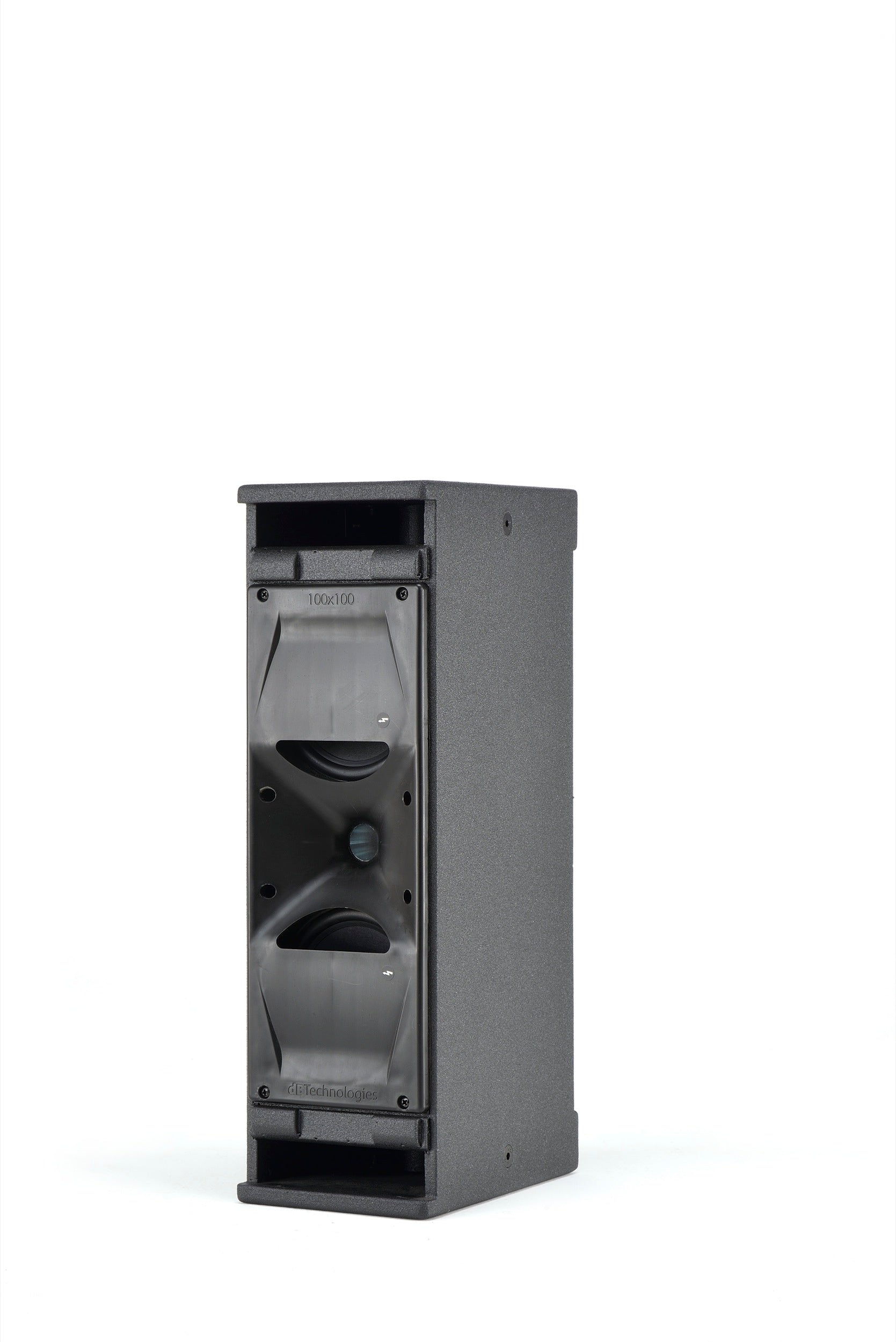

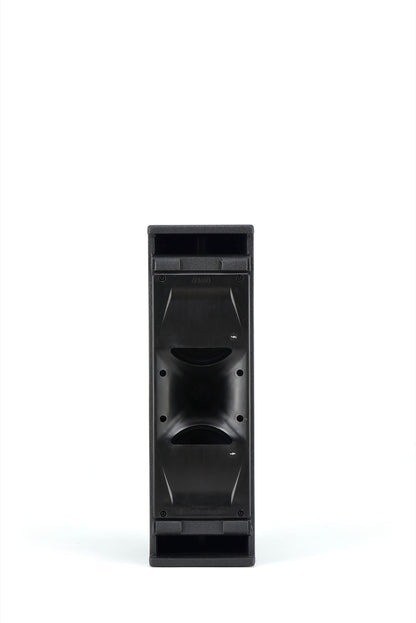

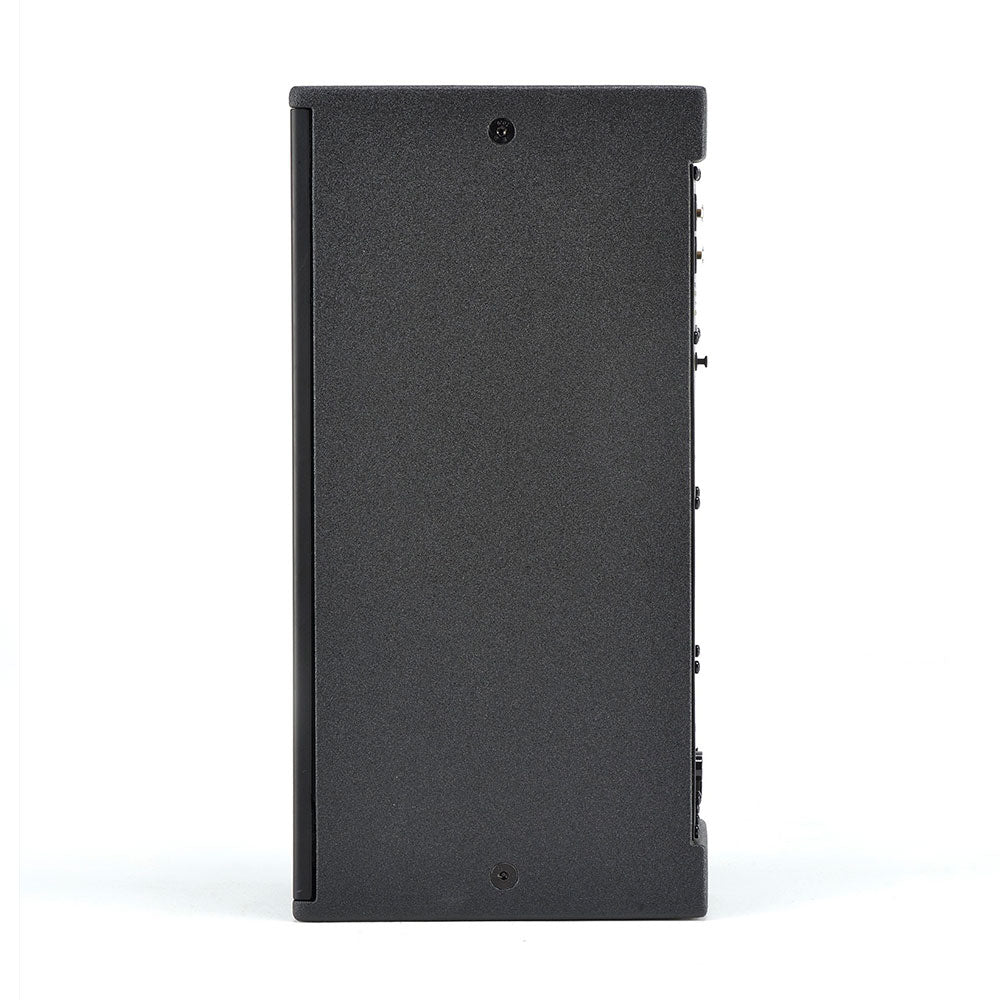

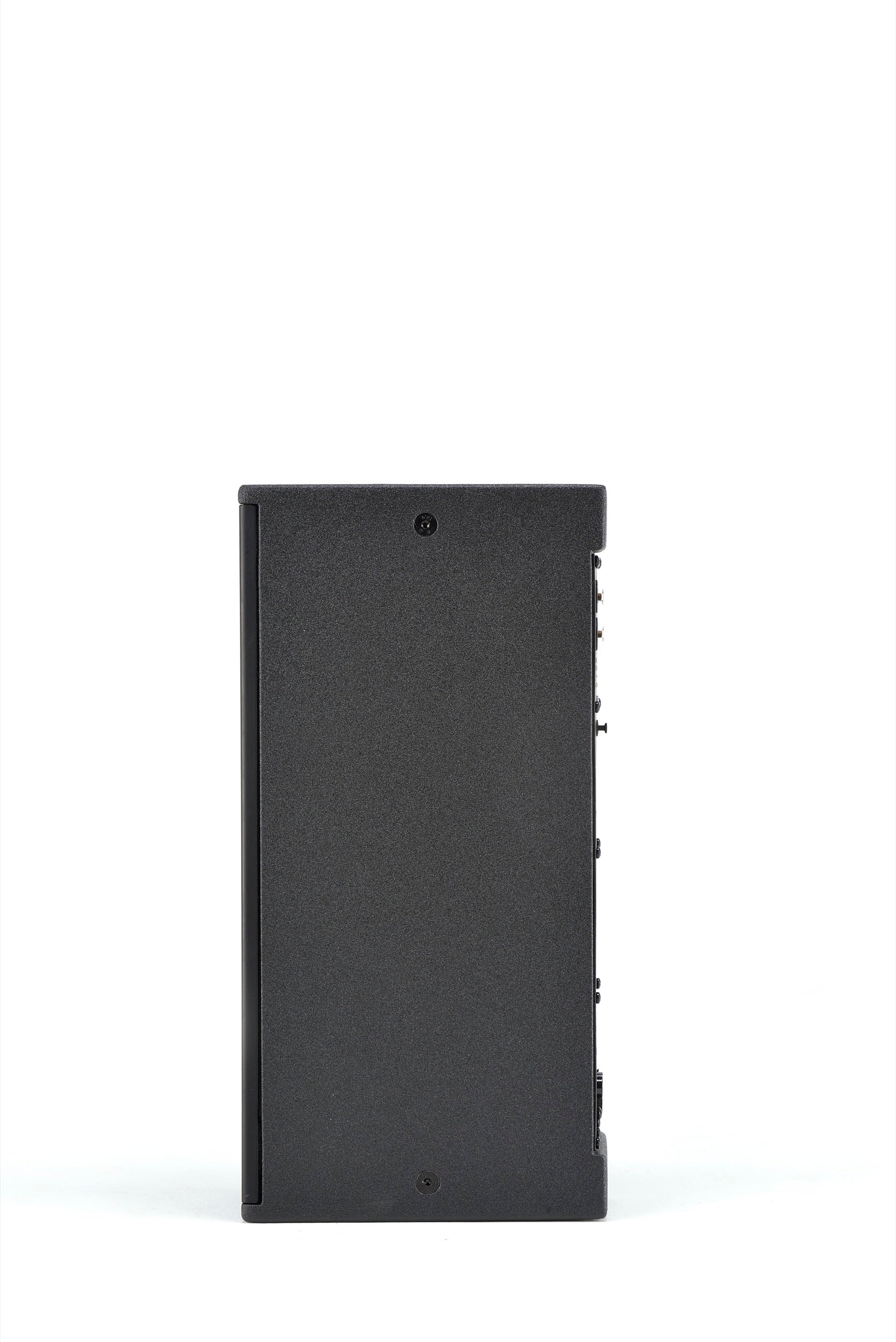

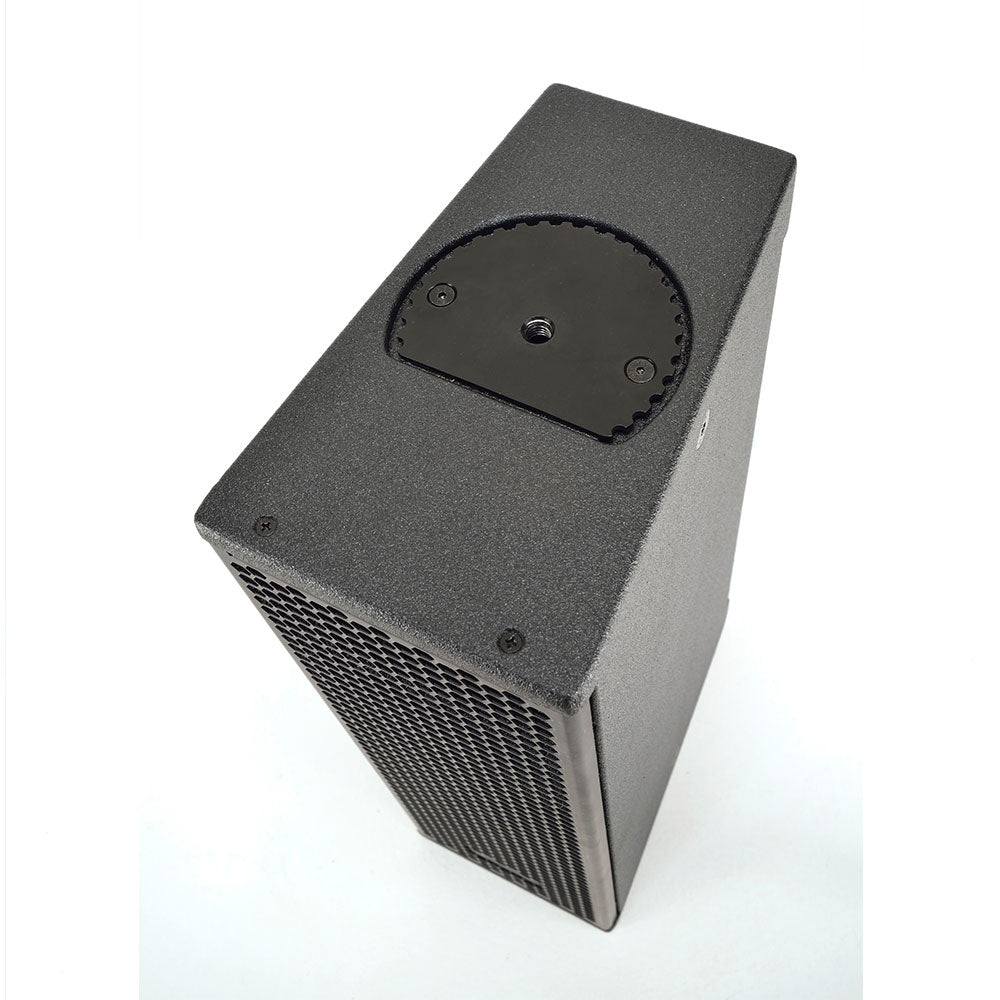

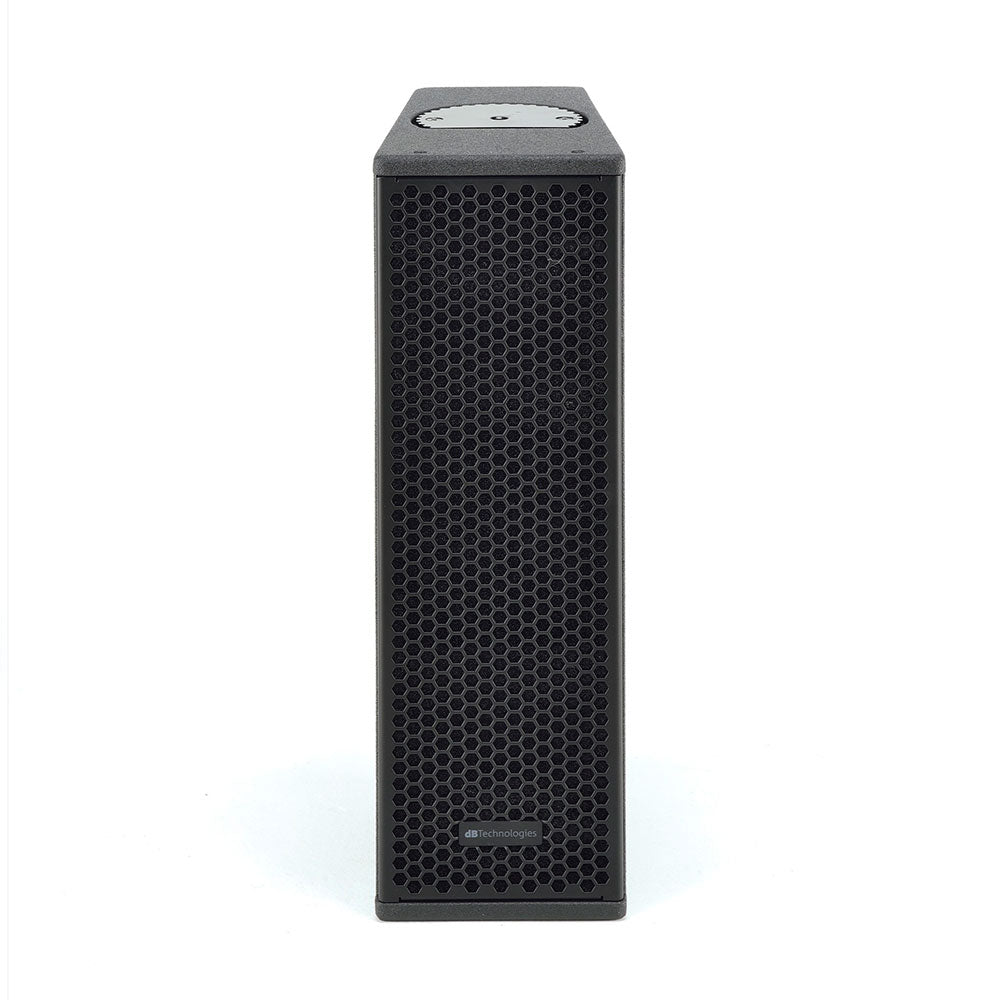

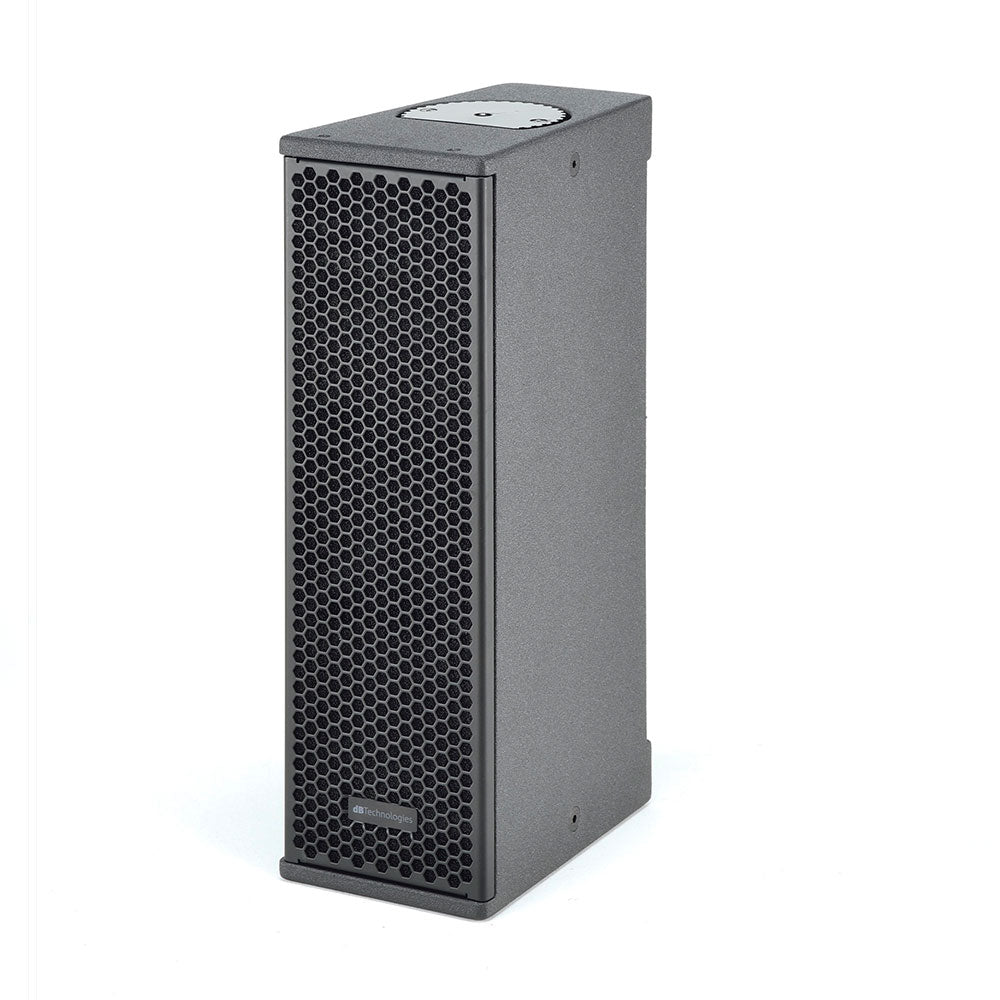

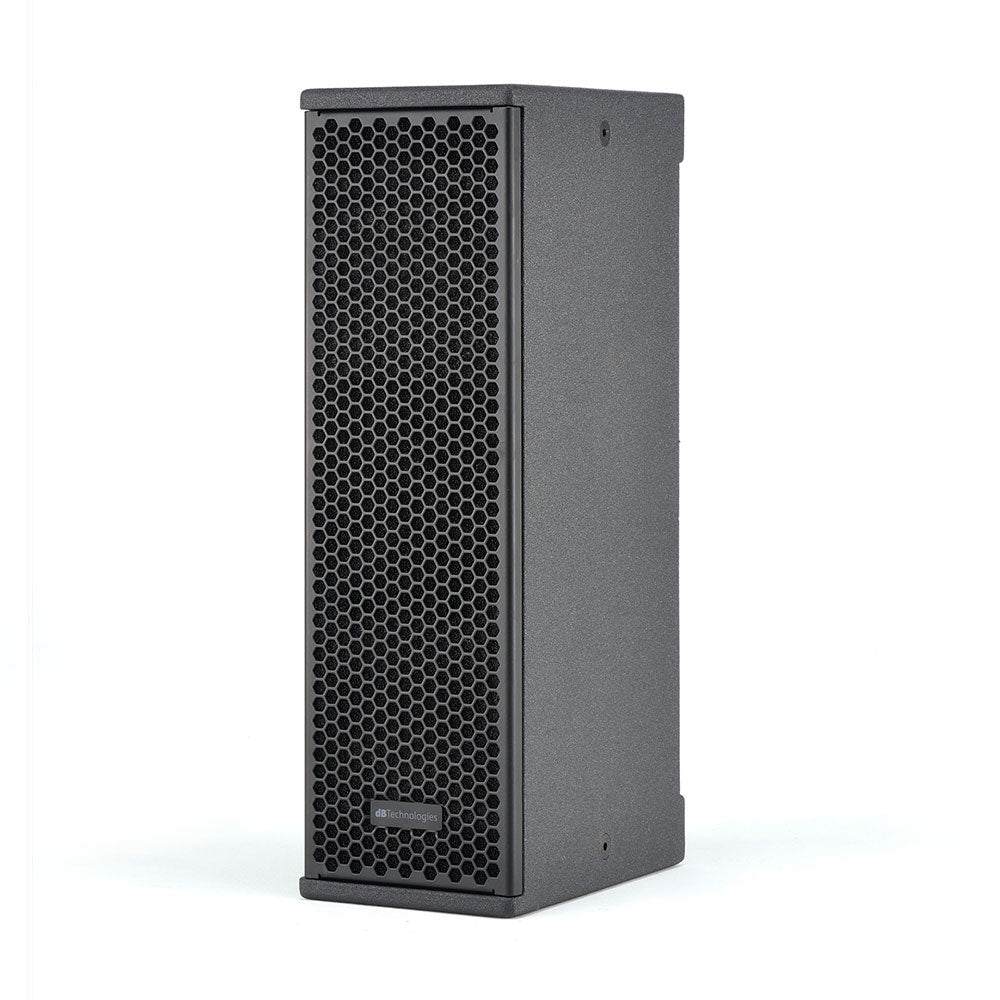

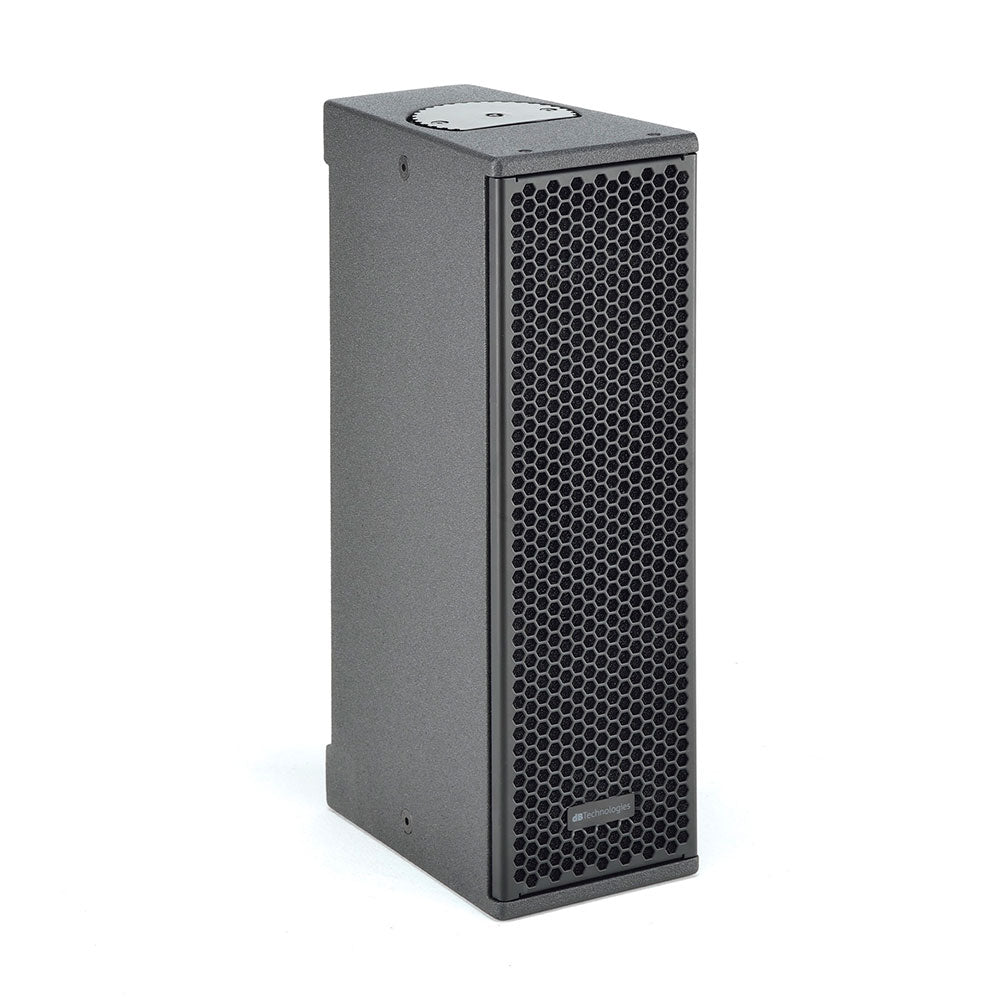

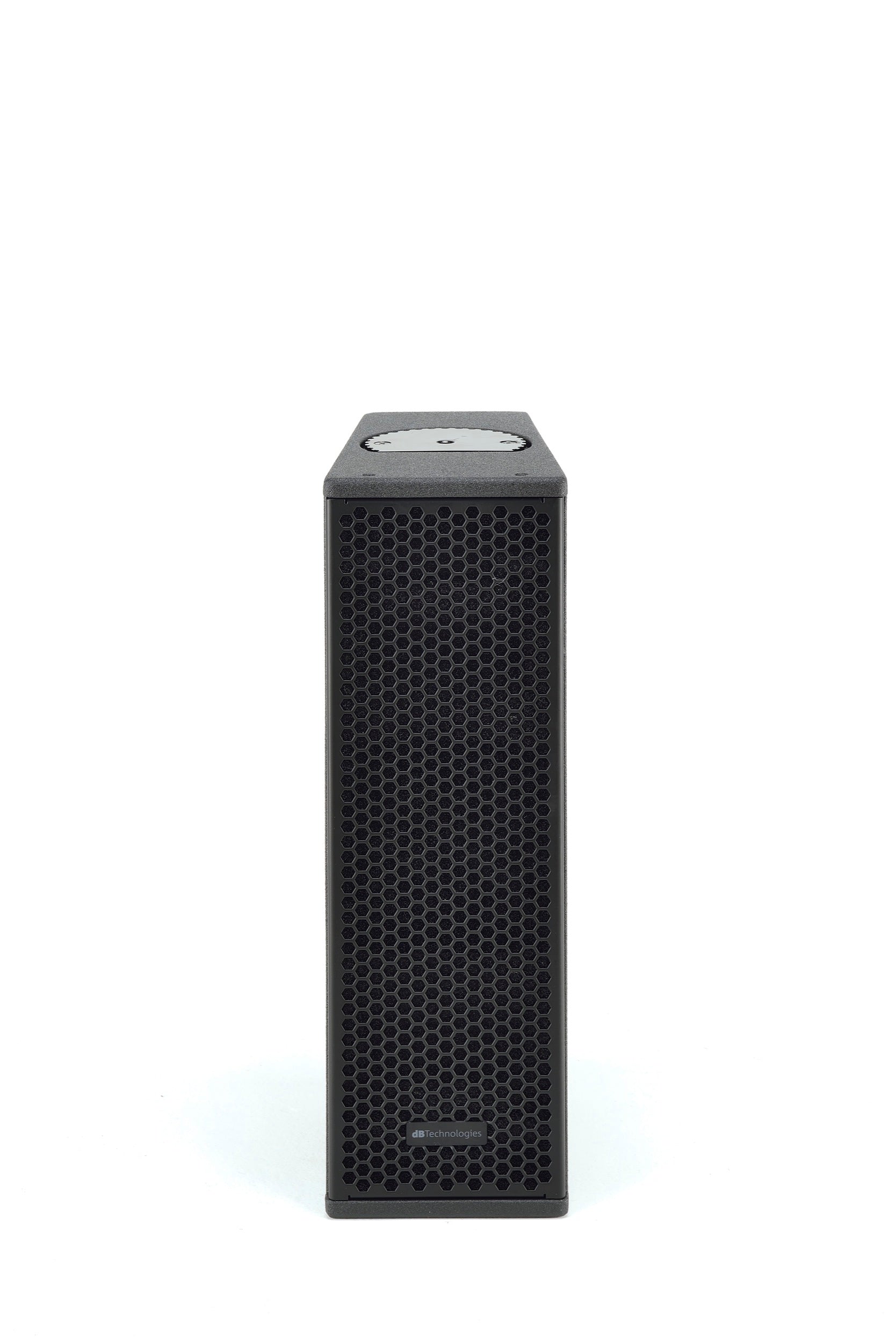

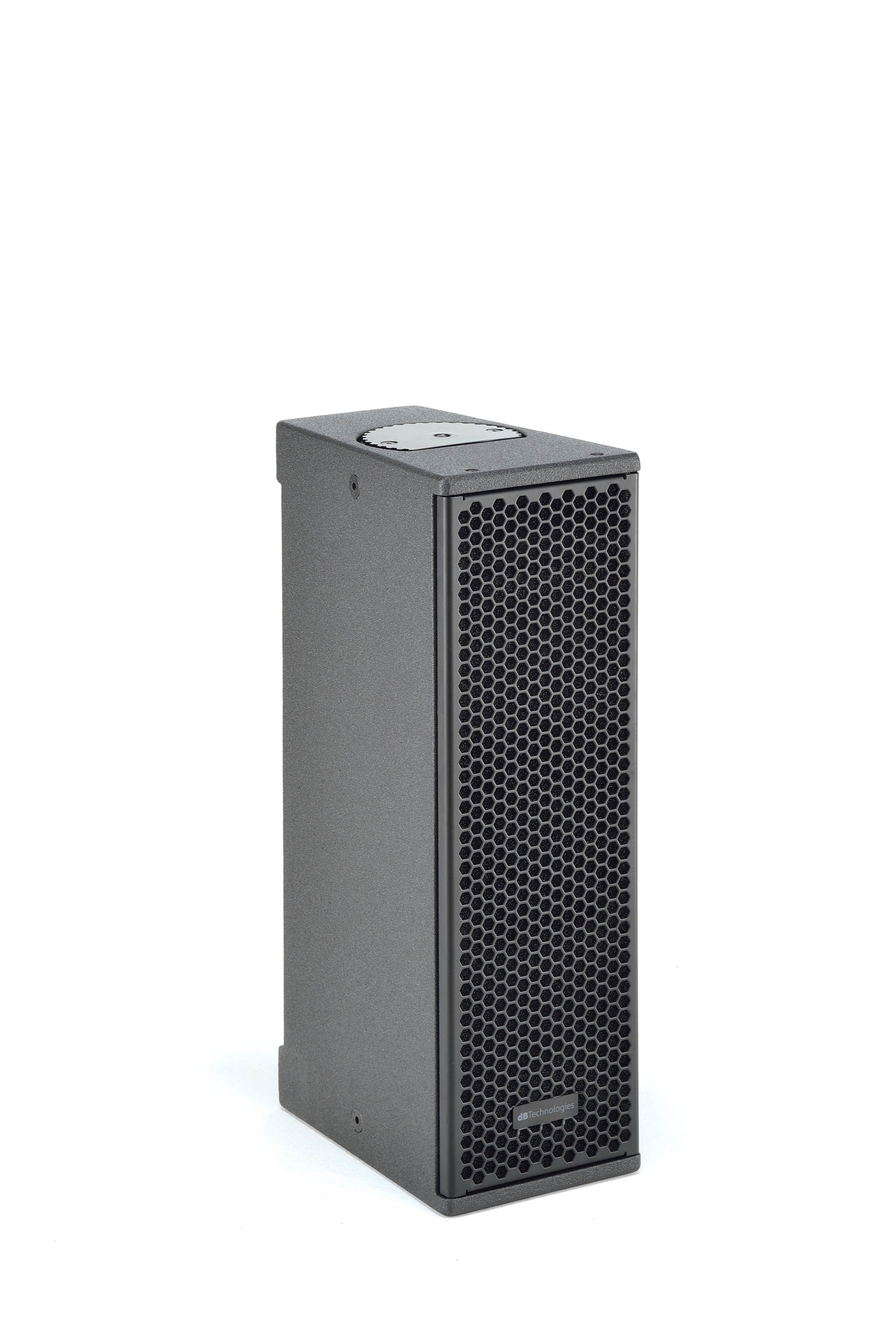

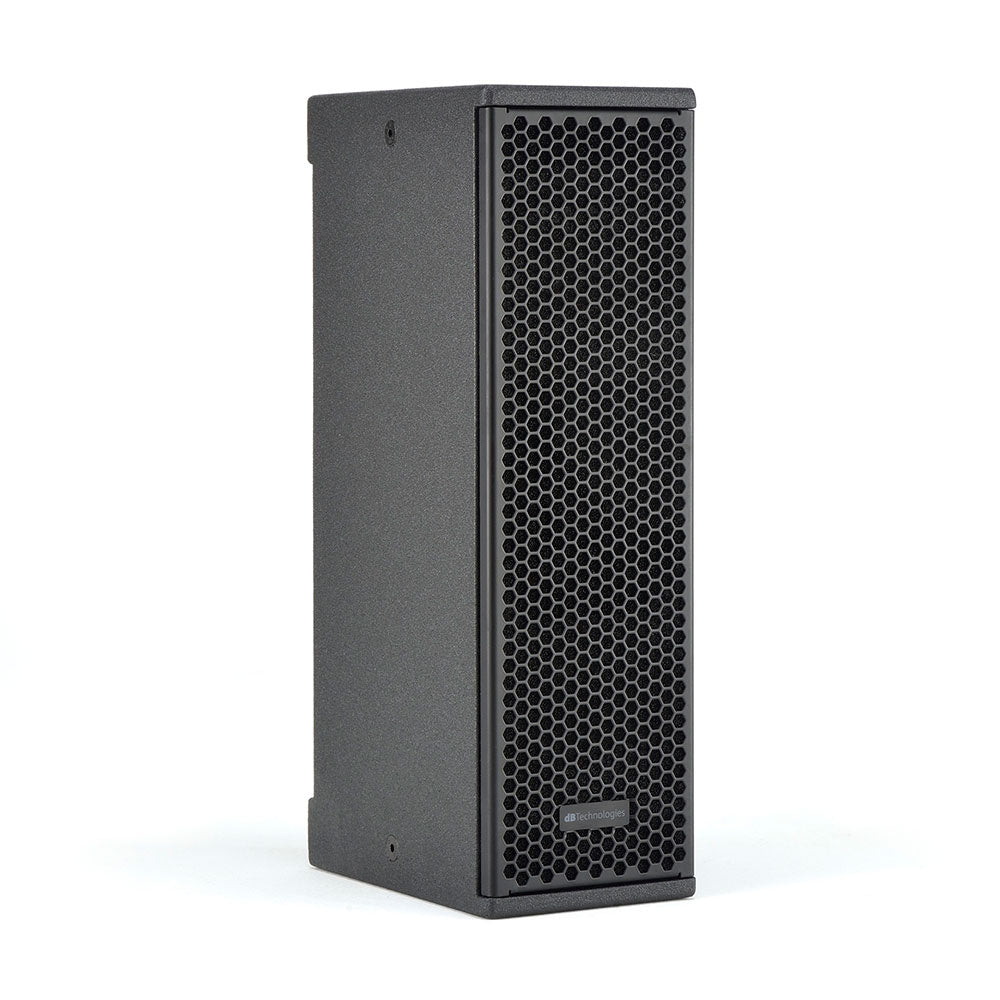

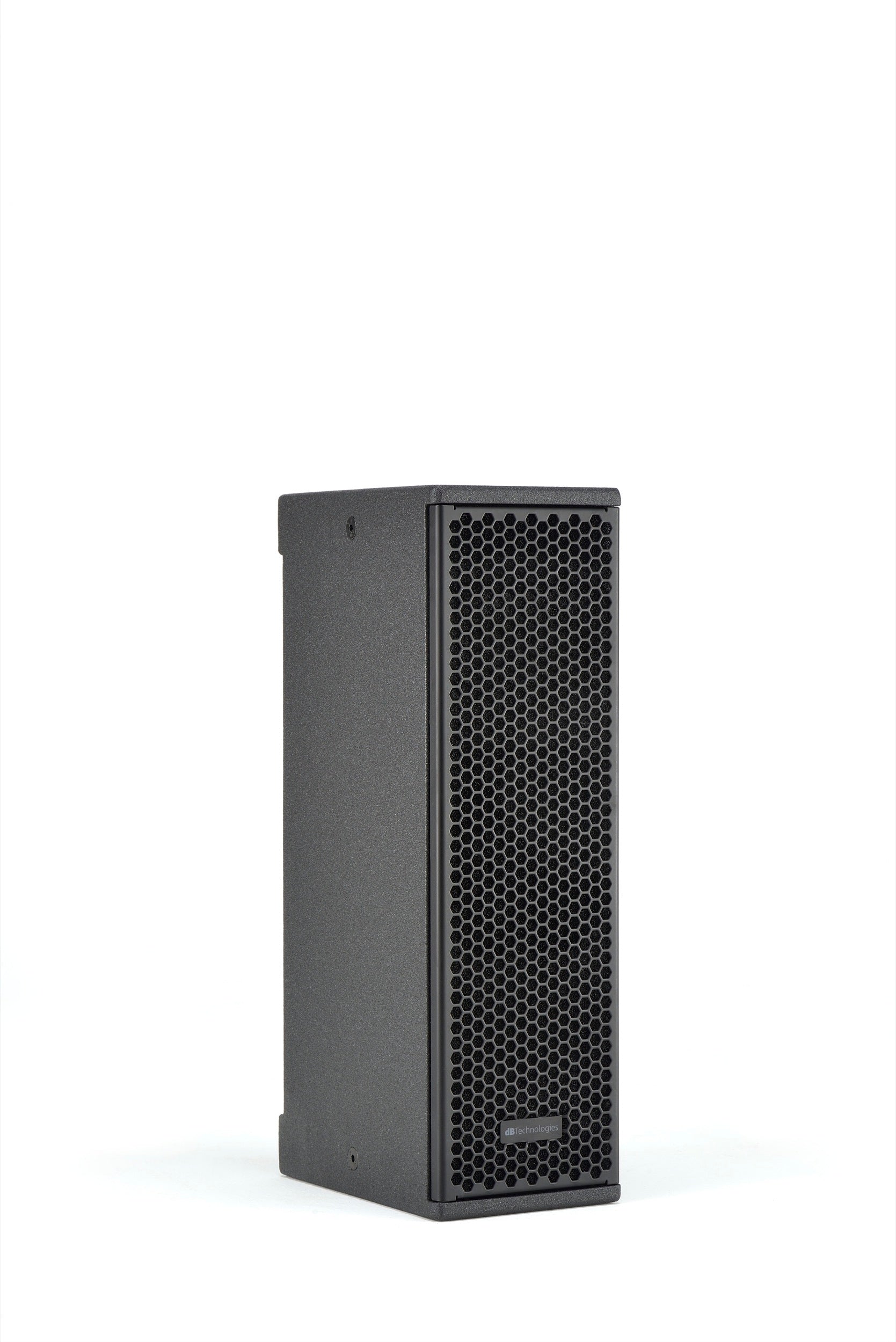

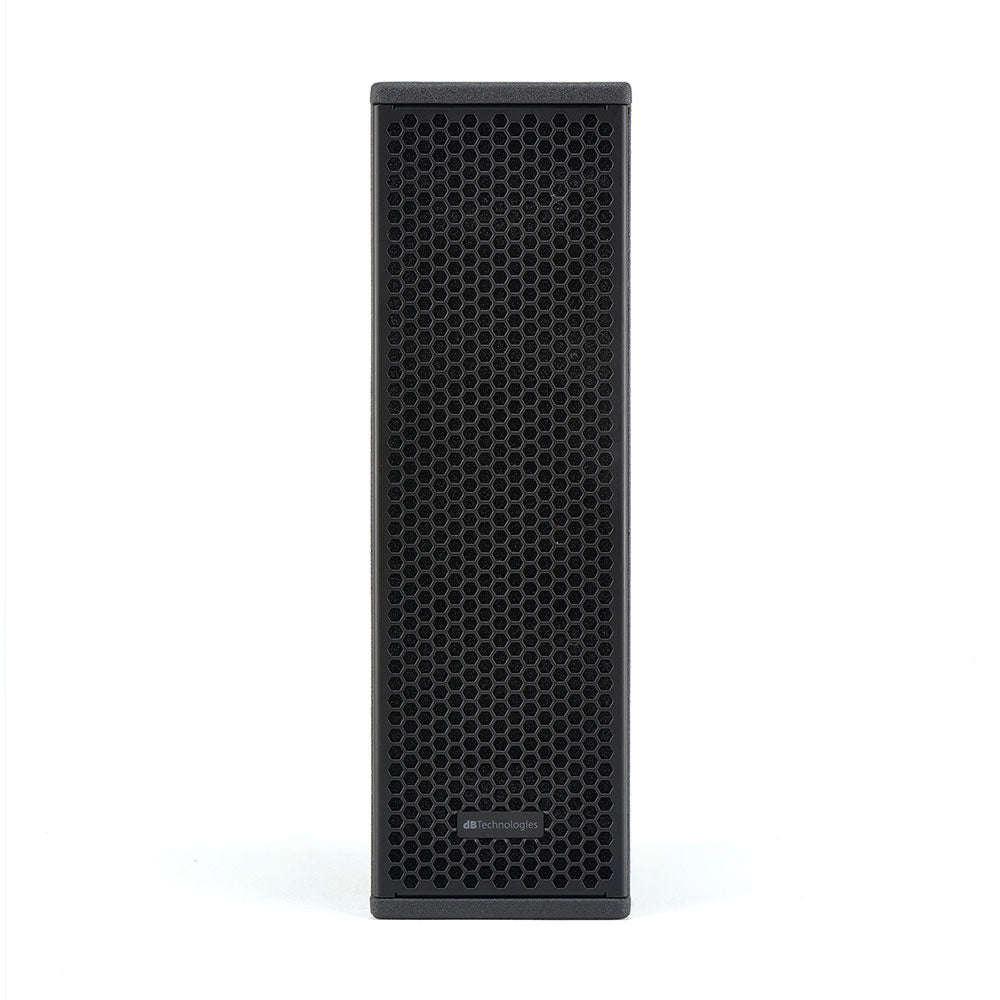

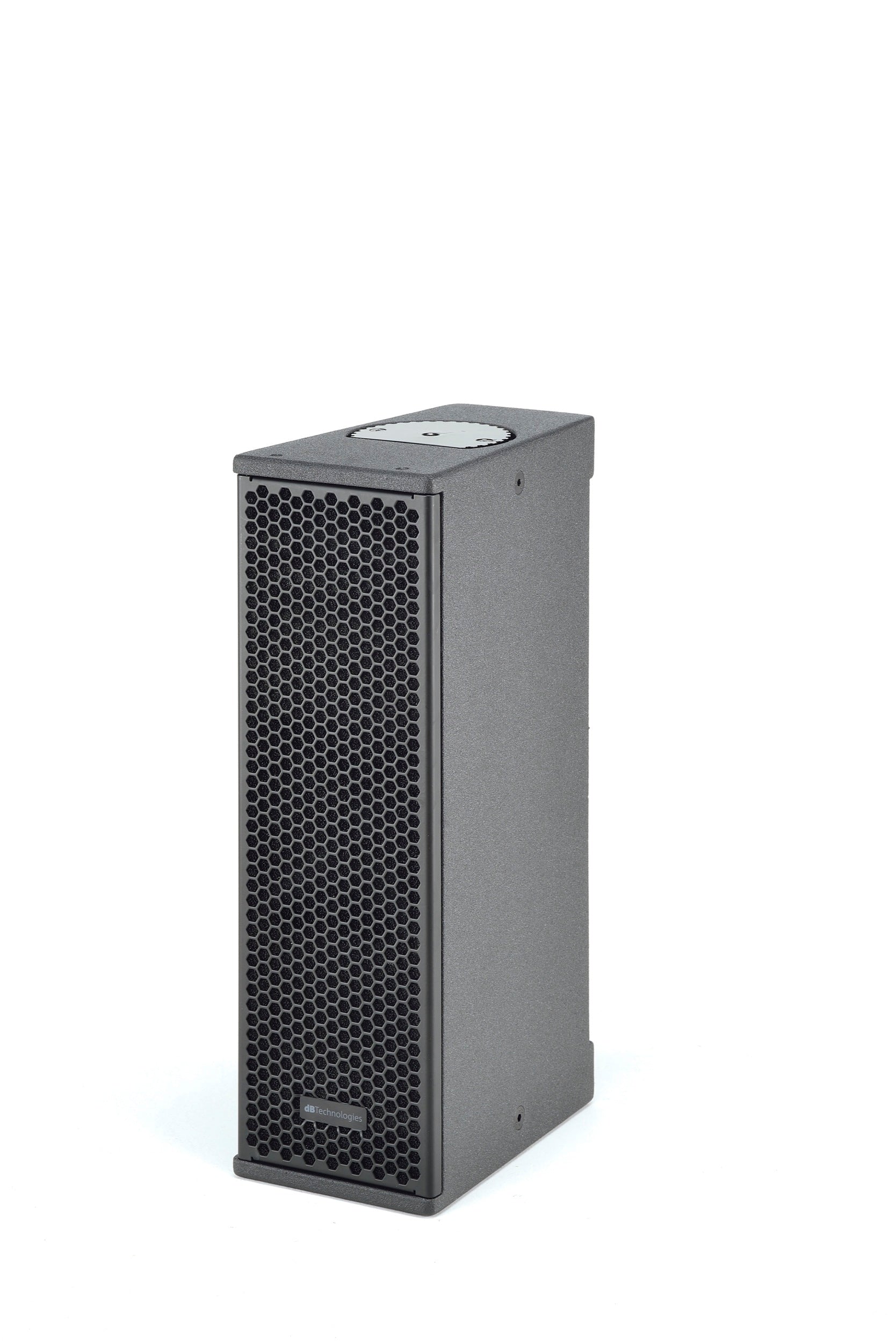

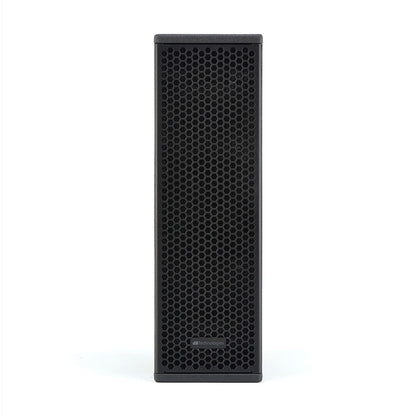

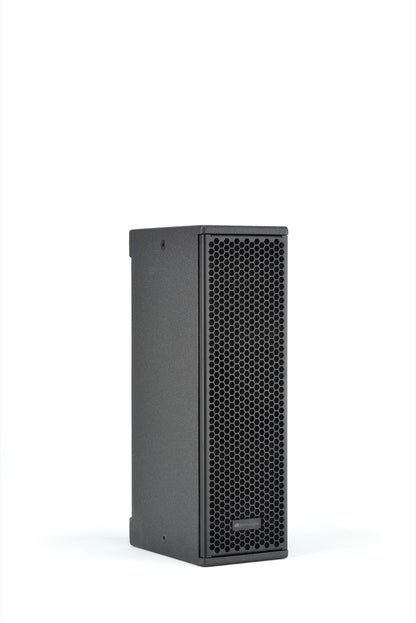

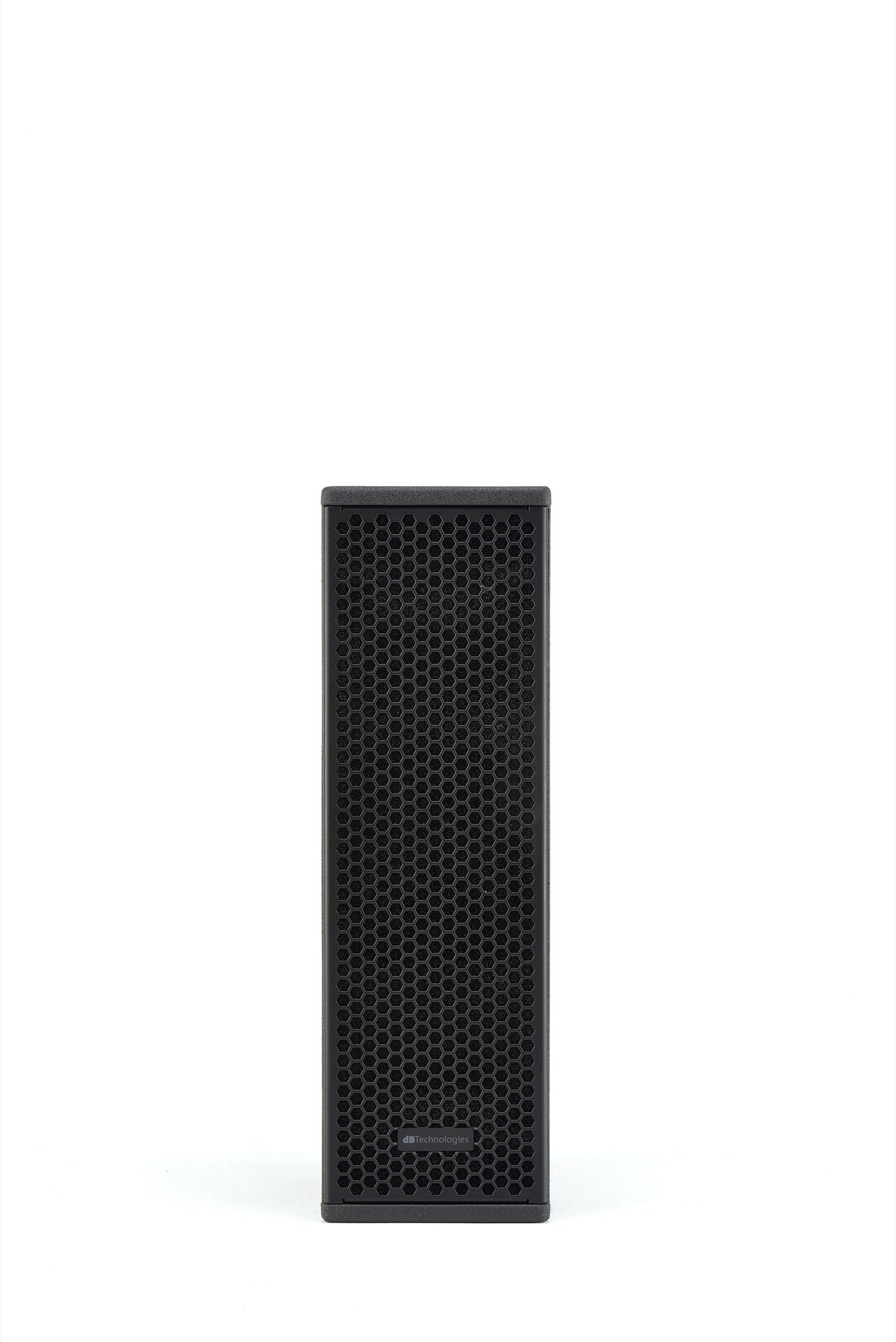

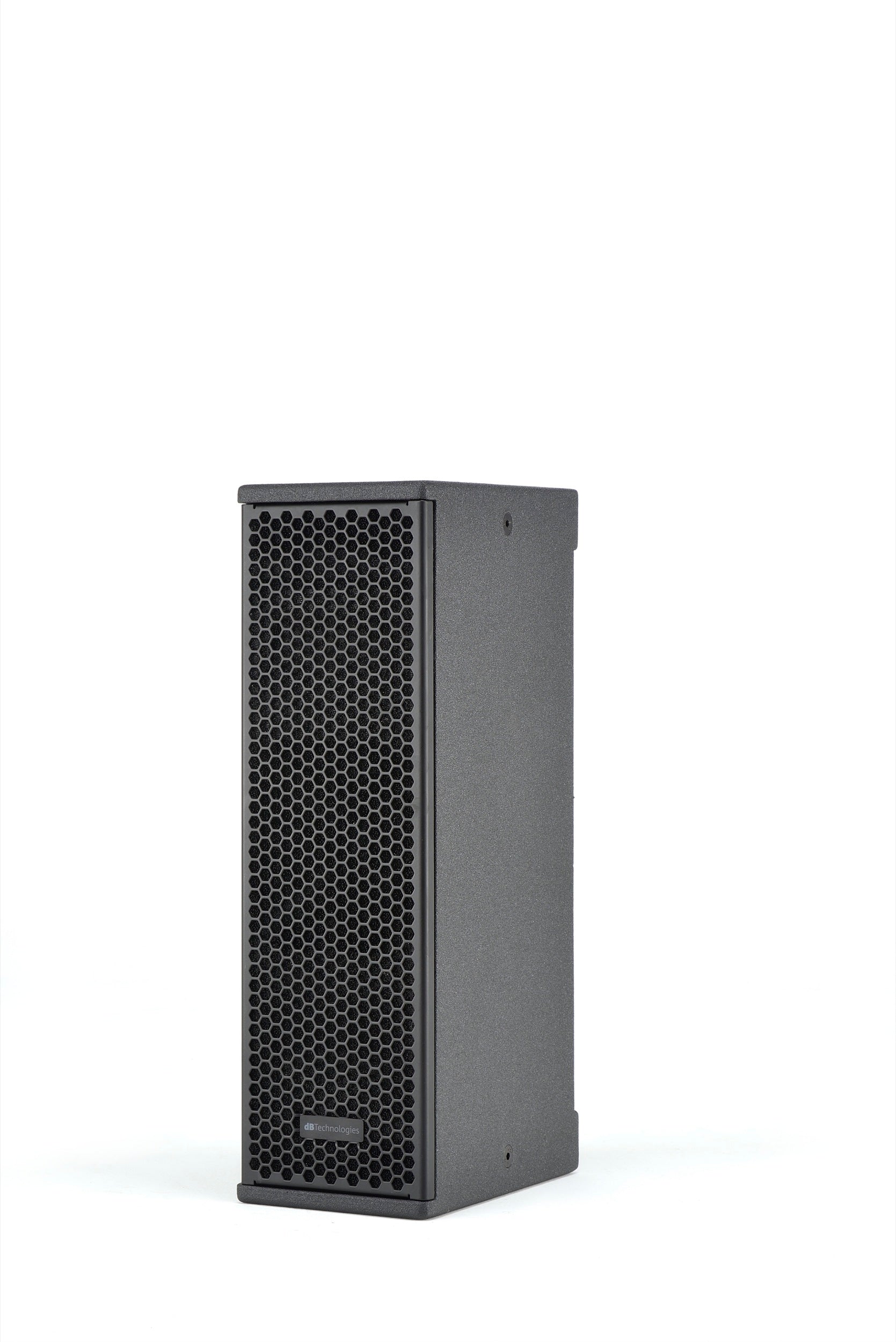

A revolution in VIO X family: newly born VIO X205 condenses the powerful and detailed sound of the ultimate dBTechnologies point source series into a small, ultra-performing cabinet. VIO X205 acts as the most precise and versatile unit in any tour-grade application as well as in fixed installations.
Technical Specifications
Technical Data
Speaker Type
2 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB]
75 - 21.000 Hz
Frequency Response [-6dB]
80 - 20.000 Hz
Max SPL
126 dB
HF
1x 1”, 1.4 v.c.
LF
2x 5”, 1" v.c

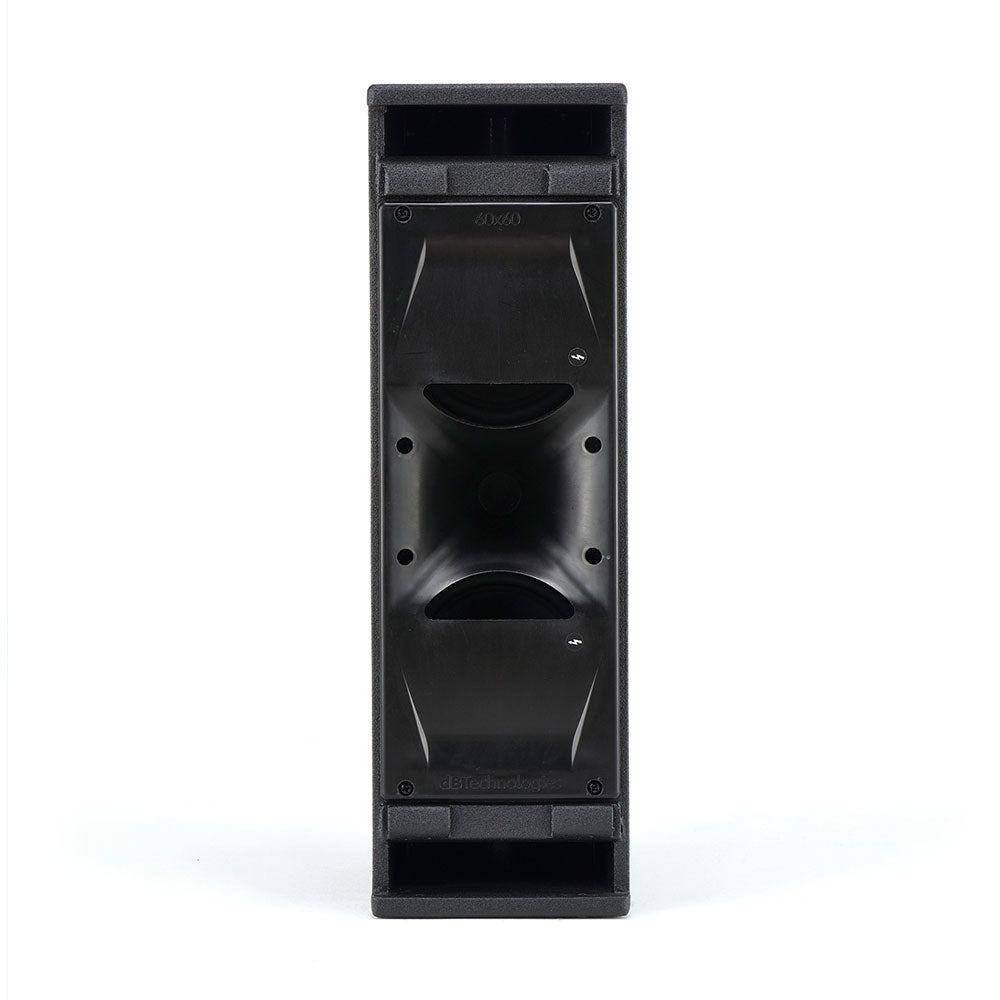

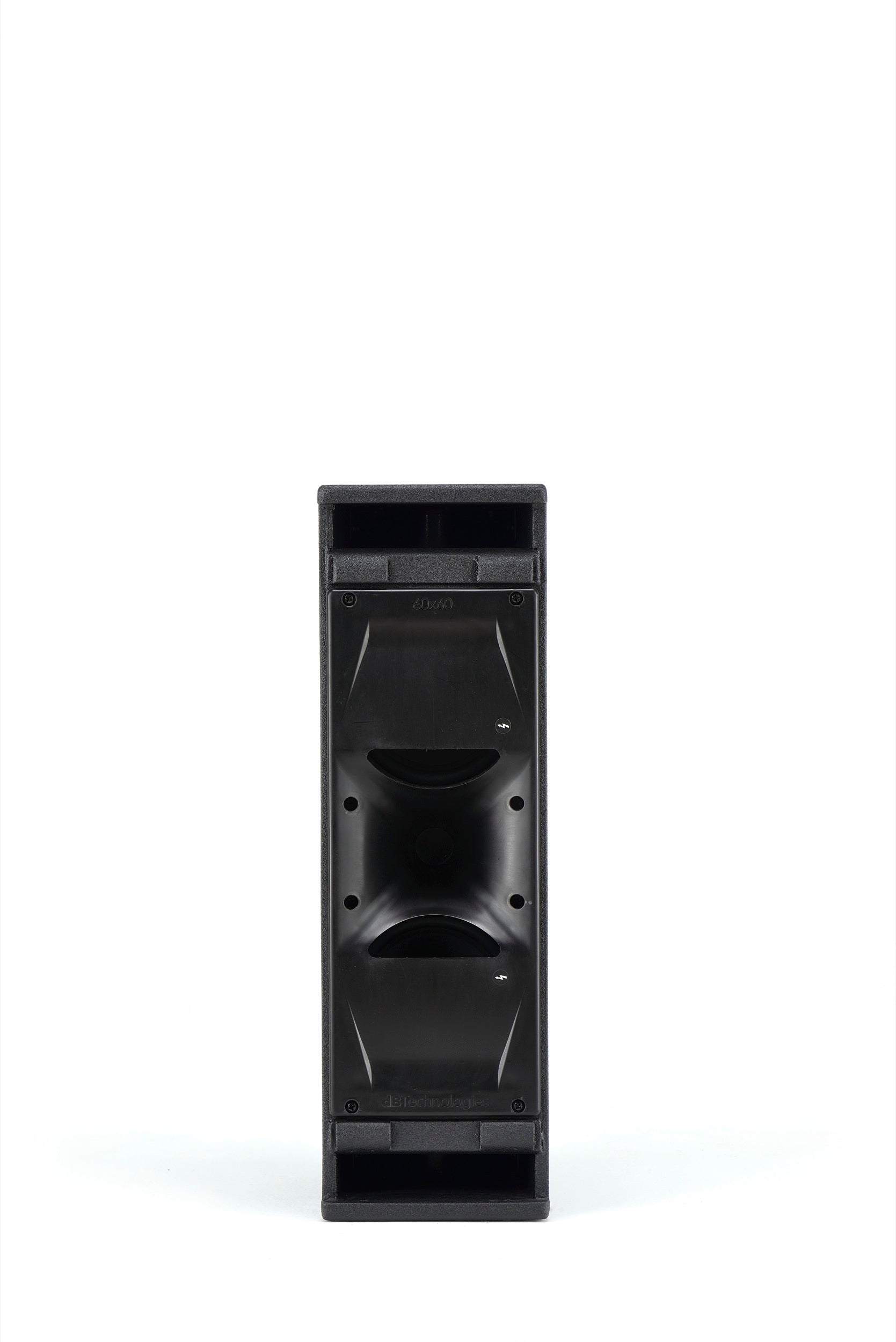

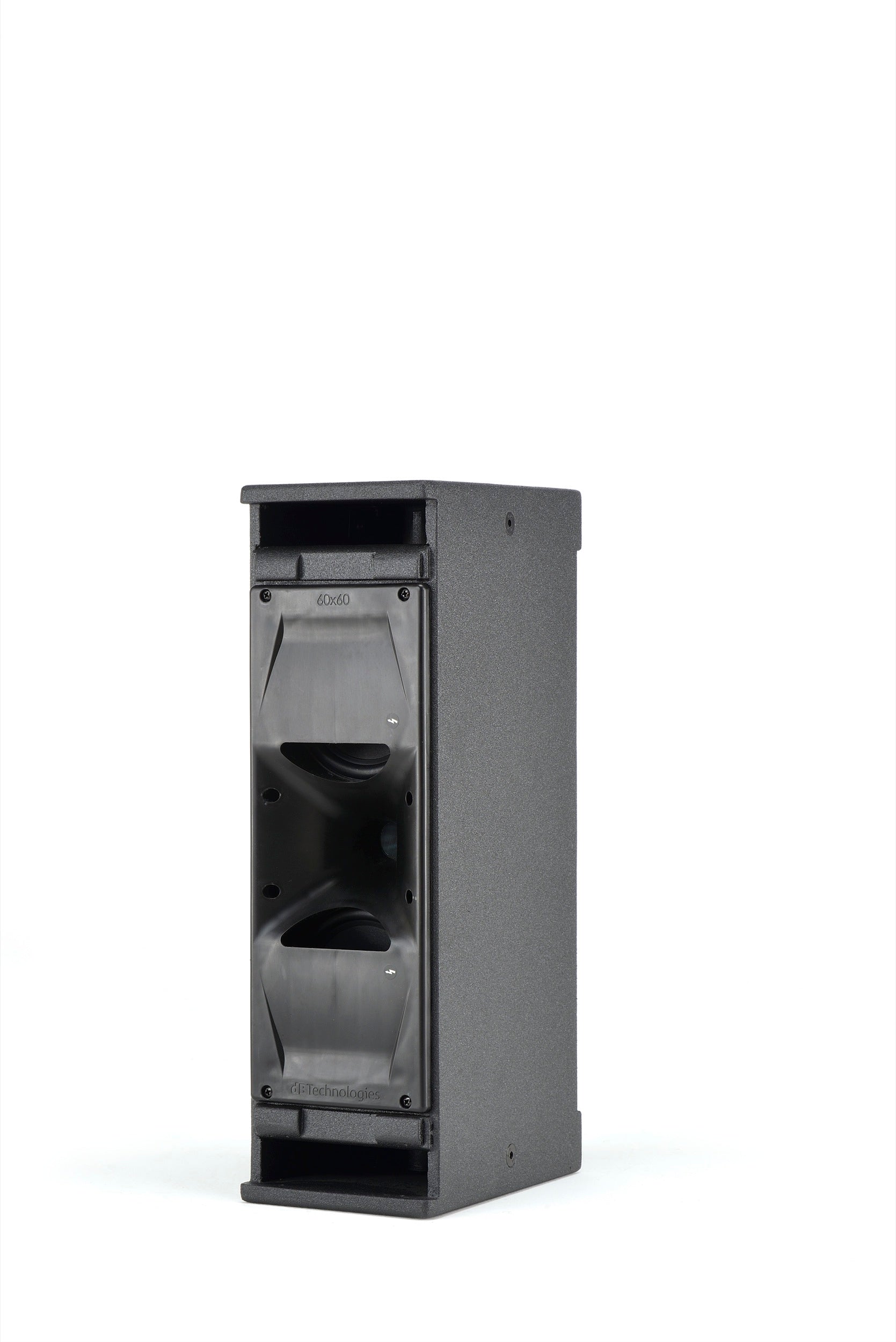

VIO X205-60 Directivity
60° x 60°

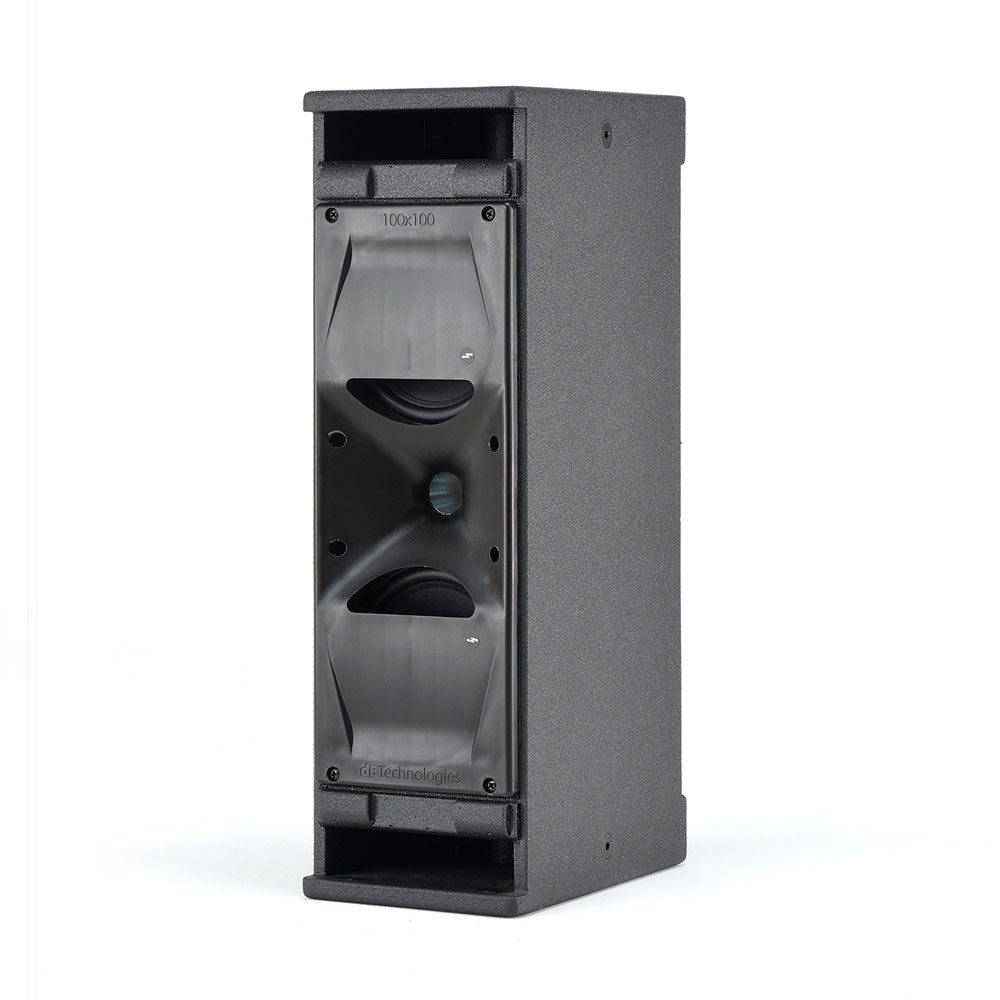

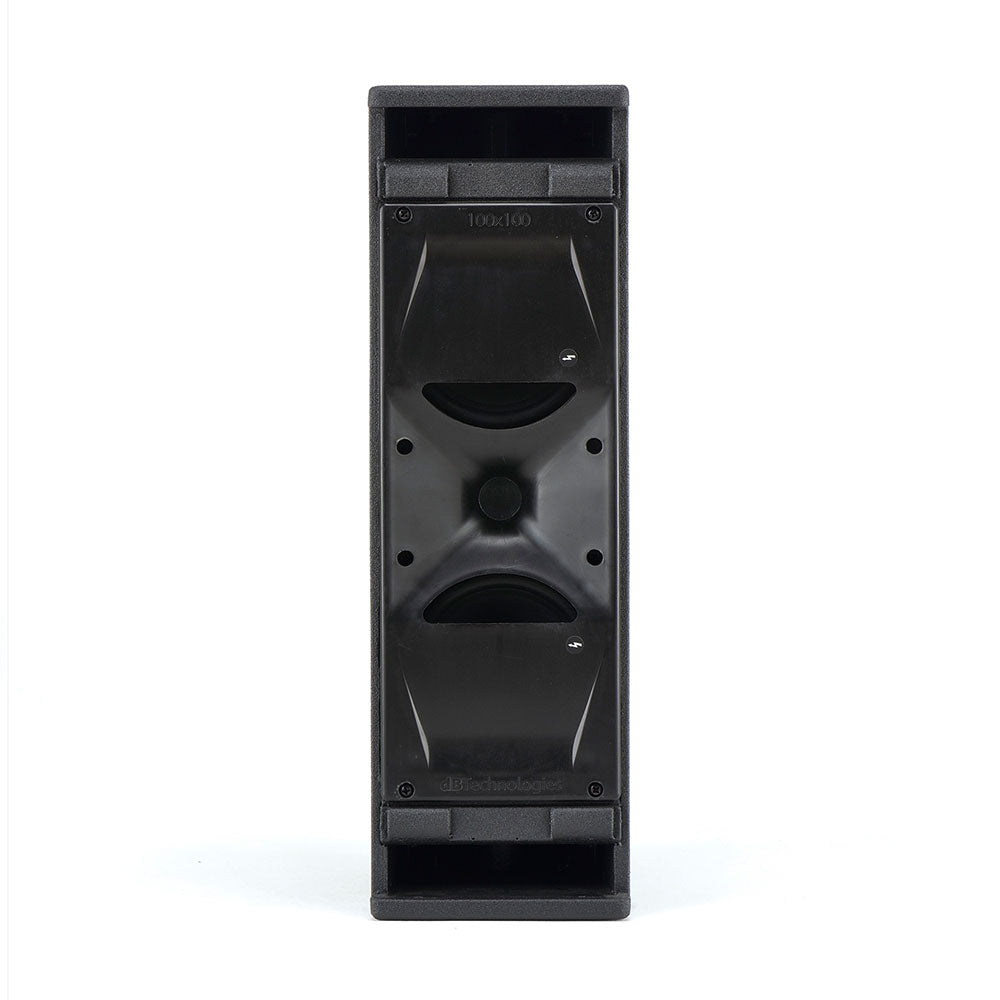

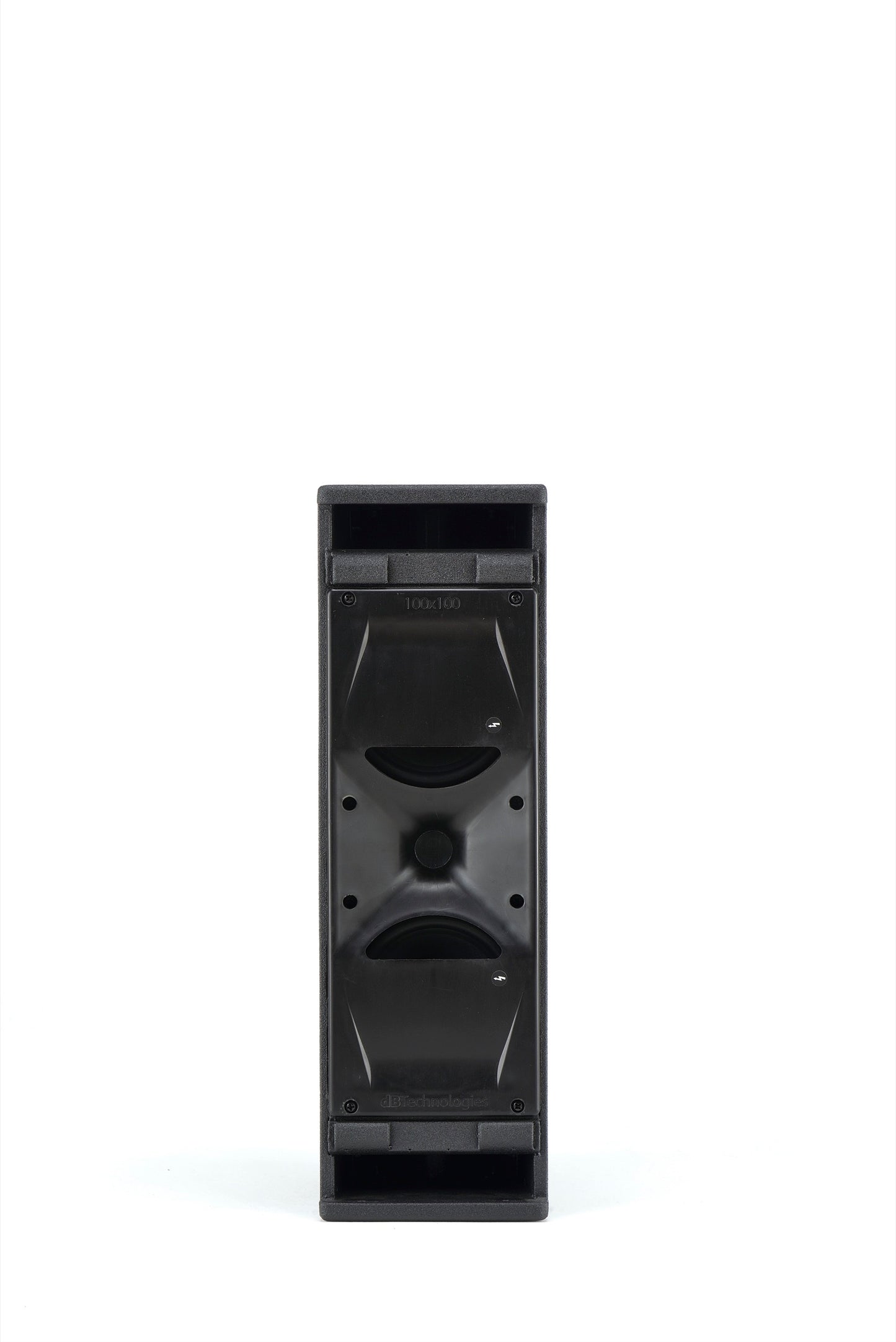

VIO X205-100 Directivity
100° x 100°
Amplifier
Amplifier
400 W RMS Class-D Digipro® G3
Cooling
Convection
Power Supply
Auto-range SMPS
Processor
Controller
DSP 28/56 bit
AD/DA Converter
24 bit/48 kHz
Limiter
Peak, RMS, Thermal
Processing
FIR Linear Phase Filters

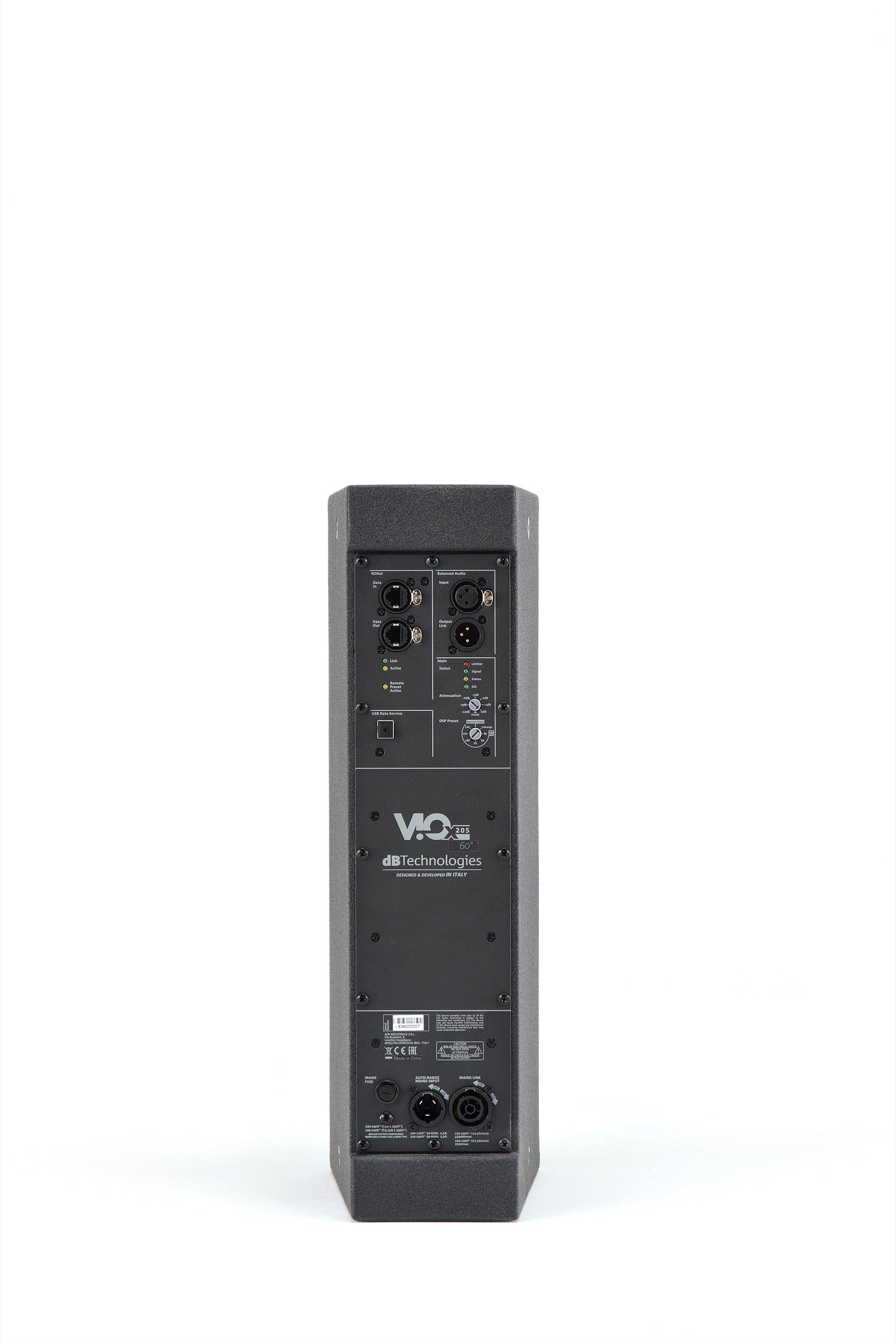

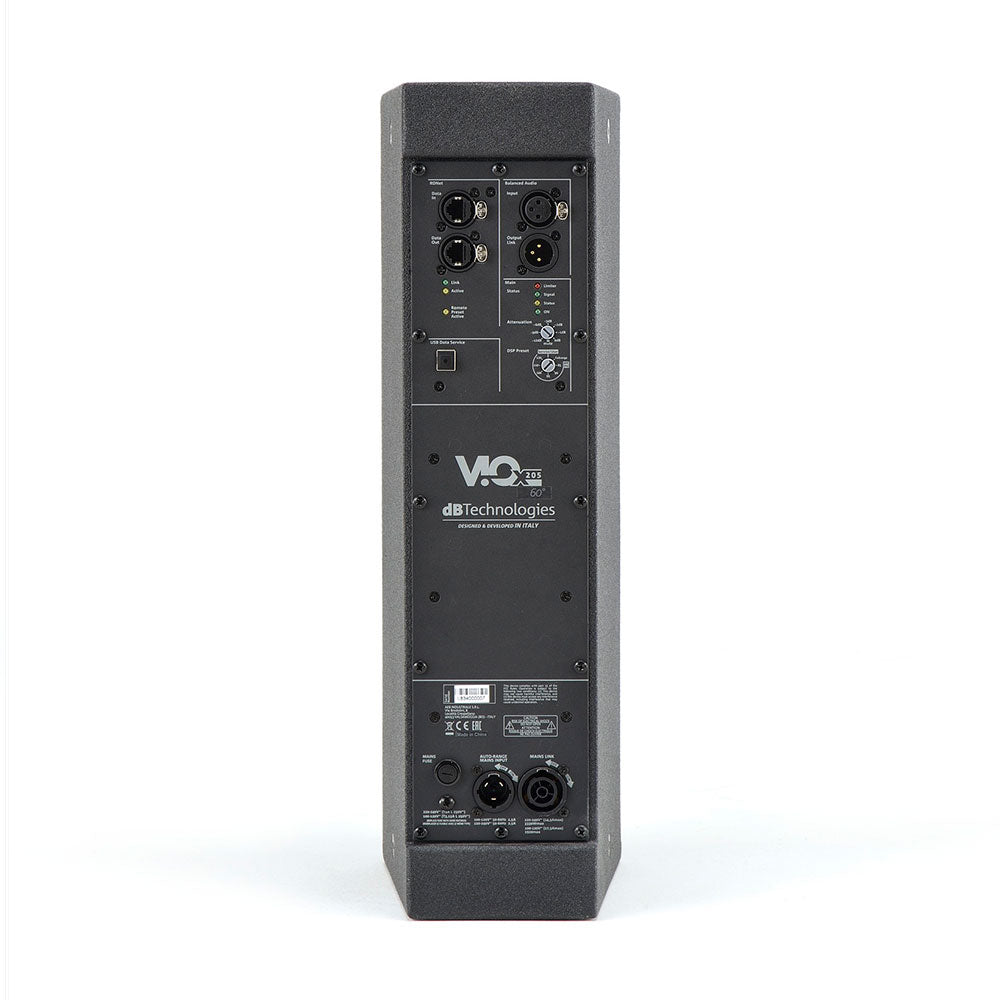

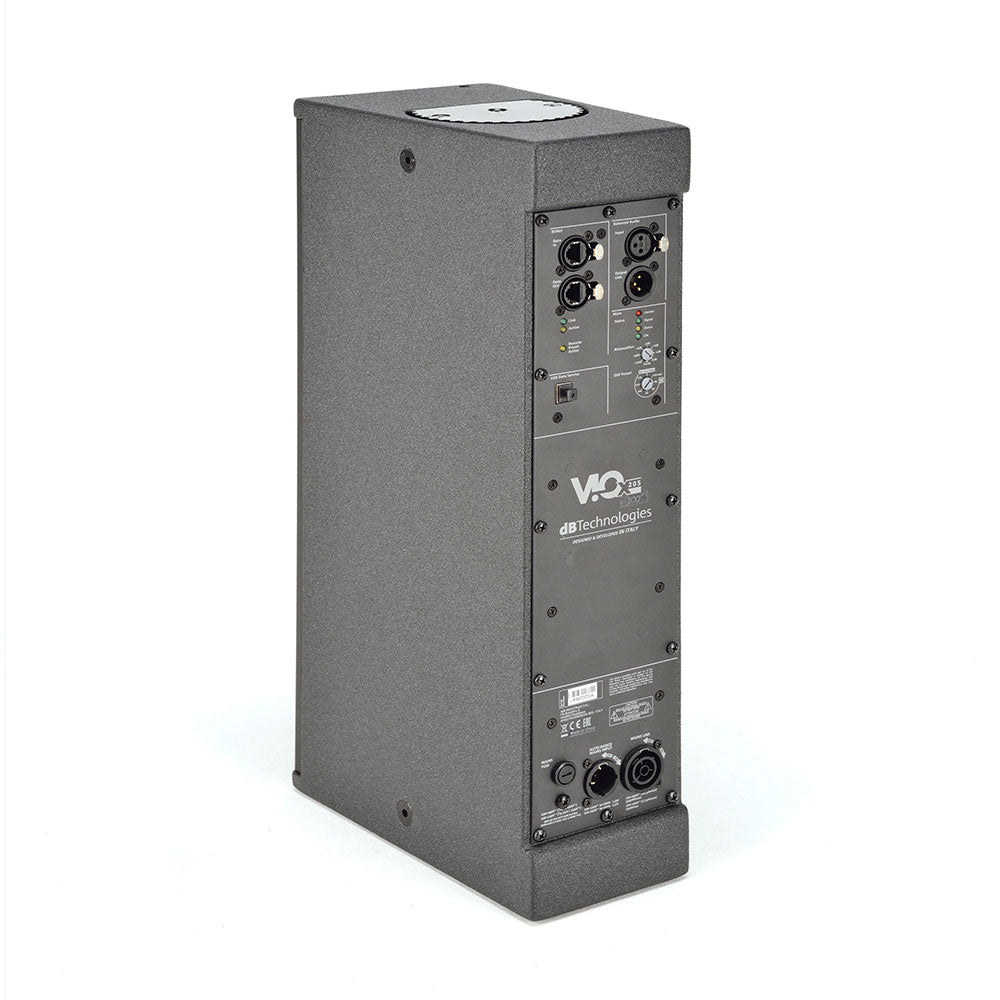

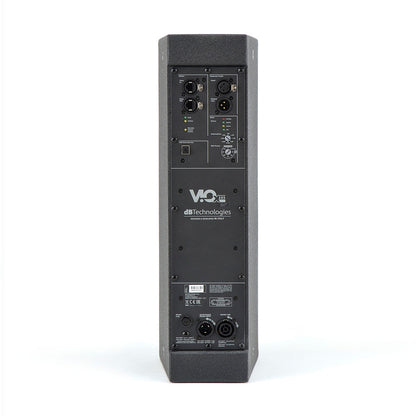

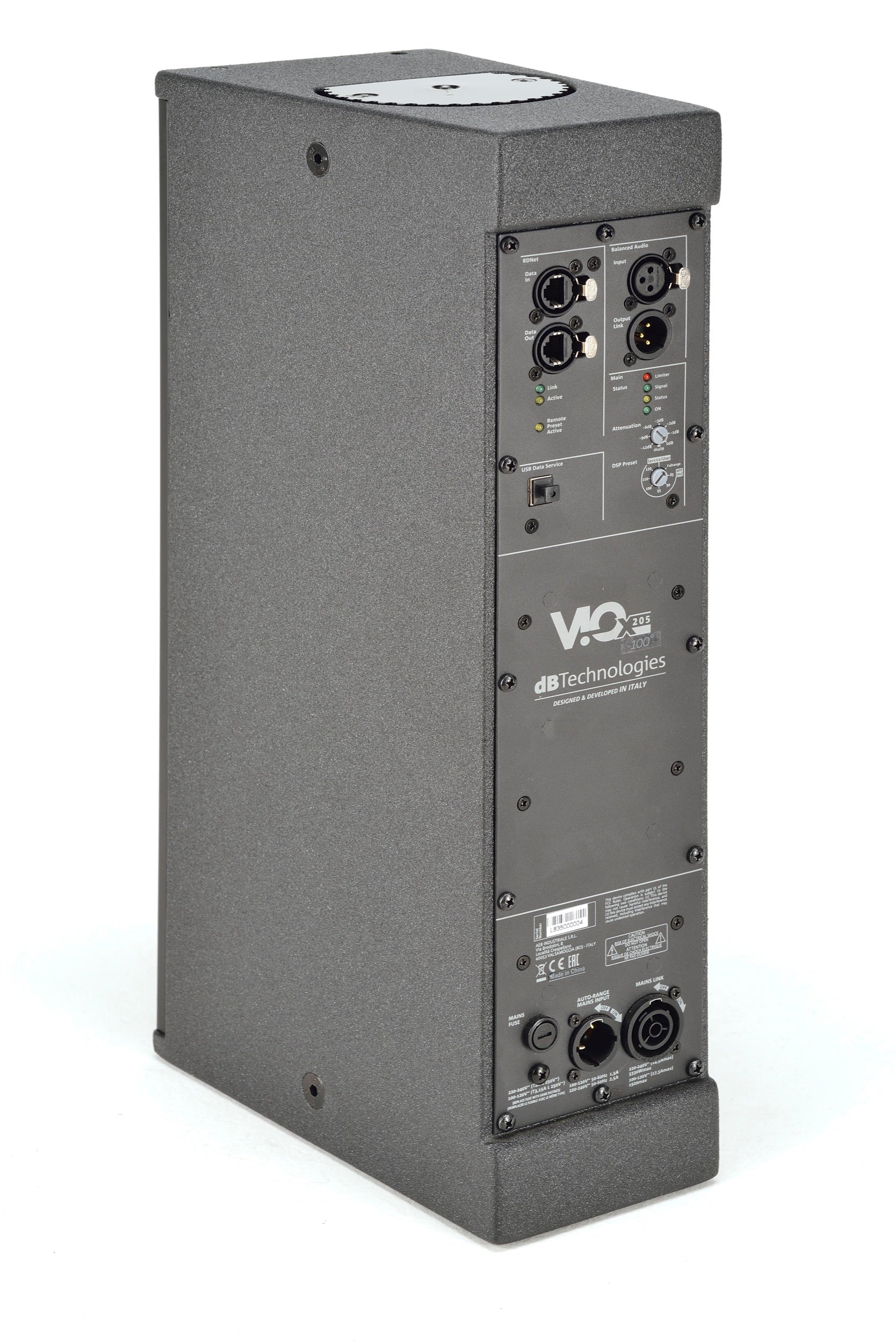

Input
Signal Input
1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output
1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket
1x PowerCON TRUE1 In 1x PowerCON TRUE1 Out
Controls
1x Rotary Encoder (8x EQ presets) 1x Input Attenuation Rotary Switch 1x On LED 1x Status LED 1x Signal LED 1x Limiter LED
