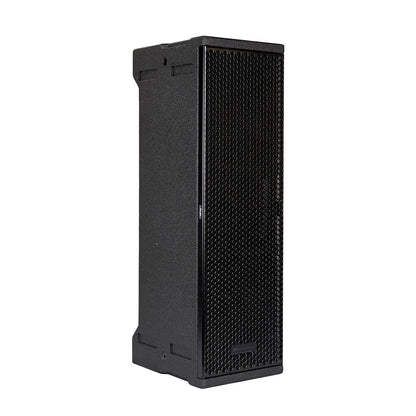

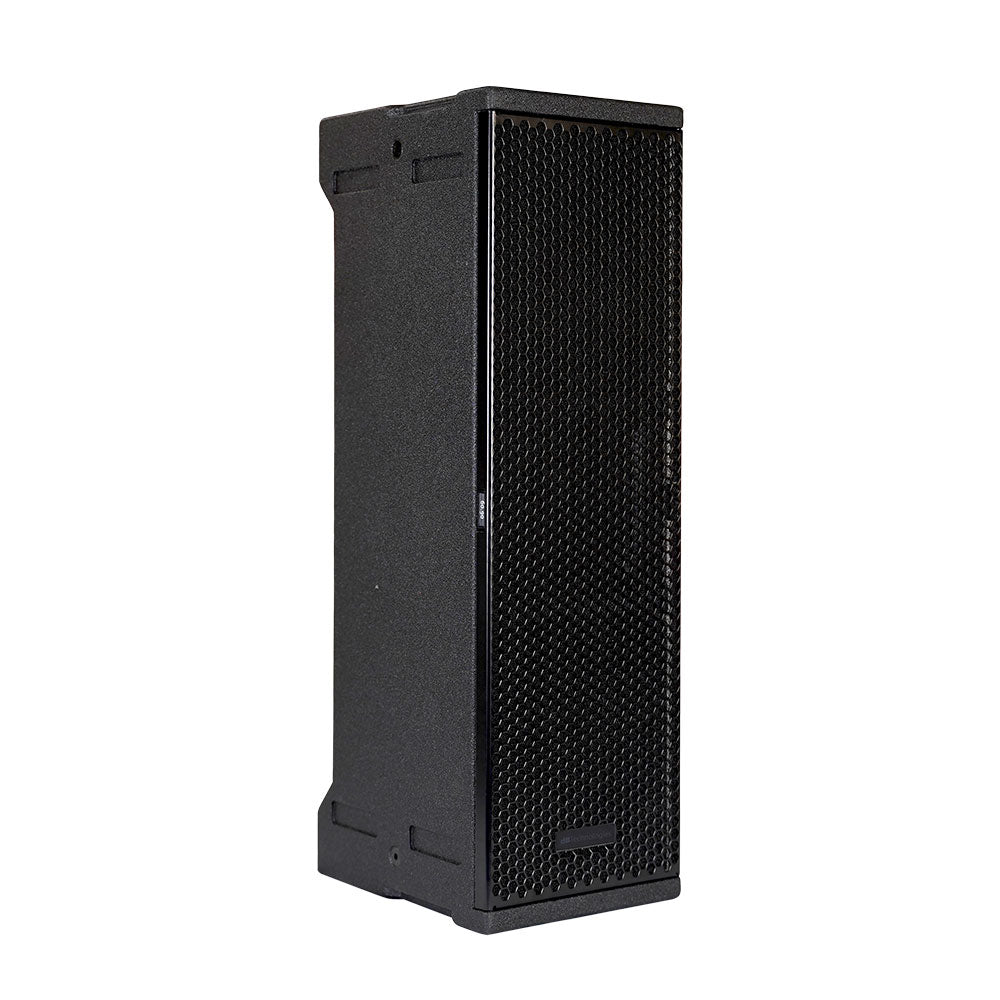

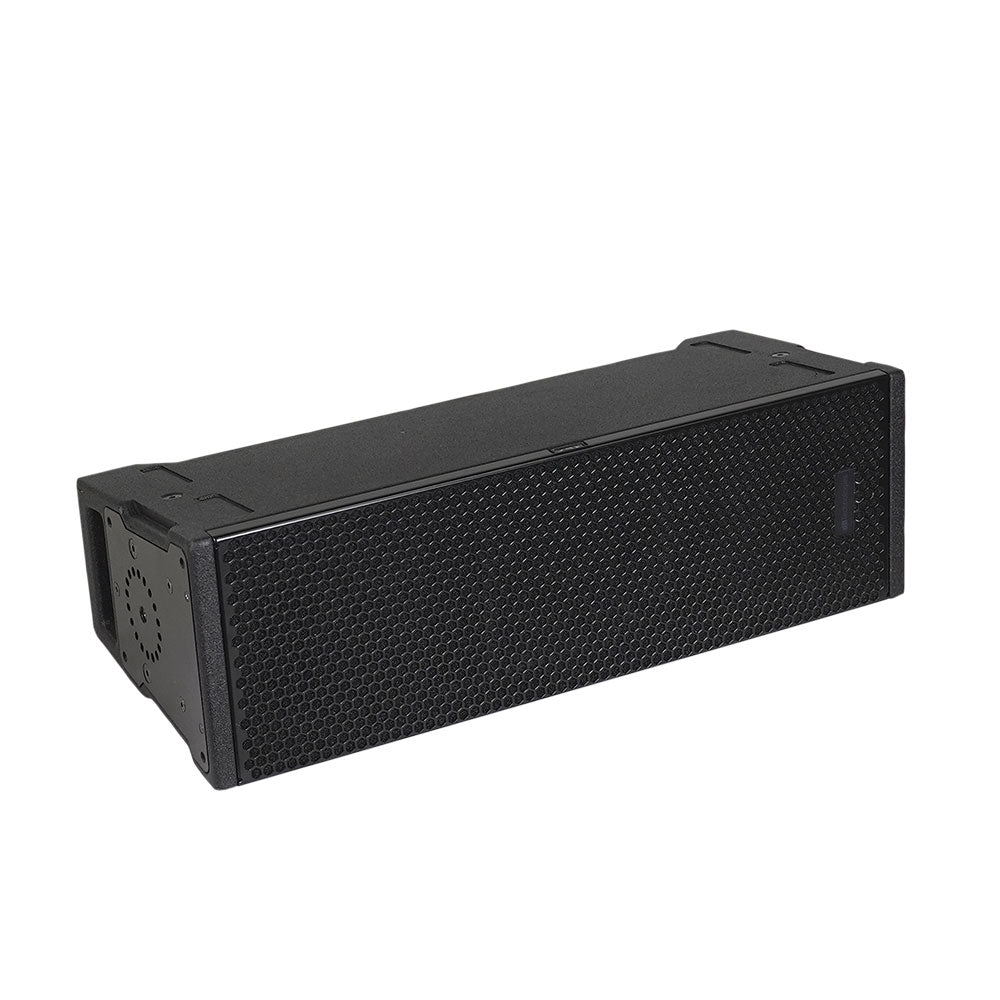

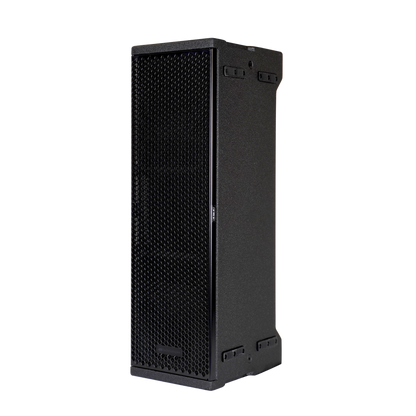

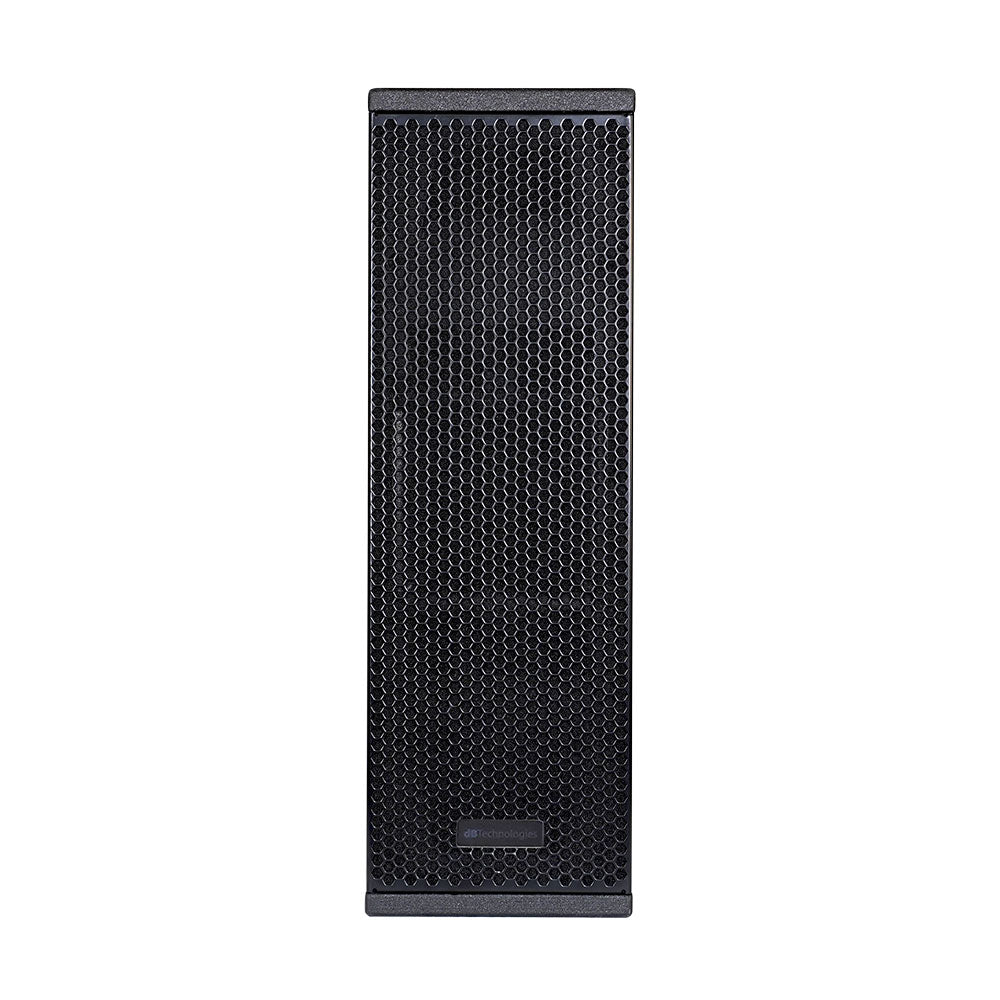

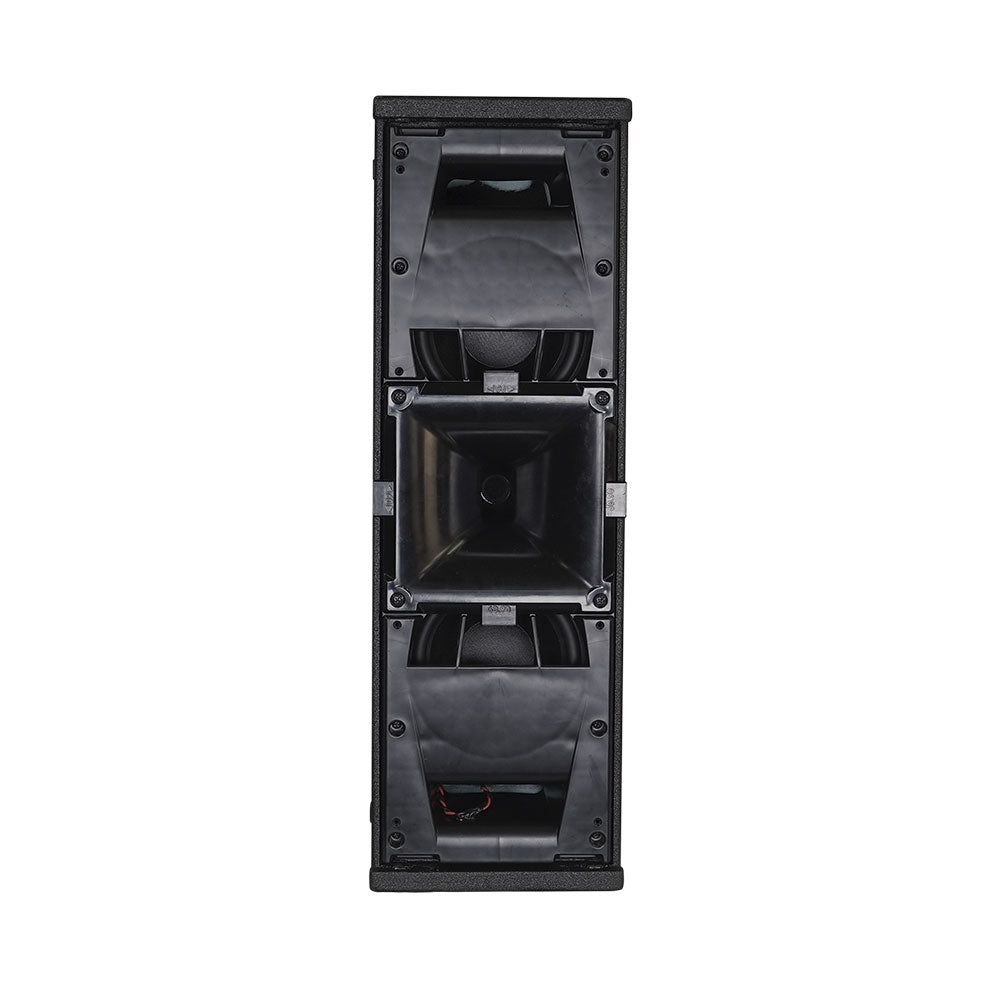

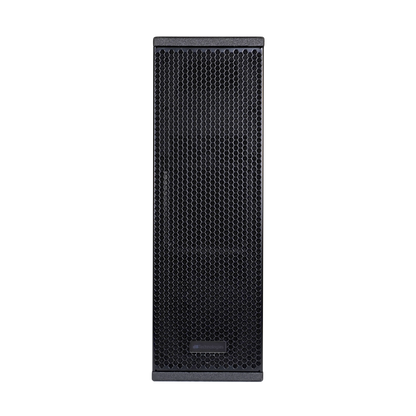

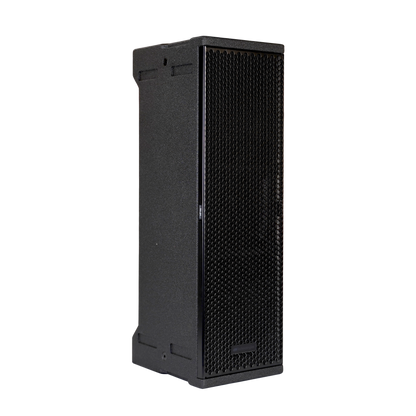

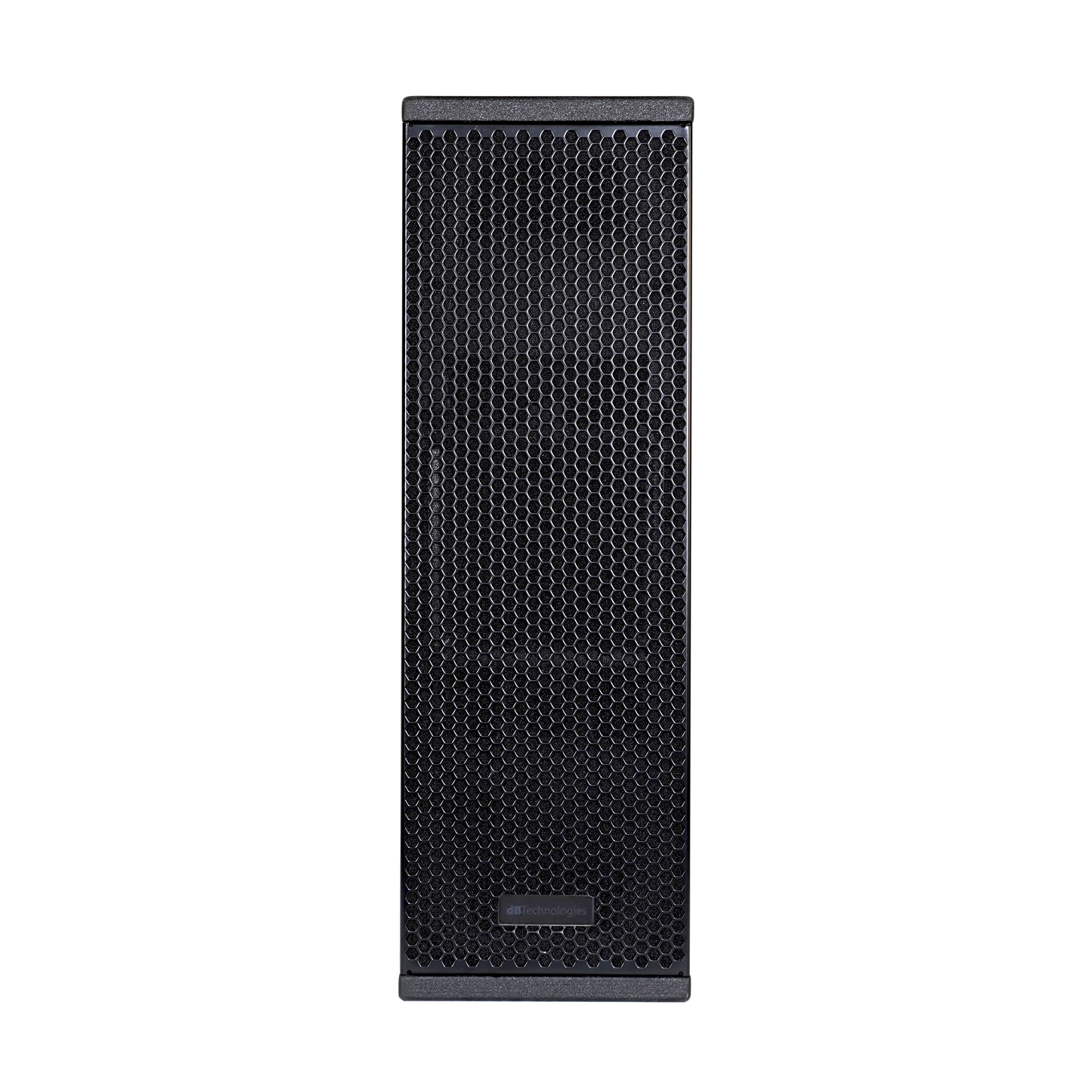

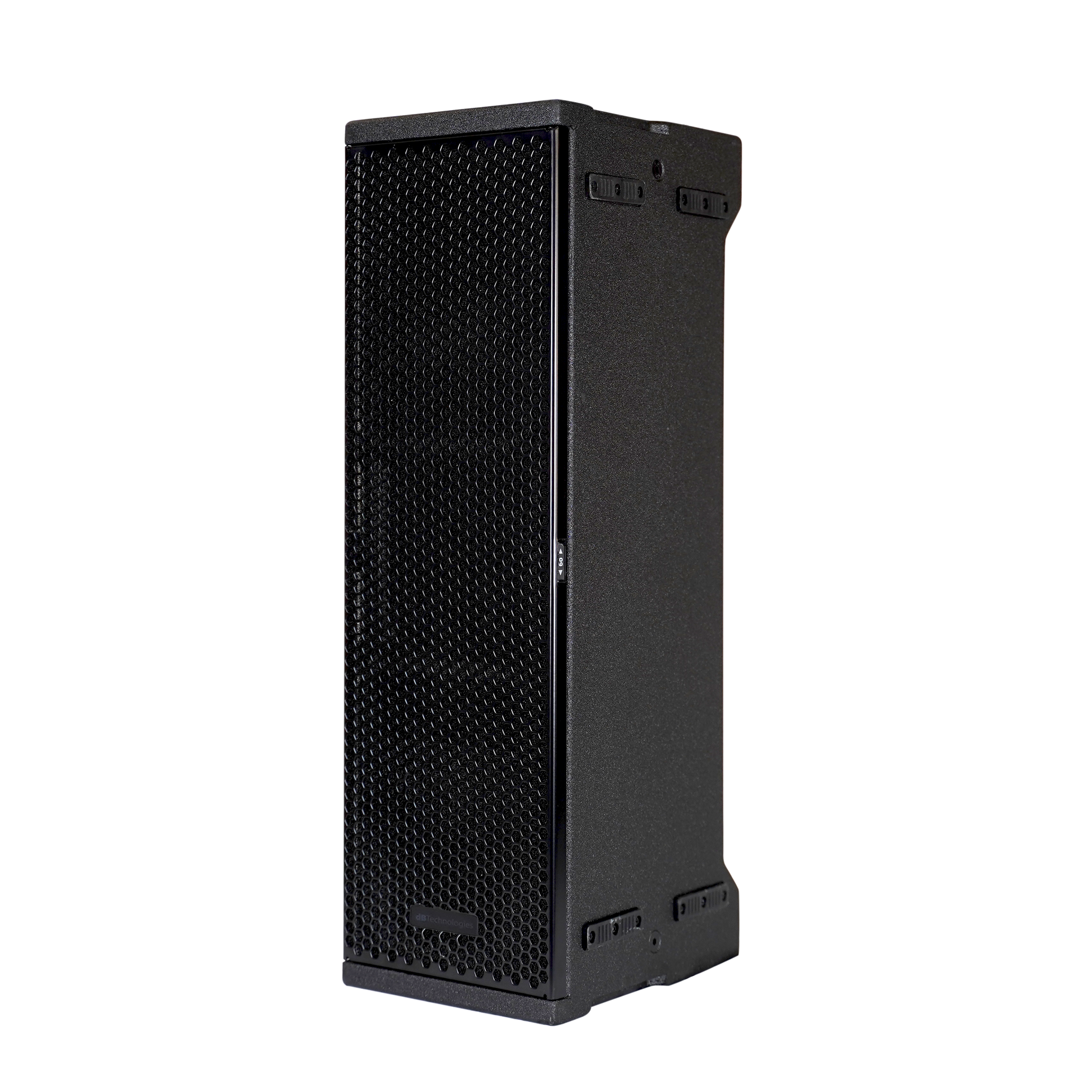

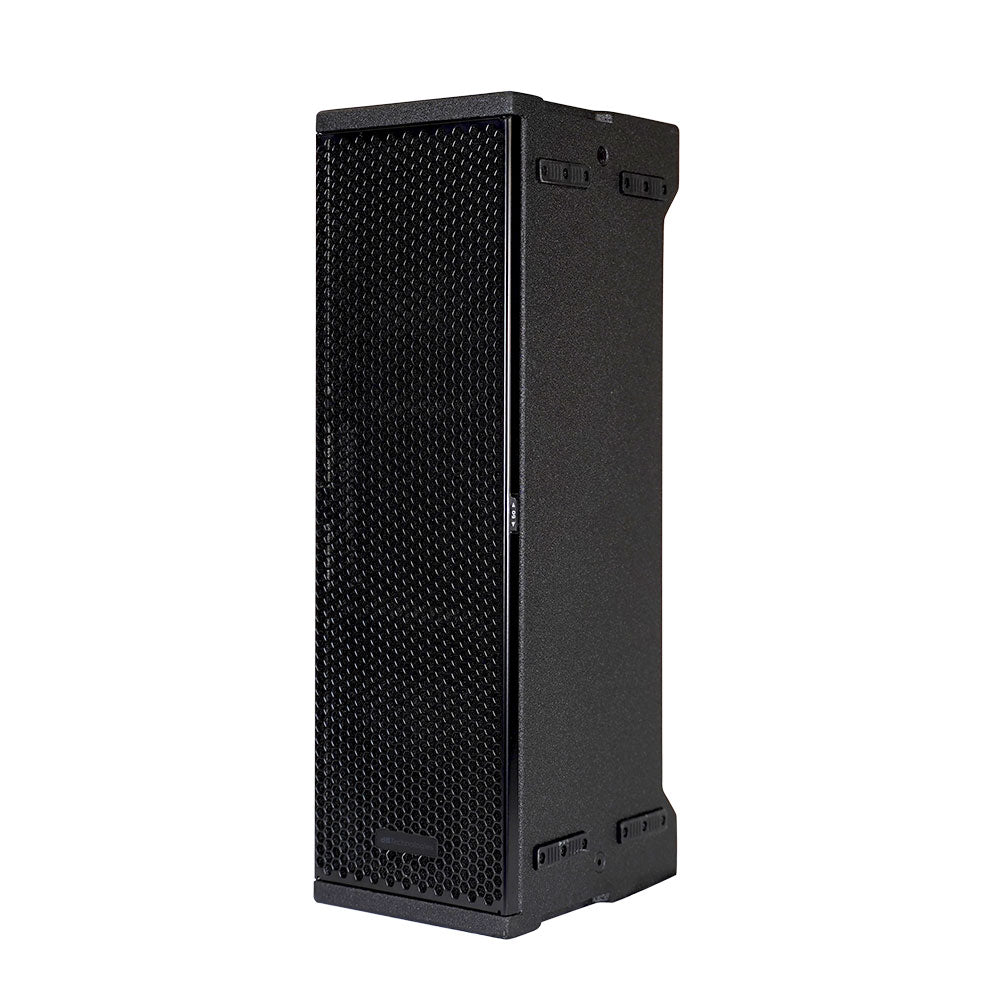

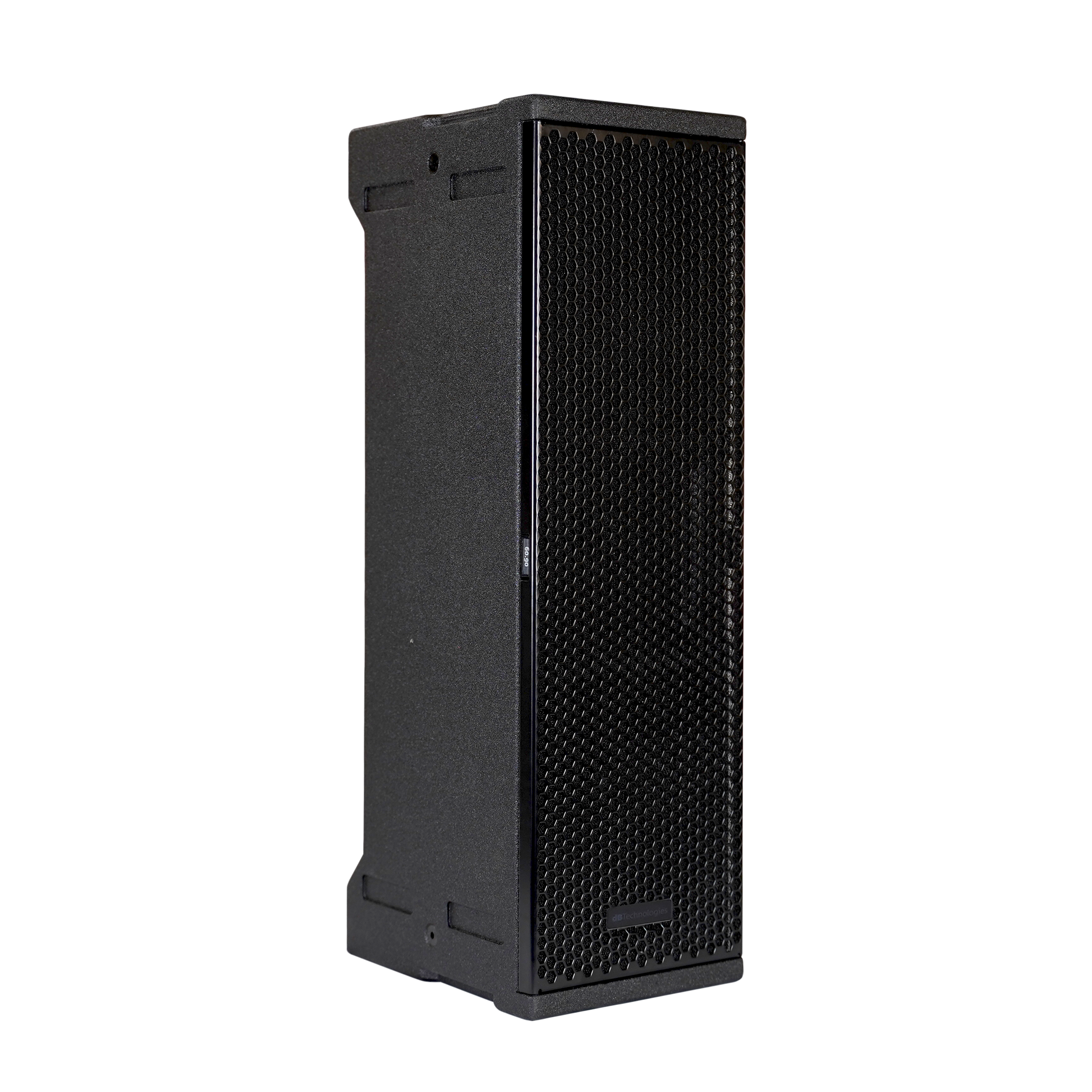

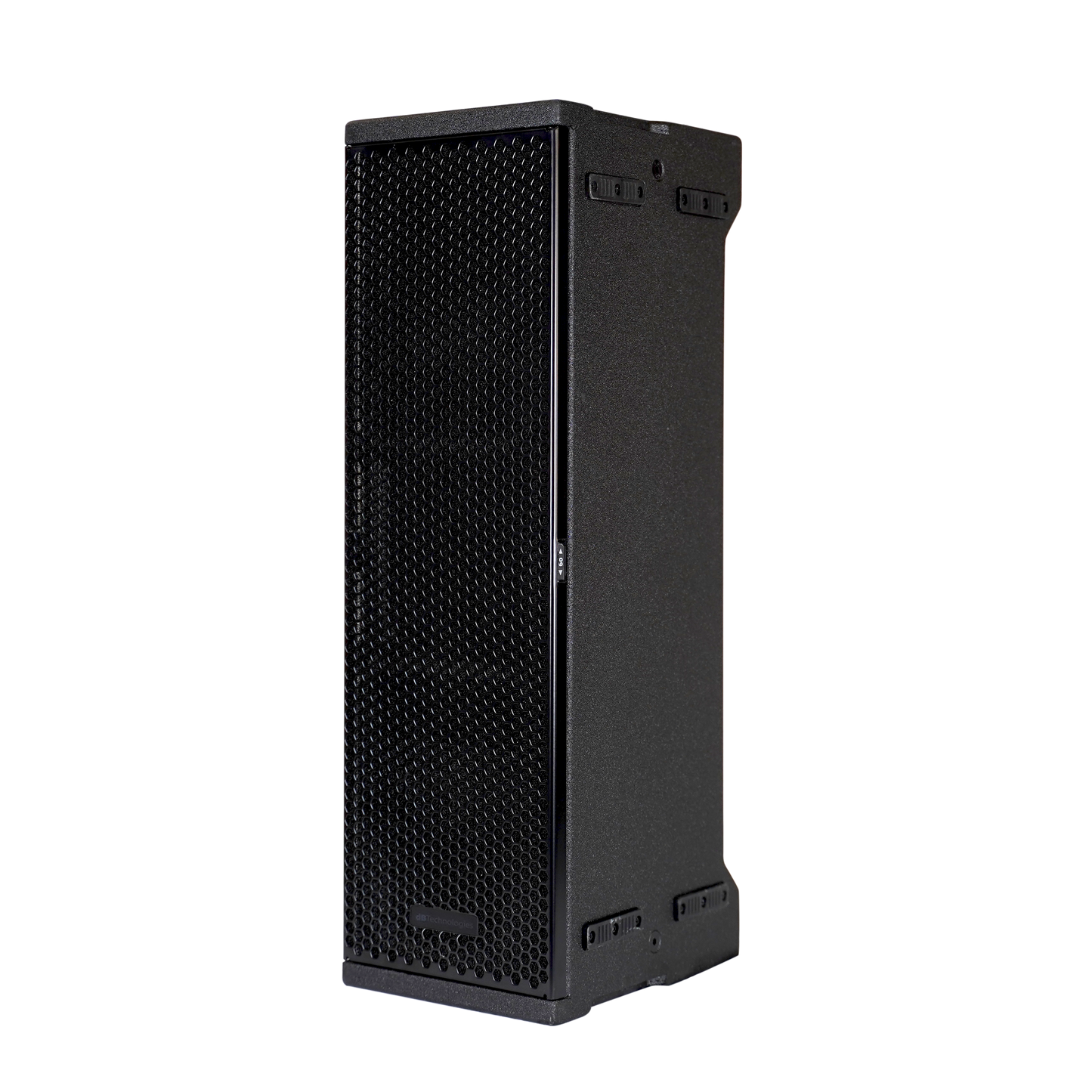

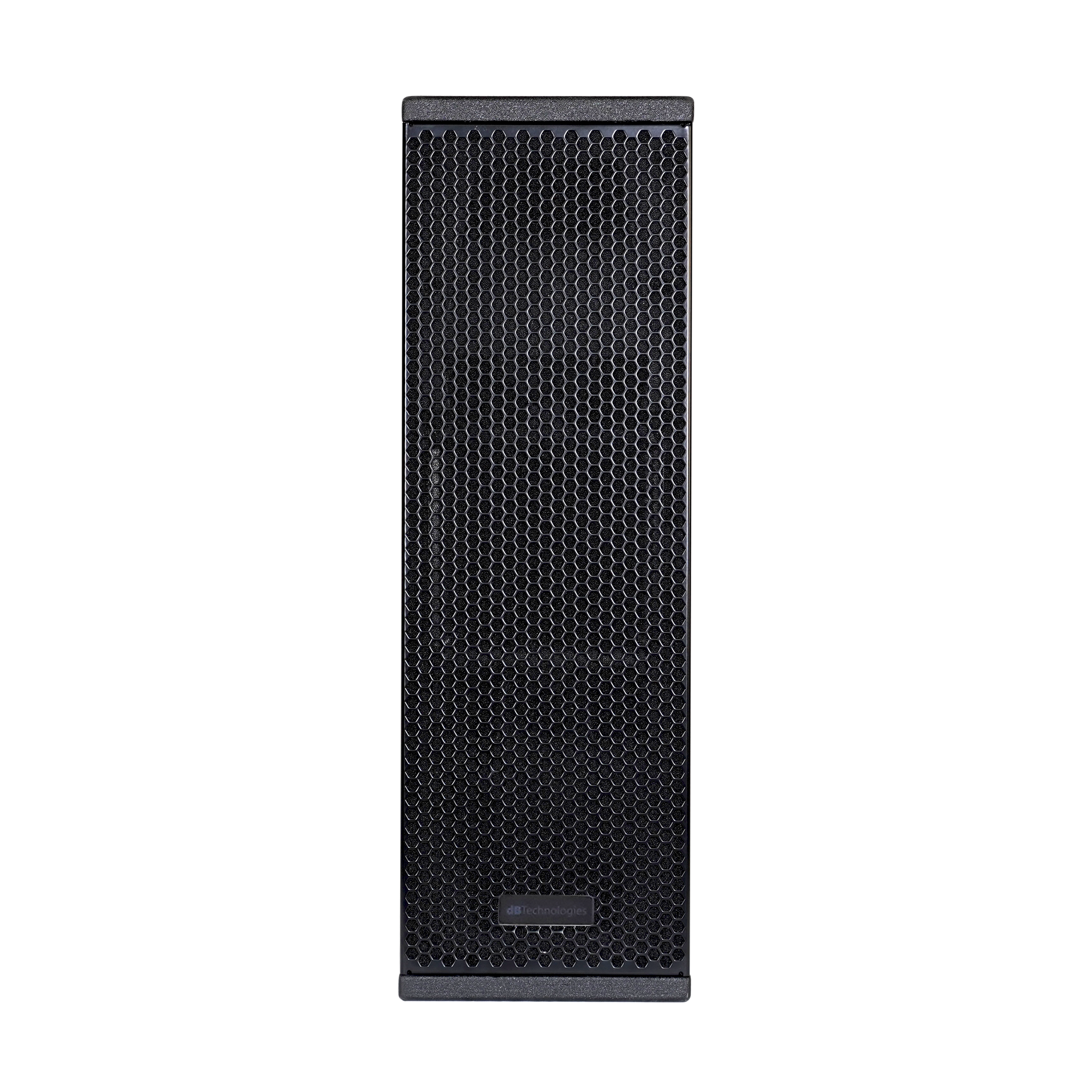

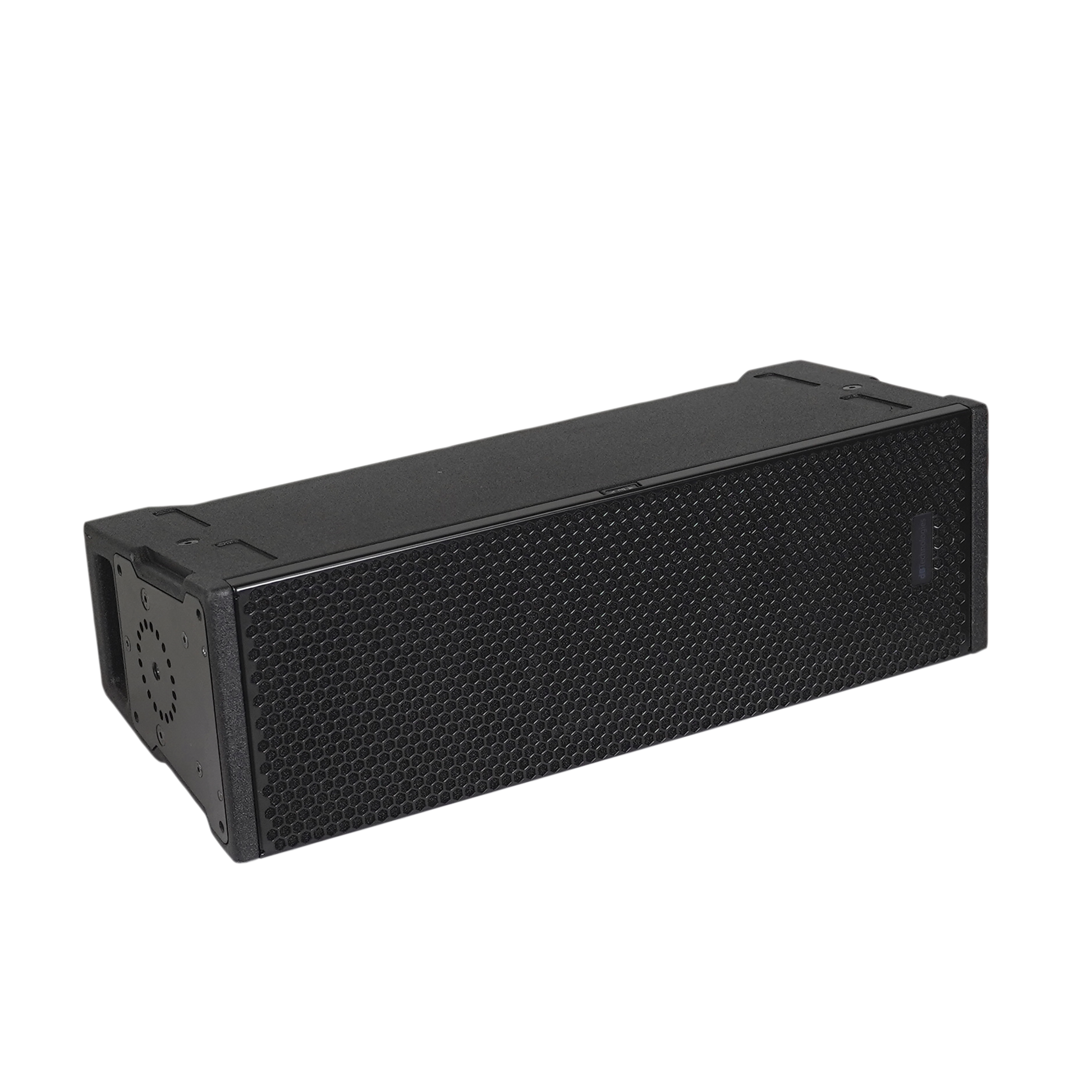

VIO X206 is an ultra-compact active professional speaker that delivers sound pressure and linear response to the highest level. Available in 2 versions with a standard 90x60° coverage or a 100x15" dispersion pattern wich basically turns the full range speaker into a line array module.
Technical Specifications
Technical Data
Speaker Type
2 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB]
66 - 19.500 Hz / 66 - 18.000 Hz [VIO X206-100]
Frequency Response [-6dB]
70 - 18.000 Hz / 70 - 17.500 Hz [VIO X206-100]
Max SPL
131 dB

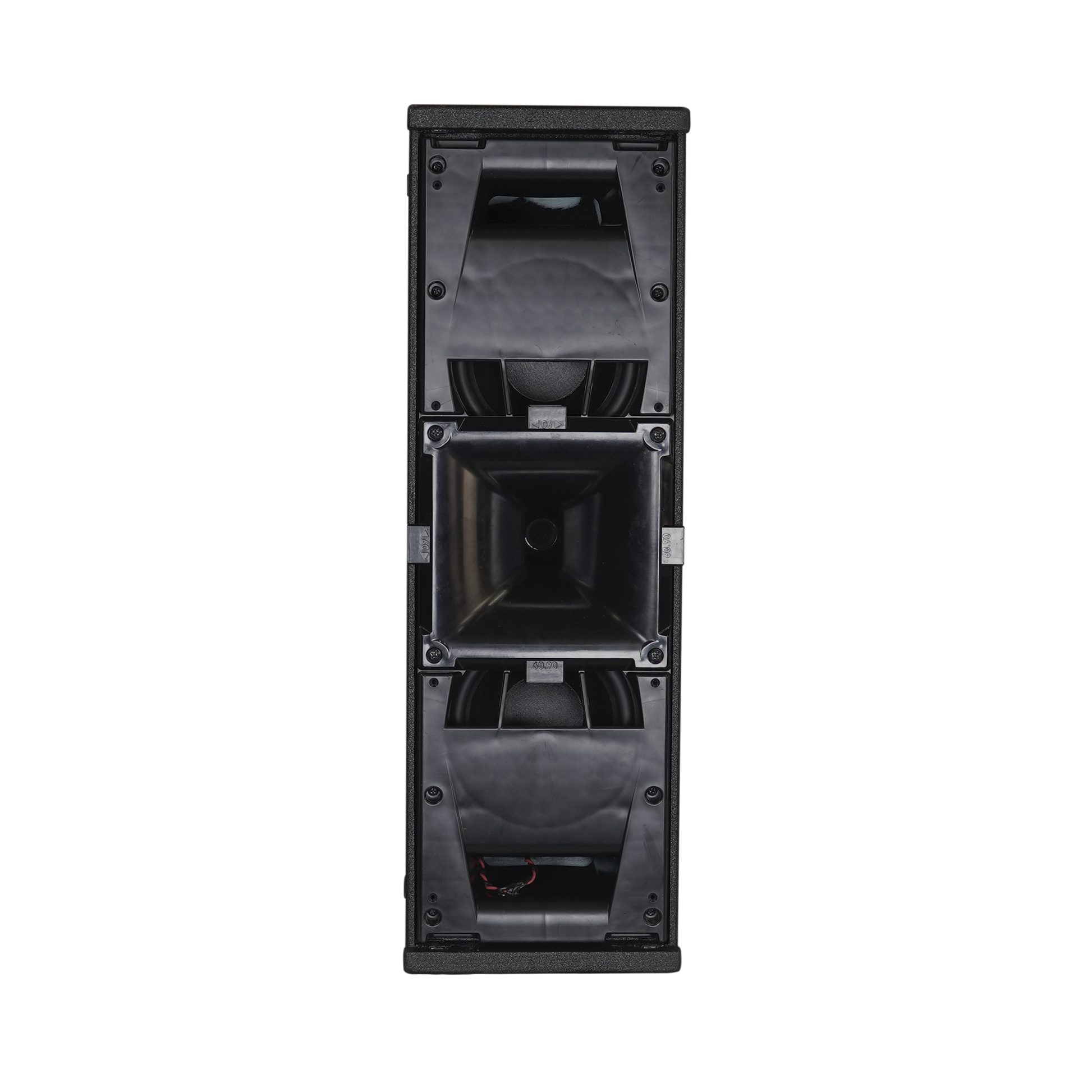

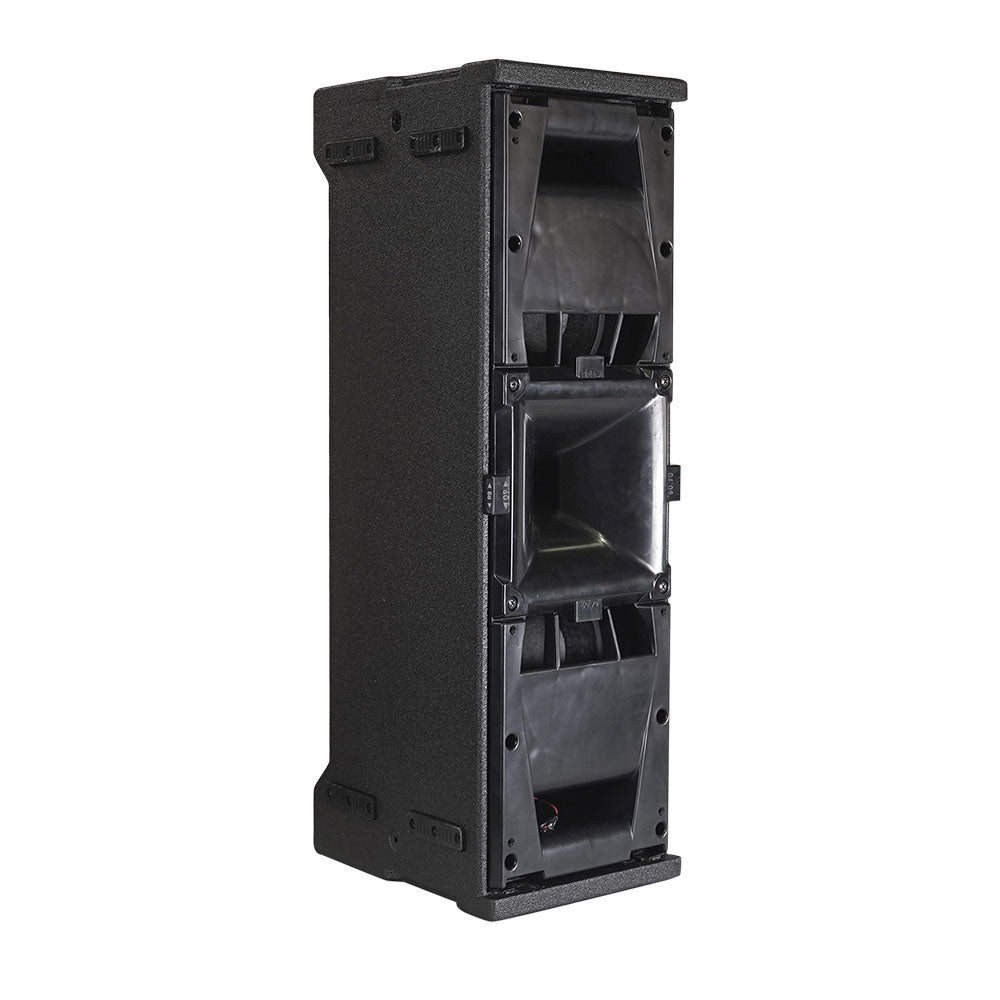

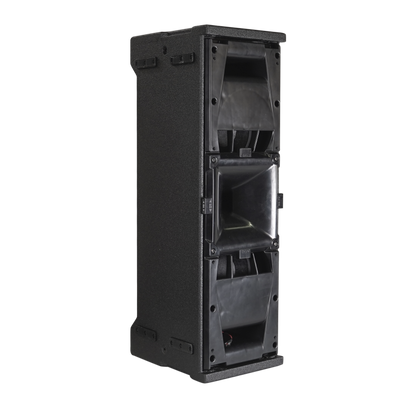

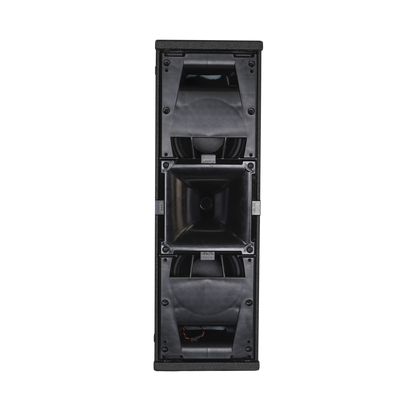

HF
1x 1”, 1.75 v.c.
LF
2x 6.5”, 1.75" v.c
VIO X206 Directivity
60° x 90° [rotatable]

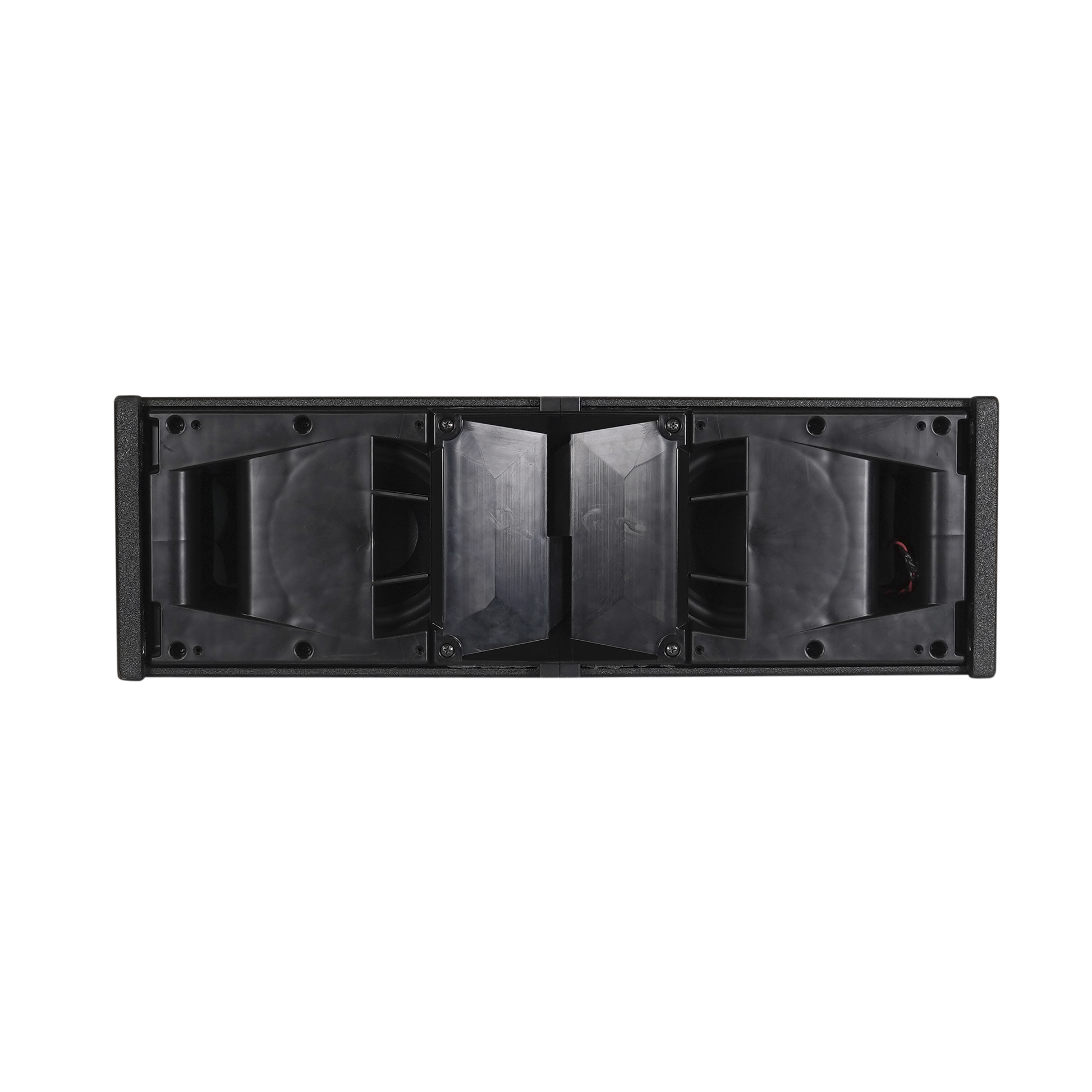

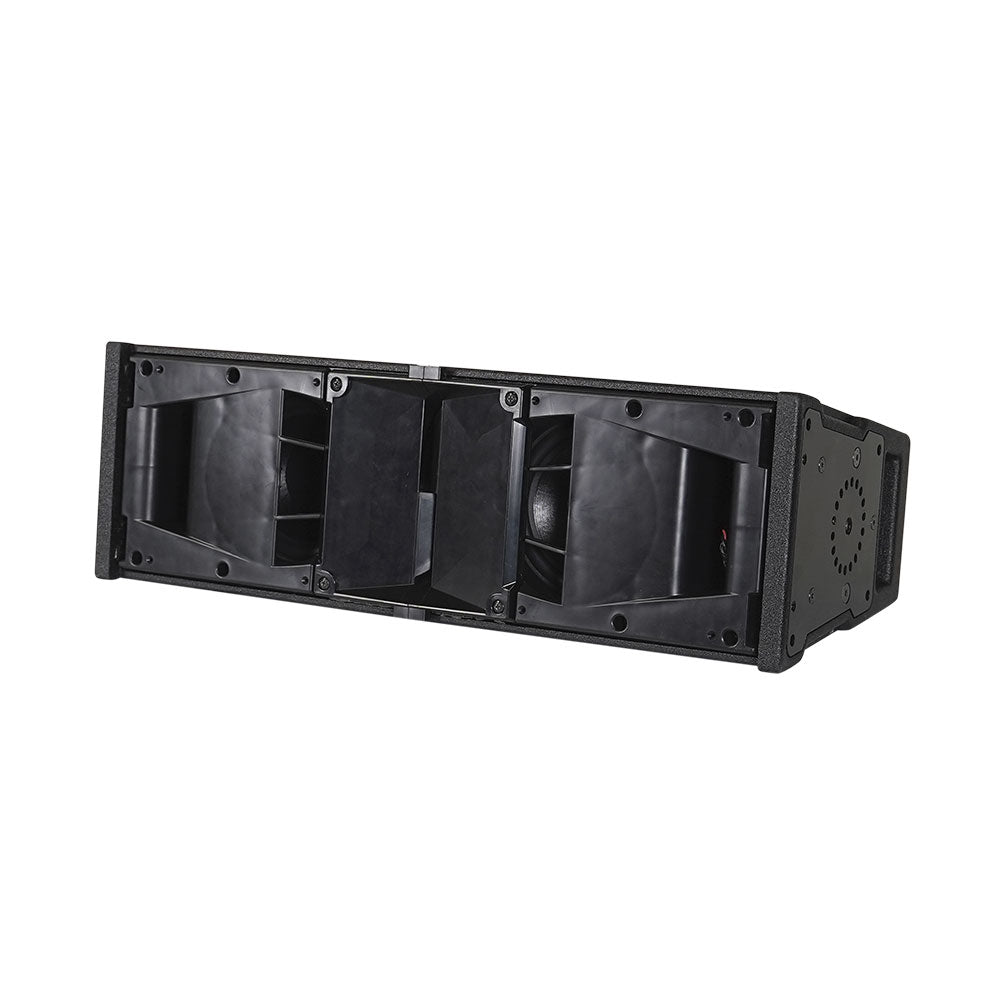

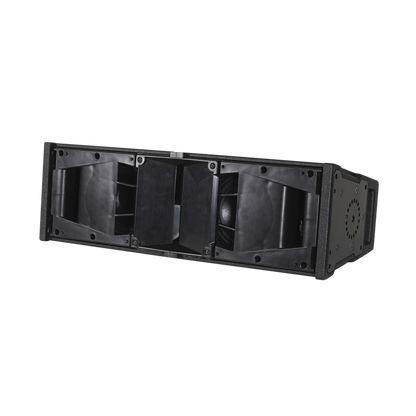

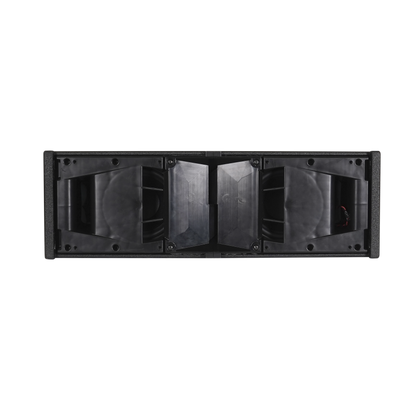

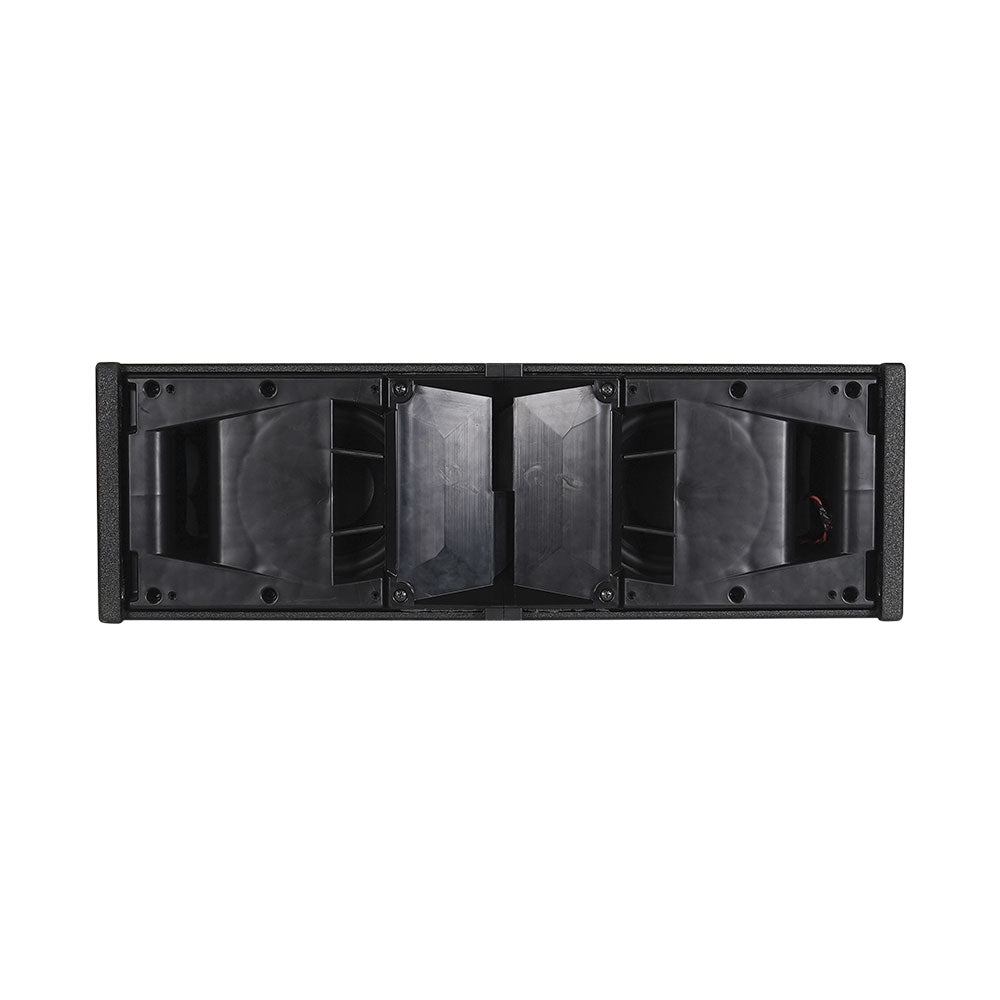

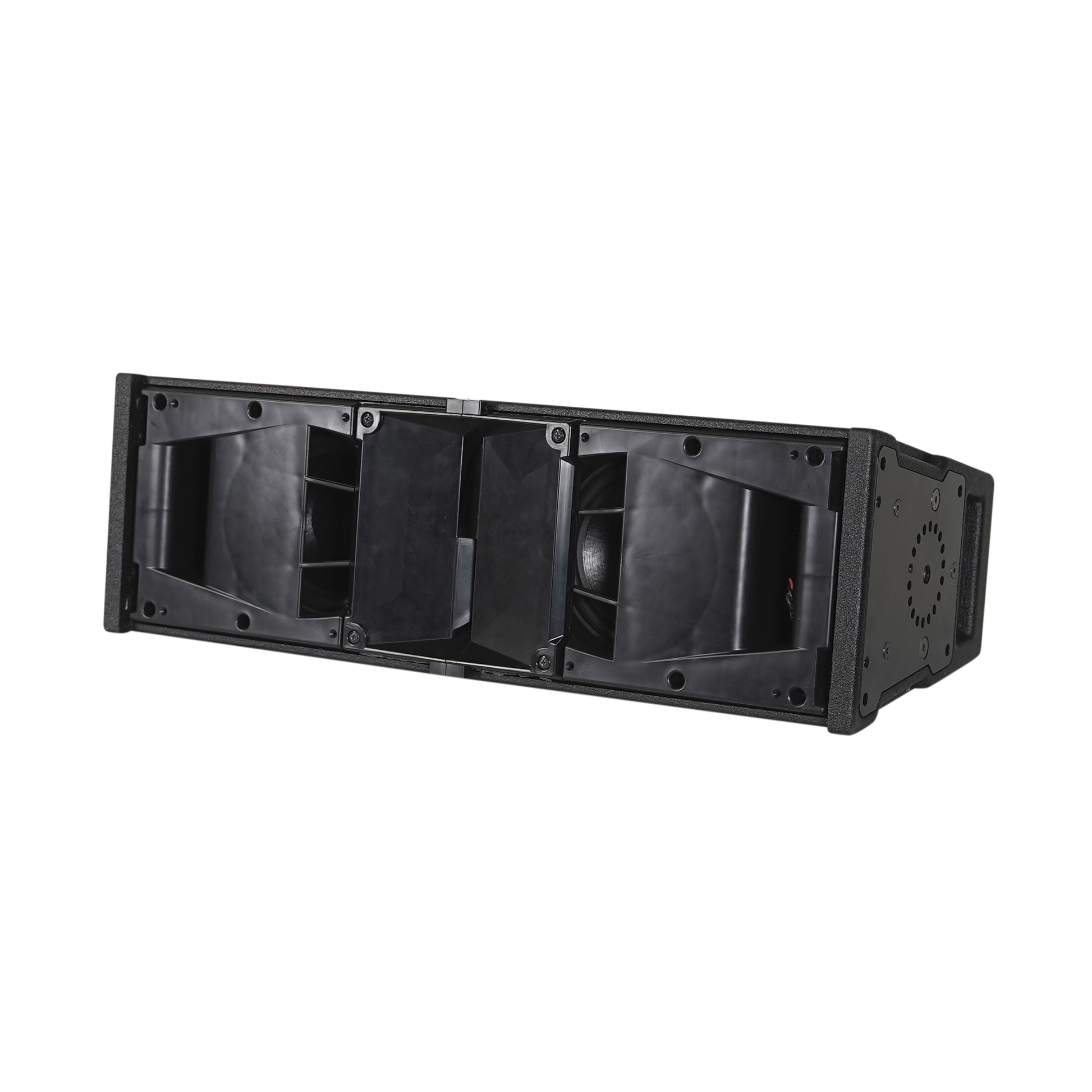

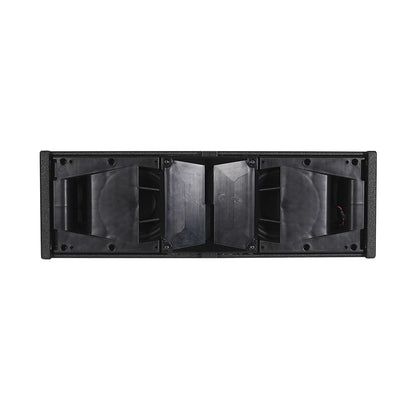

VIO X206-100 Directivity
100° x 15° [H x V]
Amplifier
Amplifier
900 W RMS Class-D Digipro® G3
Cooling
Convection
Power Supply
Auto-range SMPS
Processor
Controller
DSP 32 bit
AD/DA Converter
24 bit/96 kHz
Limiter
Peak, RMS, Thermal
Processing
FIR Linear Phase Filters

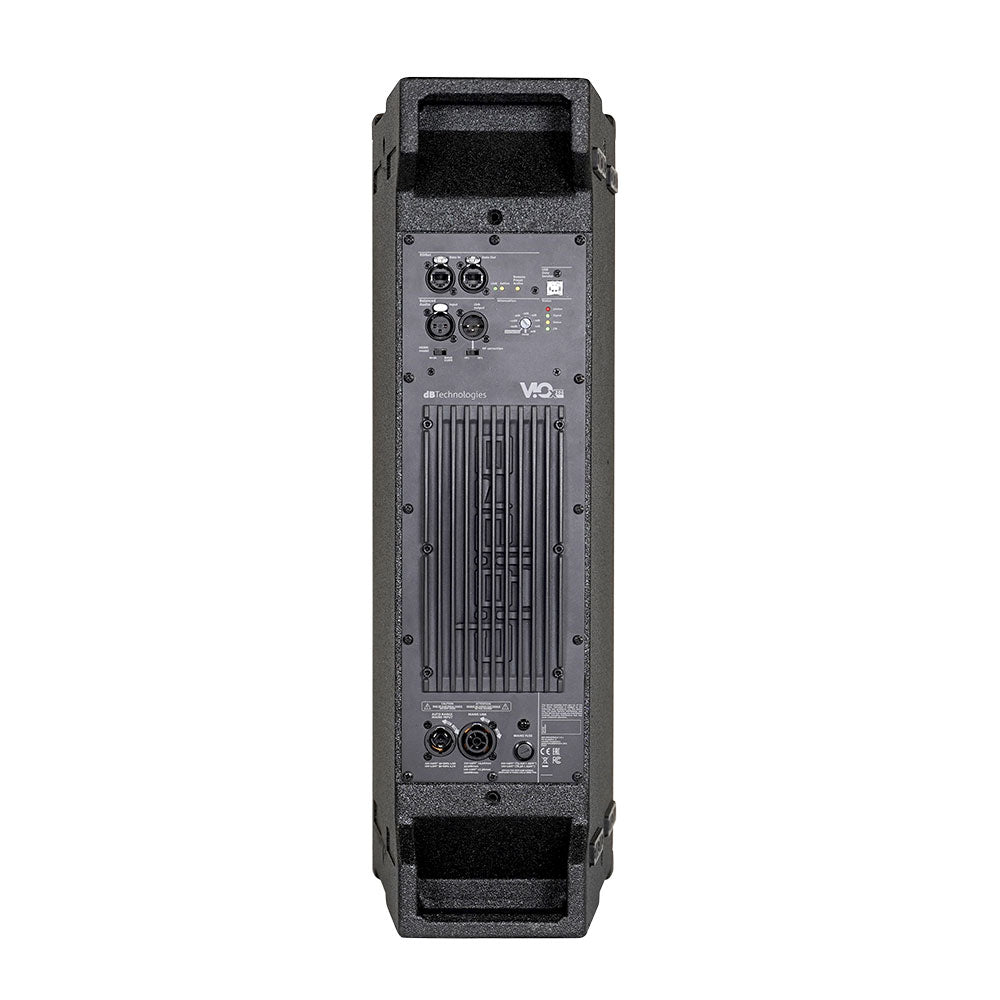

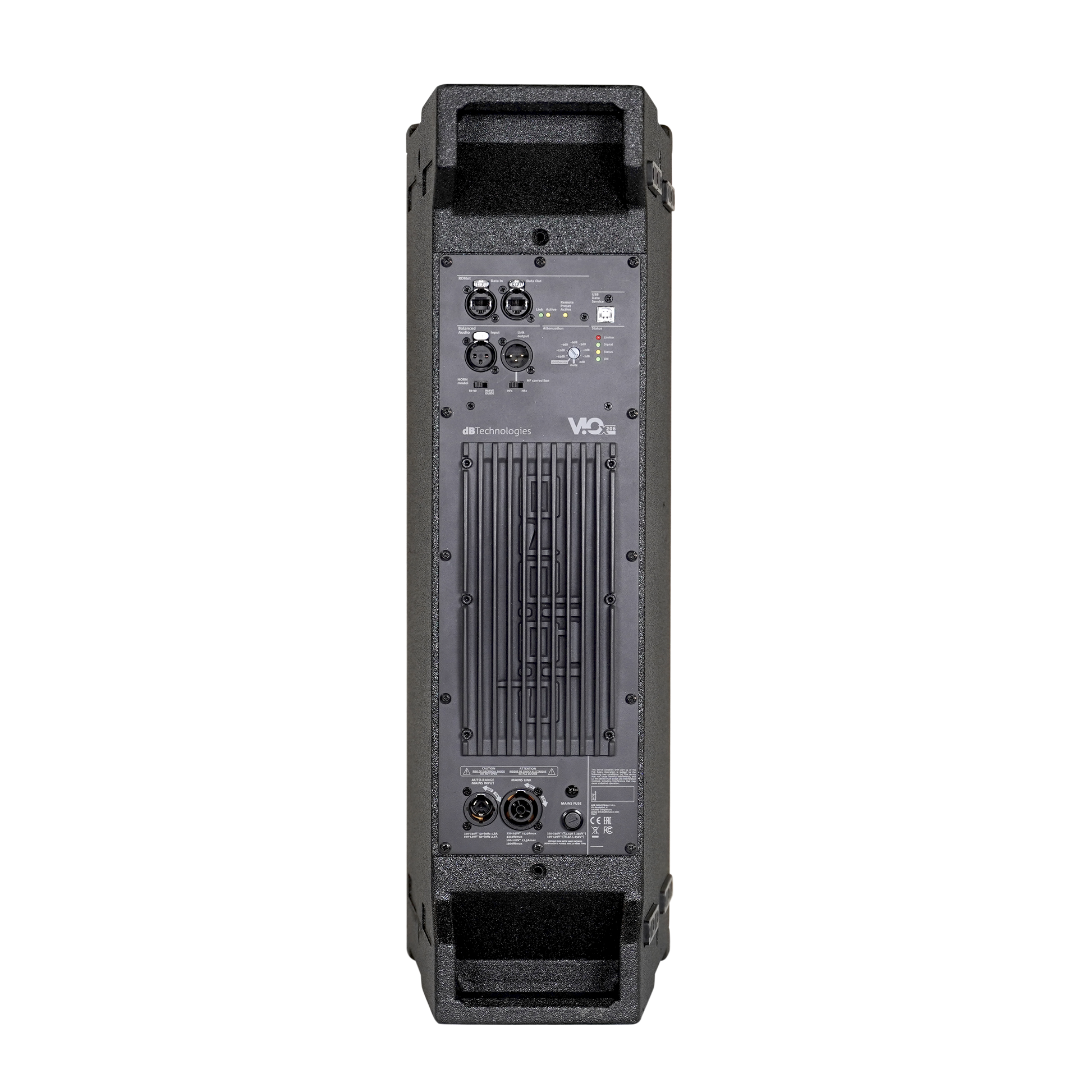

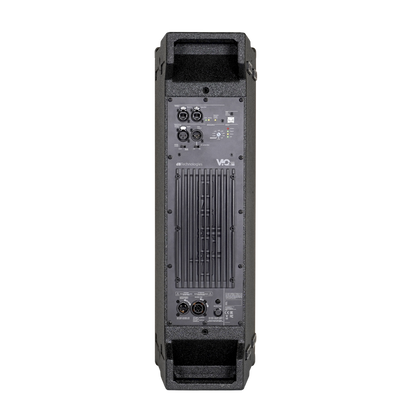

Input
Signal Input
1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output
1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket
1x PowerCON TRUE1 In 1x PowerCON TRUE1 Out
Controls
1x input Sensitivity Rotary Encoder (10x presets) 1x Horn Model Selection Switch 1x On LED 1x Status LED 1x Signal LED 1x Limiter LED 3x RDNet Status LED
