YORKVILLE EL12M Elite 12” Powered Stage Monitor

The EL12M is the first dedicated powered stage monitor from Yorkville Sound.

It delivers 1200 watts of peak power (600 watts program) through a 12" coaxial speaker and 1" high-frequency driver in a stage-ready enclosure that weighs less than 40 pounds.

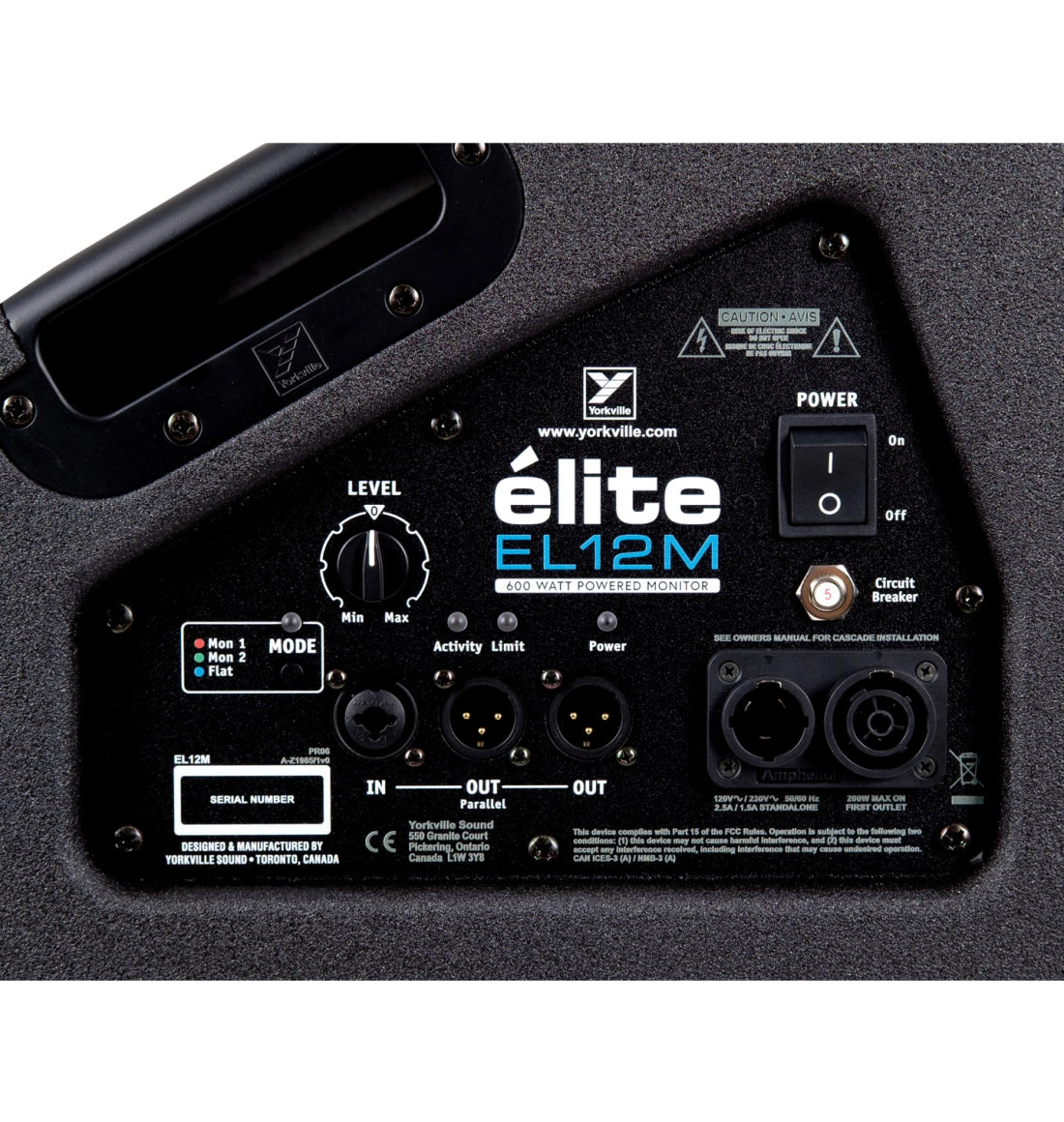

Its two selectable monitor modes are voiced for vocals, and its flat mode is ideal for instrument sources like synthesizers, electronic drum kits, or for use as an FRFR solution for amp modelers. It also features an XLR / 1/4" input jack, two XLR outputs, and powerCON® TRUE1 input and output connectors, so it integrates easily into any PA system.

Portable, powerful, and built like a tank, the EL12M was carefully designed for professional performance on stage.
Features
1200 W Peak Power (600 W Program)
12" Coaxial Woofer with 2.5" Voice Coil
1" HF Driver with 1.75" Voice Coil
3 Voicing Modes
Onboard Limiter
Combi-Jack XLR / 1/4" Input and 2 XLR Outputs
powerCON ® TRUE1 Input and Output
15mm Birch Plywood Construction
Made in Canada


Specifications
System Type    Powered Monitor
Power Rating    1200 W Peak (600 W Program)
Max SPL    132 dB Peak (120 dB Continuous)
Frequency Response    60 Hz - 20 kHz (+/- 3 dB)
Dispersion (H x V)    60° x 60°
Crossover Frequency    1500 Hz
HF Driver(s)    1" with 1.75" Voice Coil
LF Driver(s)    12" Co-axial Woofer with 2.5" Voice Coil
Power Cable    powerCON® TRUE1 Connectors (Input / Output)
Power Consumption (typ/max)    2.5A, 6A
Inputs    1x Combo-jack (XLR / 1/4”)
Outputs    2x XLR
Level Controls    Yes
EQ Controls    Mon 1, Mon 2, and Flat Modes
LED Indicators    Power, Activity, Protection, Modes
Bar Handles    2x Side, 1x Bottom
Pole Mount Adapter    No
Enclosure Materials    15mm Birch Plywood
Grille    Powder-Coated Steel
Covering / Finish    Textured Paint
Dimensions (DWH)    17" x 16.3" x 12.2" (43.2 cm x 33.8 cm x 31 cm)
Weight    38.7 lbs / 17.6 kg
