Providing 1000 watts with efficient speaker components, the YXL10SP provides an affordable solution to add bass to your live sound without overwhelming the mix in smaller venues.
Features
- 1000 Watts (Peak) 500 Watts (Program)
- 10-inch woofer with 2.4-inch voice coil
- DSP processing with component protection Master Level control with Activity indicator
- 3 Performance modes, Punch, Smooth and Deep Recessed control panel
Specifications
| System Type |
Powered Sub Woofer |
| Active or Passive |
Active |
| Power Rating (Watts) |
500 Watts Program (1000 Watts Peak) |
| Max SPL (dB) |
125dB Peak |
| Frequency Response (Hz +/- 3dB) |
50 - 100 (Hz +/-3dB) |
| LF Driver(s) |
10-inch (2.4-inch voice coil) |
| LF Power Rating(Watts) |
500 Watts Program (1000 Watts Peak) |
| LF Amplifier Type |
Class D |
| Cooling Scheme |
Speed controlled fan |
| Power Cable |
Yes |
| Power Switch |
Yes |

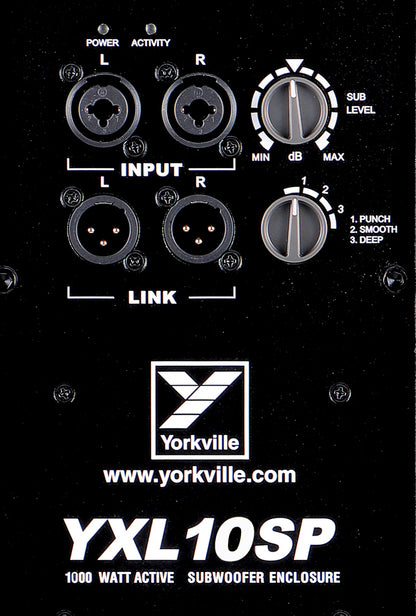

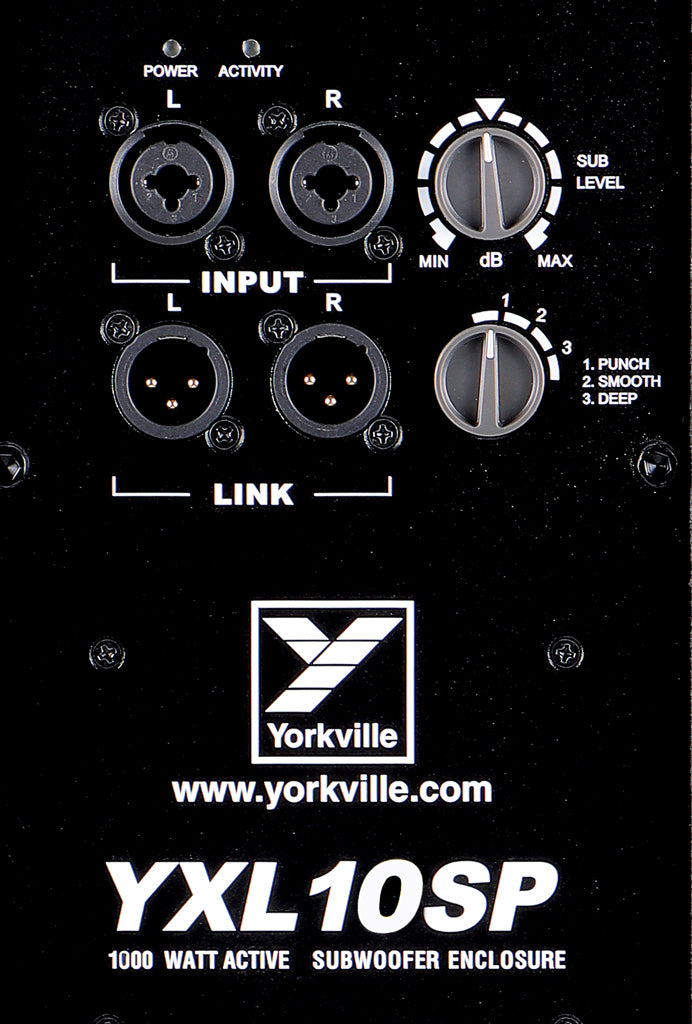

| Inputs |
2 x Main IN XLR Female/ 1/4" Combi, 2 x LINK XLR Male |
| Level Controls |
Master |
| EQ Controls |
Push, Smooth, Deep |
| Limiter |
Multiband excursion, RMS, Rail |
| Feet |
Rubber |
| Bar Handles |
1 x Top |
| Enclosure Materials |
12mm Plywood, Metal grille |
| Grille |
Powder Coated Steel with Grille Cloth |
| Other Details |
1 Stand Adapter (Side)
Enclosure Finish: Textured Latex Paint |
| Dimensions (DWH xbackW, inches) |
18.25 x 12 x 18.75 |
| Dimensions (DWH xbackW, cm) |
47 x 31 x 48 |
| Weight (lbs/kg) |
34.5/15.6 |
